| General Information | |
| Category | Holiday Detector |

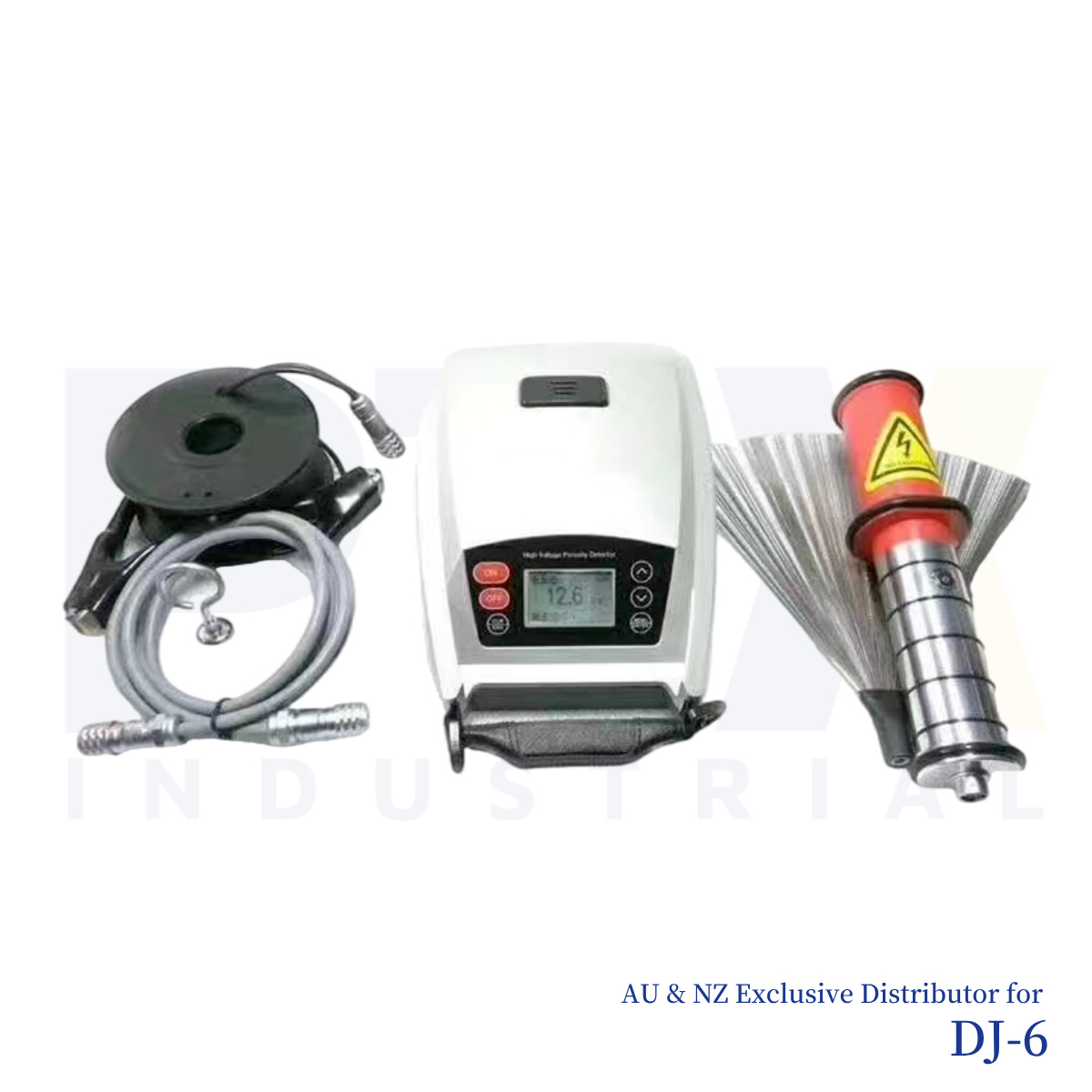

| Model | DJ-6 |
| Manufacturer (OEM) | ▪ The updated DJ-6 holiday detector is designed for rapid inspection of non-conductive coatings and linings ▪ Detects pinholes, porosity, and other defects using pulsed voltage technology ▪ Widely used in petrochemical industries, pipe manufacturing, plastic fabrication, and enamel applications ▪ An essential tool for assessing the quality of anti-corrosion coatings on metal surfaces |
| Technical Specification | |
| Test Voltage Range | 0.6–31.5 kV (adjustable) |
| Thickness Detection Range | 0.05–10 mm |
| High Voltage Output | Pulse |
| Voltage Display | 3-digit |
| Resolution | 0.1 kV |
| Voltage Accuracy | ± (0.1 kV + 3%) |
| Max Leak Record | 999 (maximum) |
| Alarm Mode | Headphone, buzzer, and light |
| Shutdown Mode | Auto and manual |
| Power Consumption | ≤ 6 W |
| Dimensions (mm) | 240 × 165 × 85 |
| Battery | 12 V, 4400 mAh |
| Working Time | ≥ 12 hours (at max voltage) |
| Charging Time | Approx. 4.5 hours |
| Adapter Voltage | Input: 220–240 V~; Output: 12.6 V DC, 1 A |
| Probe Wire Length | Approx. 1.5 m |
| Earth Lead Wire | 2 × 5 m (black/black) |
| Fuse | 1 A |

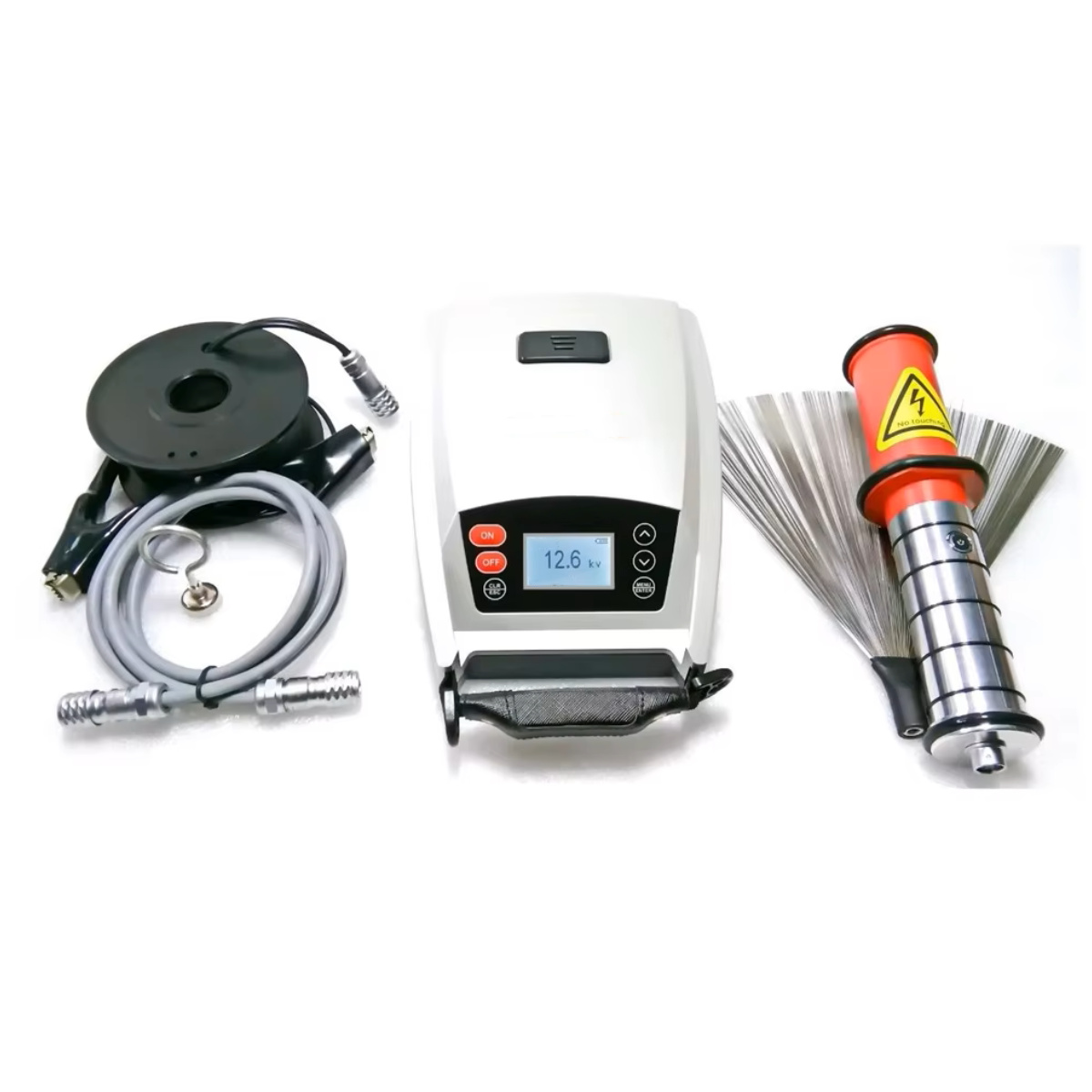

| Standard Delivery | |
| Main Unit | 1 |
| High Voltage Probe | 1 |
| Probe Wire | 2 |
| Brush | 1 |
| Earth Lead Wire | 1 |
| Power Charger | 1 |
| Carry Belt | 2 |
| Magnetic Earthing Rod | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
