| General Information | |
| Category | Portable Leeb Hardness Tester |

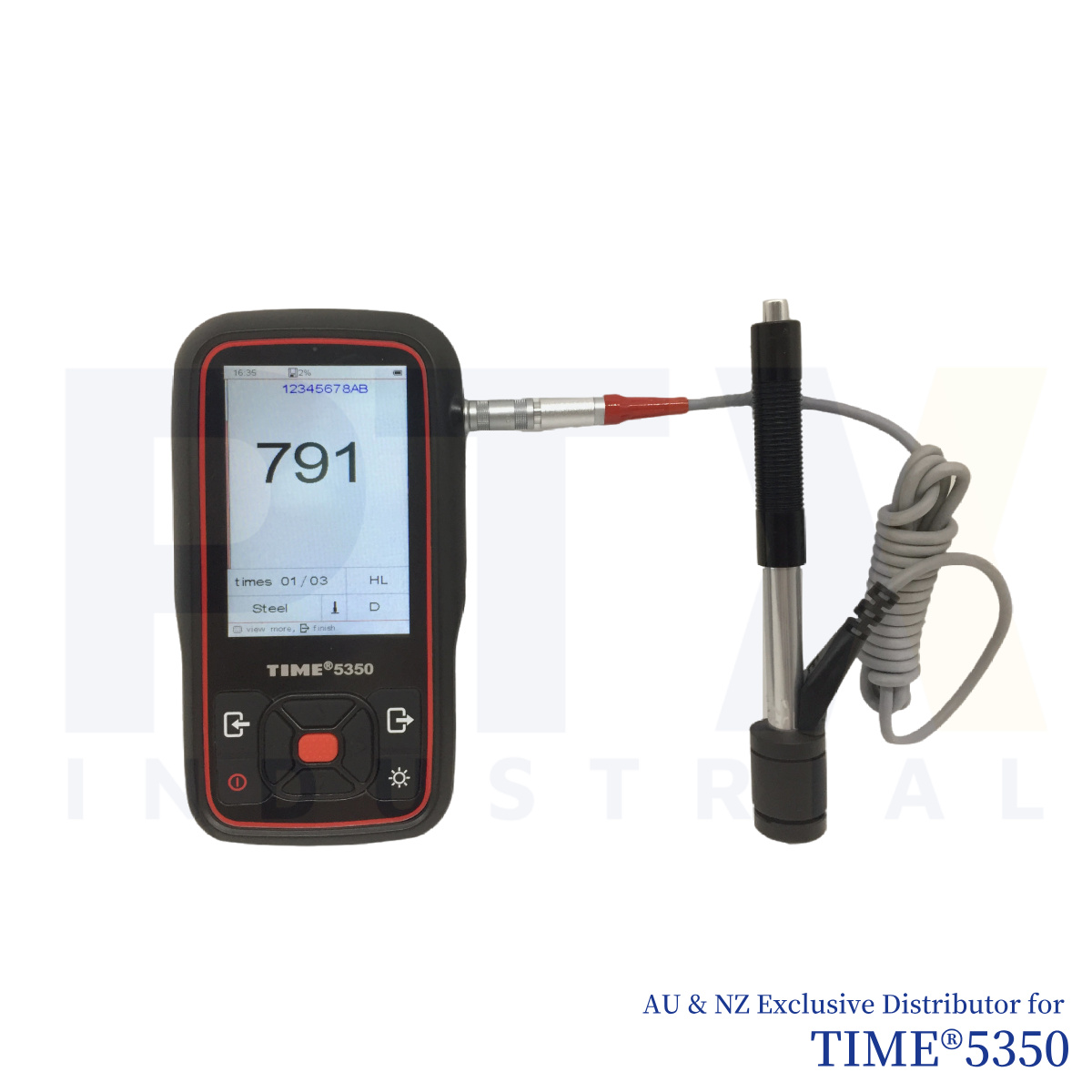

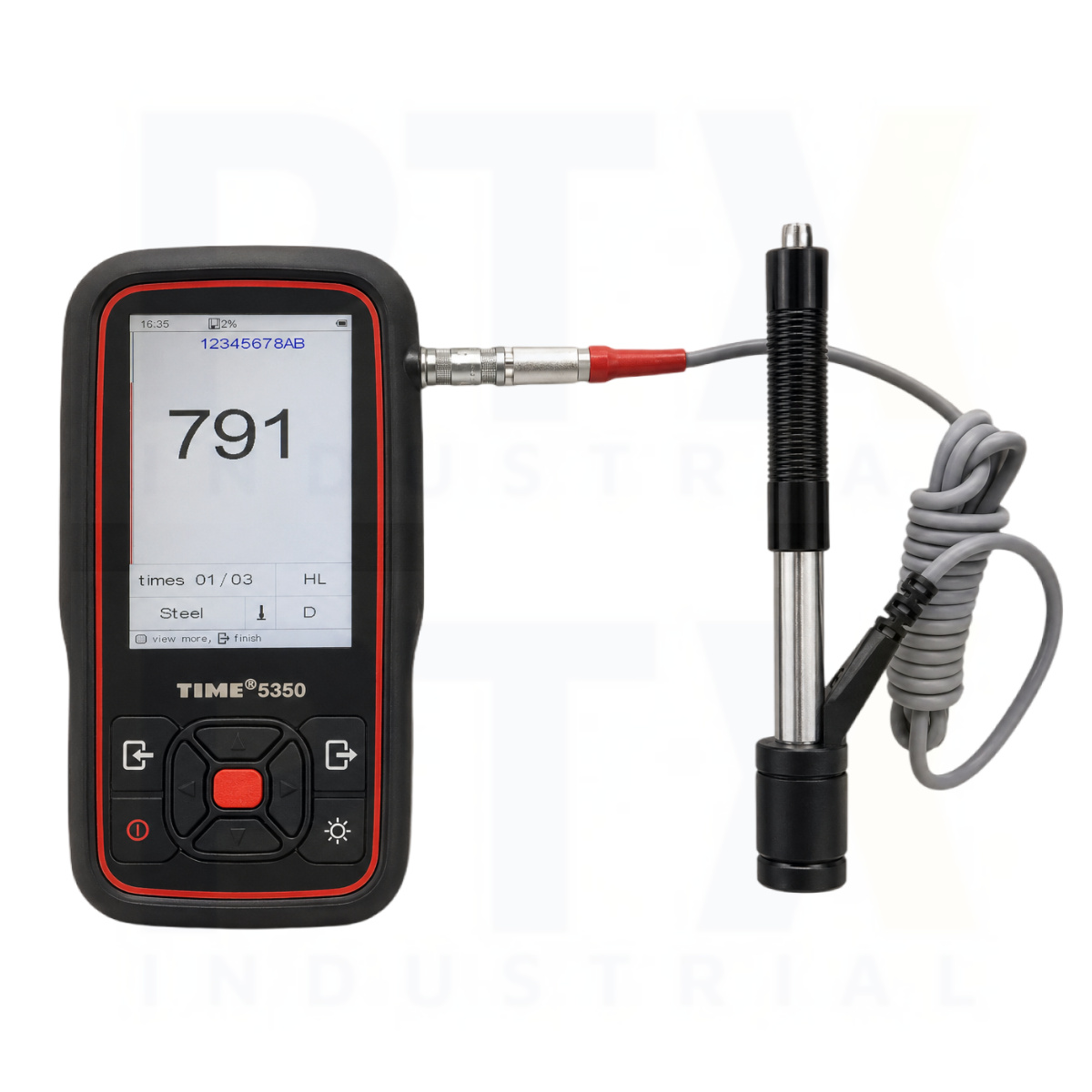

| Model | TIME®5350 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ Simple menu with instructions for easy and convenient operation ▪ Conversion of common hardness scales (HL, HV, HB, HRC, HRB, HS) and tensile strength ▪ Supports 7 types of optional impact devices with automatic recognition; standard D-type included ▪ 3.5-inch LCD (320 × 480) display with clear image and three adjustable backlight levels for different operating conditions ▪ Data storage capacity of 200 groups, including single value, average value, date, impact direction, number of measurements, material, and hardness scale ▪ Upper and lower limit setting with audible alarm ▪ Data transfer to PC via USB or RS232 in Word and Excel formats, with powerful PC software included ▪ Supports MicroSD card up to 32 GB for extended data storage ▪ Optional removable printer for direct printing of test results ▪ Built-in conversion table with direct HB value reading when using D/DC impact device ▪ Software calibration function |
| Technical Specification | |
| Measuring Range | 170–960 HLD |
| Hardness Scales | HL, HB, HRB, HRC, HV, HS |
| Measuring Direction | 360° |
| Tolerance | ±6 HLD (at 760 HLD) |
| Repeatability | 6 HLD (at 760 HLD) |
| Power Supply | 5 V / 500 mA |
| Charging Time (h) | 5 |
| Humidity | ≤ 90% |
| Operating Temperature (°C) | 0–40 |
| Dimensions (mm) | 149 × 82 × 23 |
| Weight (g) | 200 |
| Standard Delivery | |
| Main Unit | 1 |
| Impact Device Type D | 1 |
| Test Block (HLD) | 1 |
| Small Support Ring | 1 |
| Charger | 1 |
| Cleaning Brush | 1 |
| MicroSD Card | 1 |
| Communication Cable | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
