| General Information | |
| Category | Portable Ultrasonic Hardness Tester (Motorized Probe) |

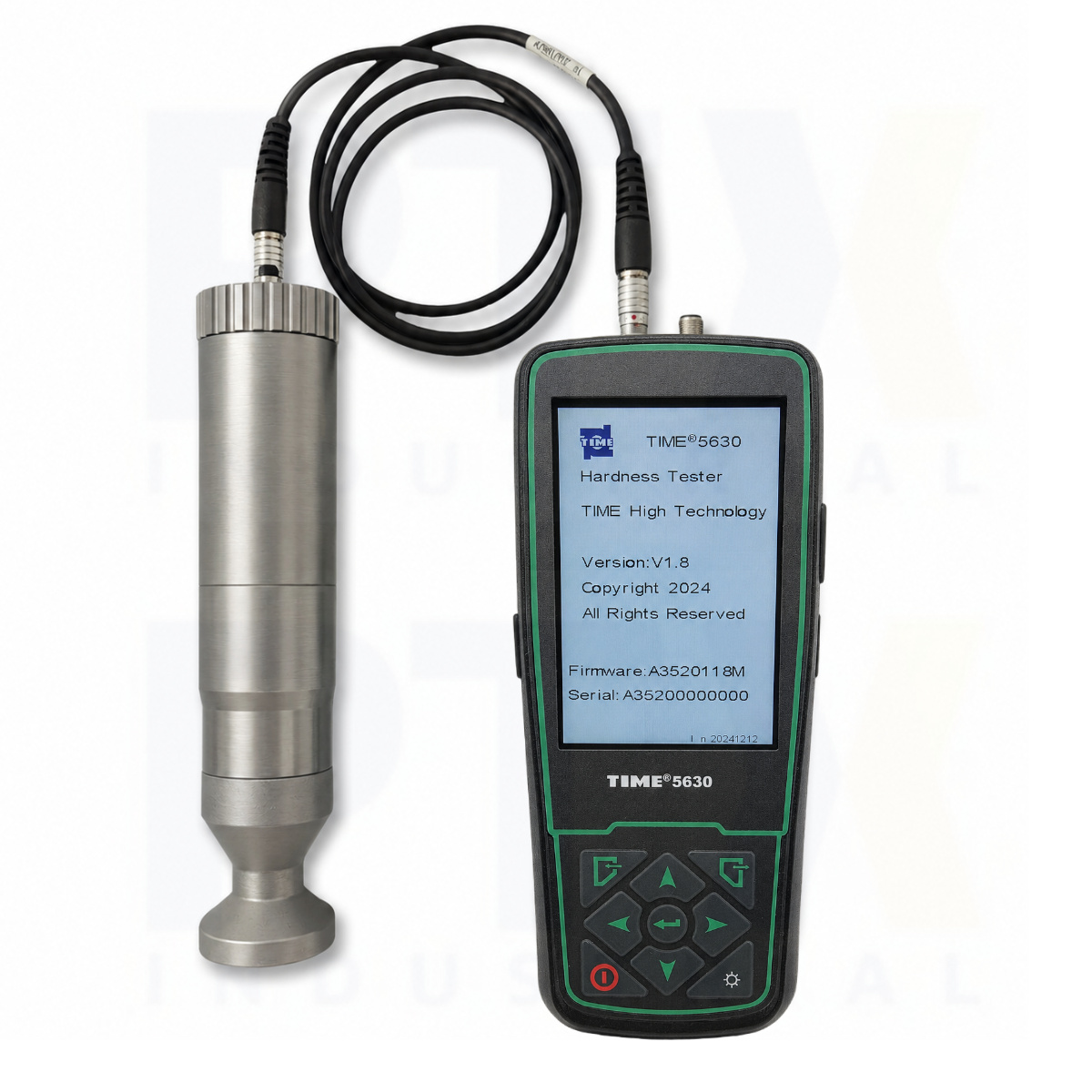

| Model | TIME®5630 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ Nondestructive hardness tester suitable for testing hardened layers and thin workpieces ▪ 3.5-inch color LCD display ▪ Battery status indication with low-battery alarm ▪ Conversion of common hardness scales (HV, HB, HRC, HRB) ▪ Supports hardness value calibration and calibration deletion ▪ Material selection function; primarily for steel and cast steel, with extended capability for alloy tool steel, special cast iron, and non-ferrous metals after calibration with standard test block ▪ Large data storage with built-in 8 GB SD card ▪ 360° measurement in any direction without compensation ▪ Displays maximum, minimum, average, standard deviation, number of measurements, and previous measurement values ▪ Upper and lower limit setting with alarm when limits are exceeded ▪ Rechargeable lithium-ion battery with continuous operating time over 30 hours ▪ Portable stand included to improve measurement accuracy |
| Application | Suitable for measuring strip and plate workpieces, mold hardened layers, blade hardened layers, tooth surface hardened layers, flange edges, wheels, turbine rotors, thin plates, shafts and pipes, containers, knife edges, and welded parts |
| Technical Specification | |
| Measuring Range | 80–1400 HV; 76–618 HB; 20.3–68 HRC; 41–105 HRB |
| Loading Force (N) | 3 |
| Indenter | Vickers diamond indenter |
| Hardness Resolution | 1 HV |
| Measuring Direction | 360° |
| Hardness Scales | HV, HB, HRC, HRB |
| Dimensions | Main unit: 170 × 75 × 40 mm; probe: Ø39 × 195 mm |
| Weight | Main unit: approx. 232 g; probe: approx. 840 g |
| Standard Delivery | |
| Main Unit | 1 |
| 20 N Manual Probe | 1 |
| Standard Test Block | 1 |
| V-shaped Base | 1 |
| Probe Cable | 1 |
| Charger | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
