| General Information | |
| Category | Vibration Tester |

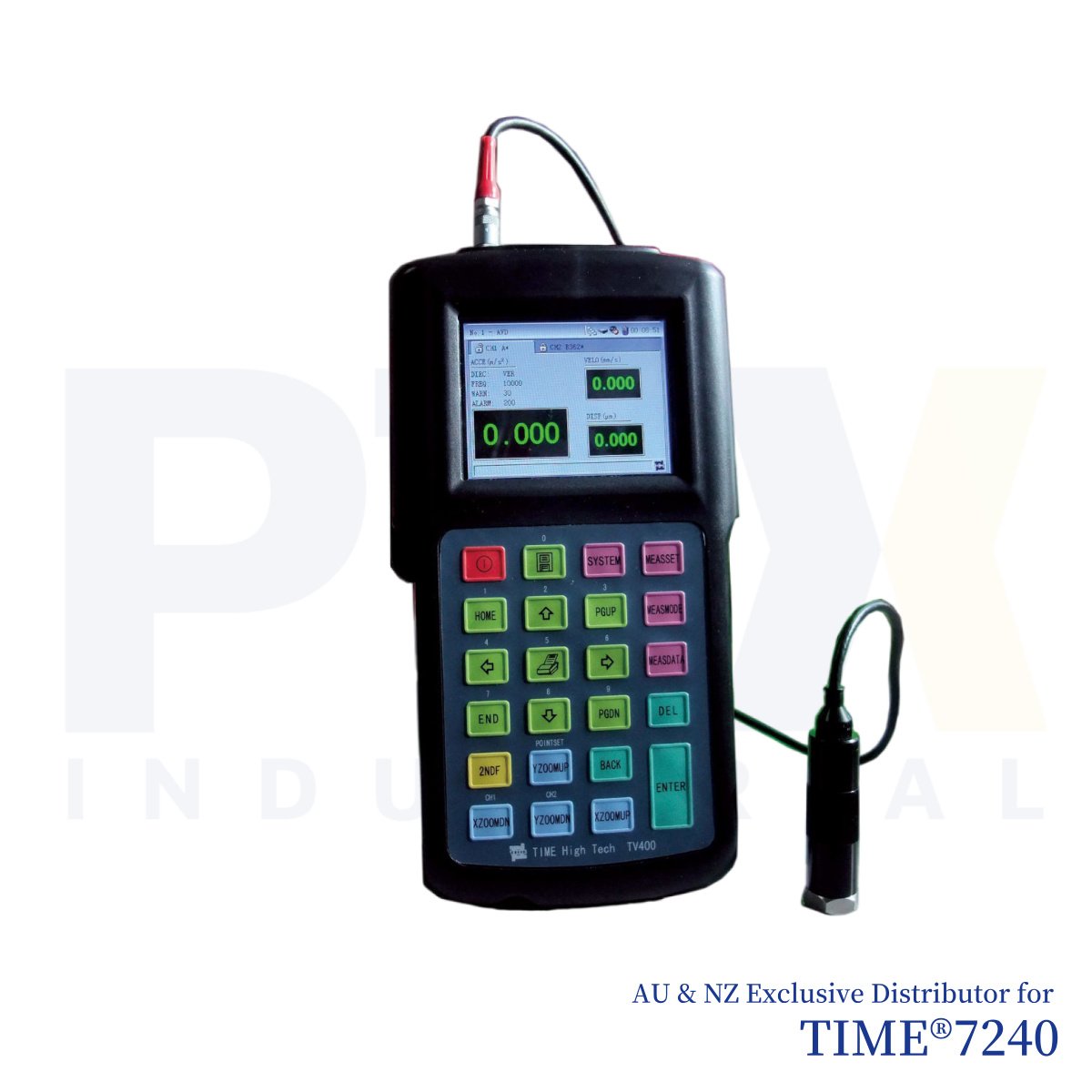

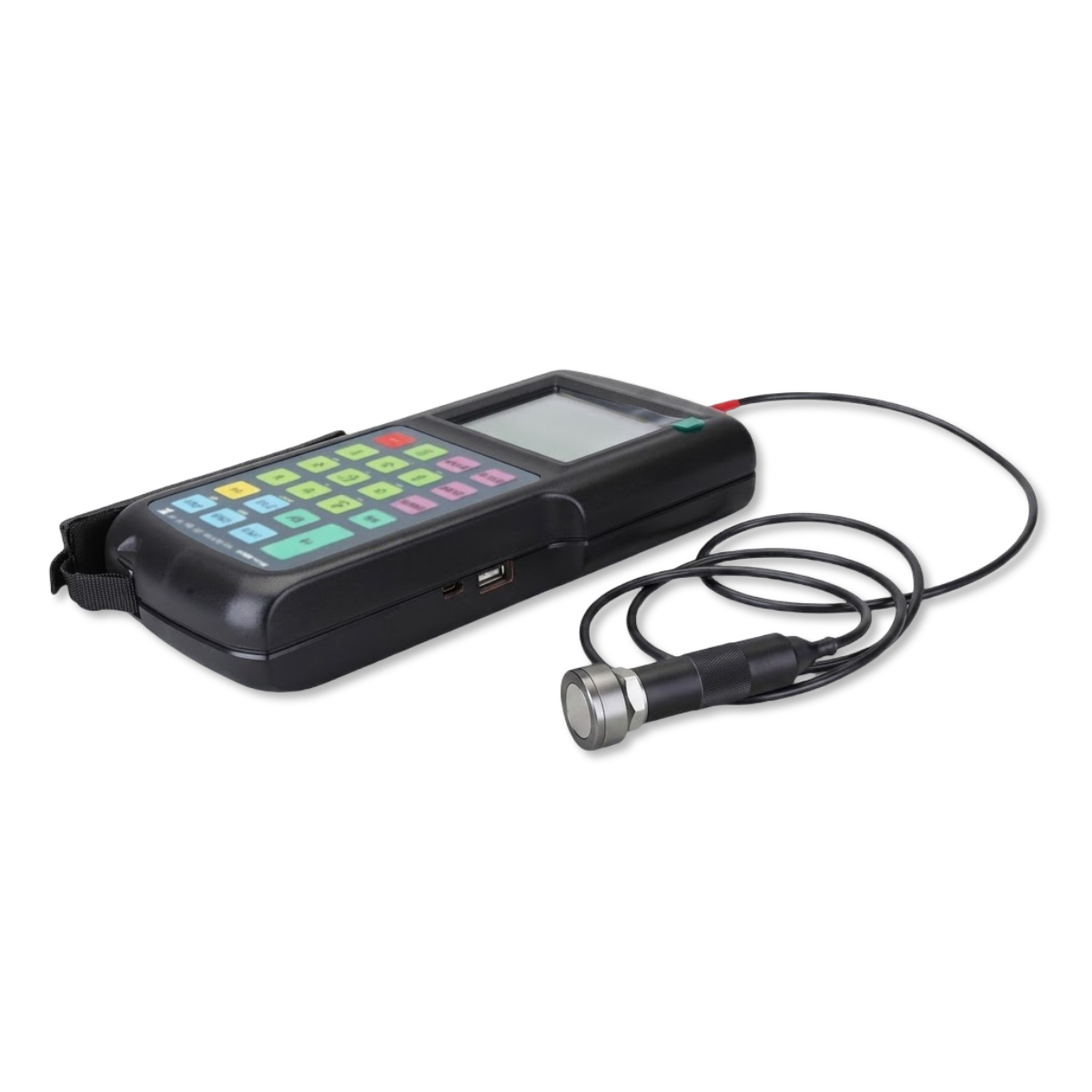

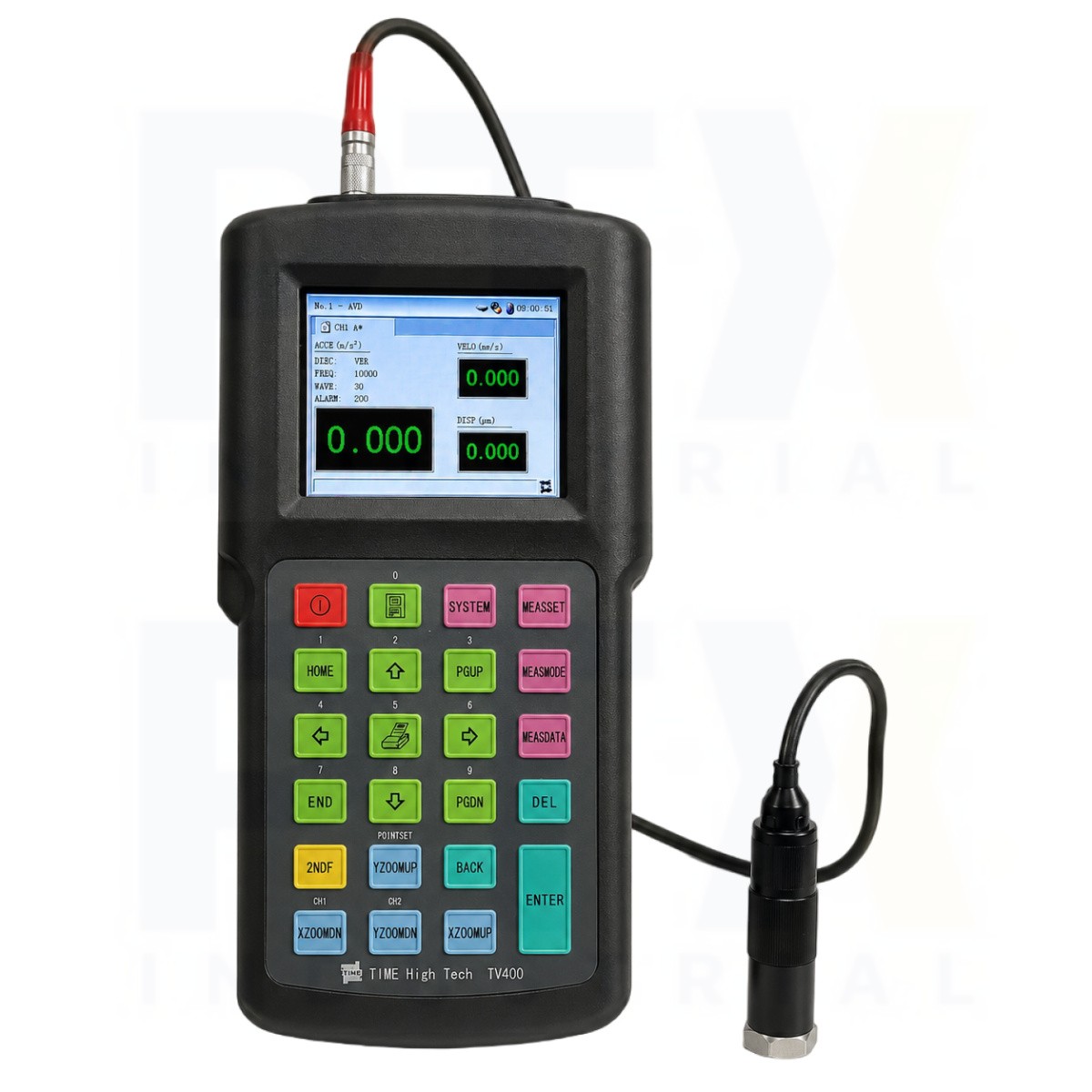

| Model | TIME®7240 |
| Manufacturer (OEM) | ▪ Three channels (CH1, CH2, REV) enable measurement of vibration in any two directions among X, Y, and Z axes ▪ Five measurement modes: AVD (acceleration, velocity, displacement), TIME (time-domain waveform), FFT (spectrum analysis), Sample (data sampling), and REV (rotation speed) ▪ Measures acceleration peak value, velocity RMS value, and displacement peak-to-peak value ▪ Adjustable filter cut-off frequency with passband up to 100 Hz ▪ Real-time dynamic display of vibration frequency and waveform ▪ Continuous data sampling for up to 20 seconds ▪ Advanced data memory management: supports up to 50 measurement points with unlimited data storage per point; stores parameters, waveforms, frequency data, and rotation speed ▪ Connects to printer for output of measurement data, waveforms, and spectrum charts ▪ High-accuracy rotation speed measurement using photoelectric transducer ▪ Built-in self-diagnosis with alarm when results exceed warning limits ▪ Safe and reliable long-life Li battery with protection circuitry ▪ 320 × 240 color LCD display with automatic shutdown and buzzer alarm |
| Technical Specification | |
| Parameter | Value |
| Acceleration Transducer Sensitivity (mVrms/g) | 1.0–9.9 → Acceleration: 1–2000 m/s²; Velocity: 1–2000 mm/s; Displacement: 10–20000 µm;
10–99 → Acceleration: 0.1–200 m/s²; Velocity: 0.1–200 mm/s; Displacement: 1–2000 µm |
| Frequency Range | Acceleration: 5–10000 Hz; Velocity: 5–1000 Hz; Displacement: 5–500 Hz |
| Rotation Speed | 300–60000 RPM |
| Tolerance | ±5% |
| Battery | Li battery (continuous working up to 8 hours) |
| Operating Temperature (°C) | 0–40 |
| Humidity | ≤ 80% RH |
| Dimensions (mm) | 223 × 122 × 38 |
| Weight (g) | 606 |
| Standard Delivery | |
| Main Unit | 1 |
| Vibration Probe (TSV-03) | 1 |
| Magnetic Base | 1 |
| Protective Sheath (for Main Unit) | 1 |
| Power Adapter | 1 |
| Dataview Software | 1 |
| SD Memory Card (2GB) | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
