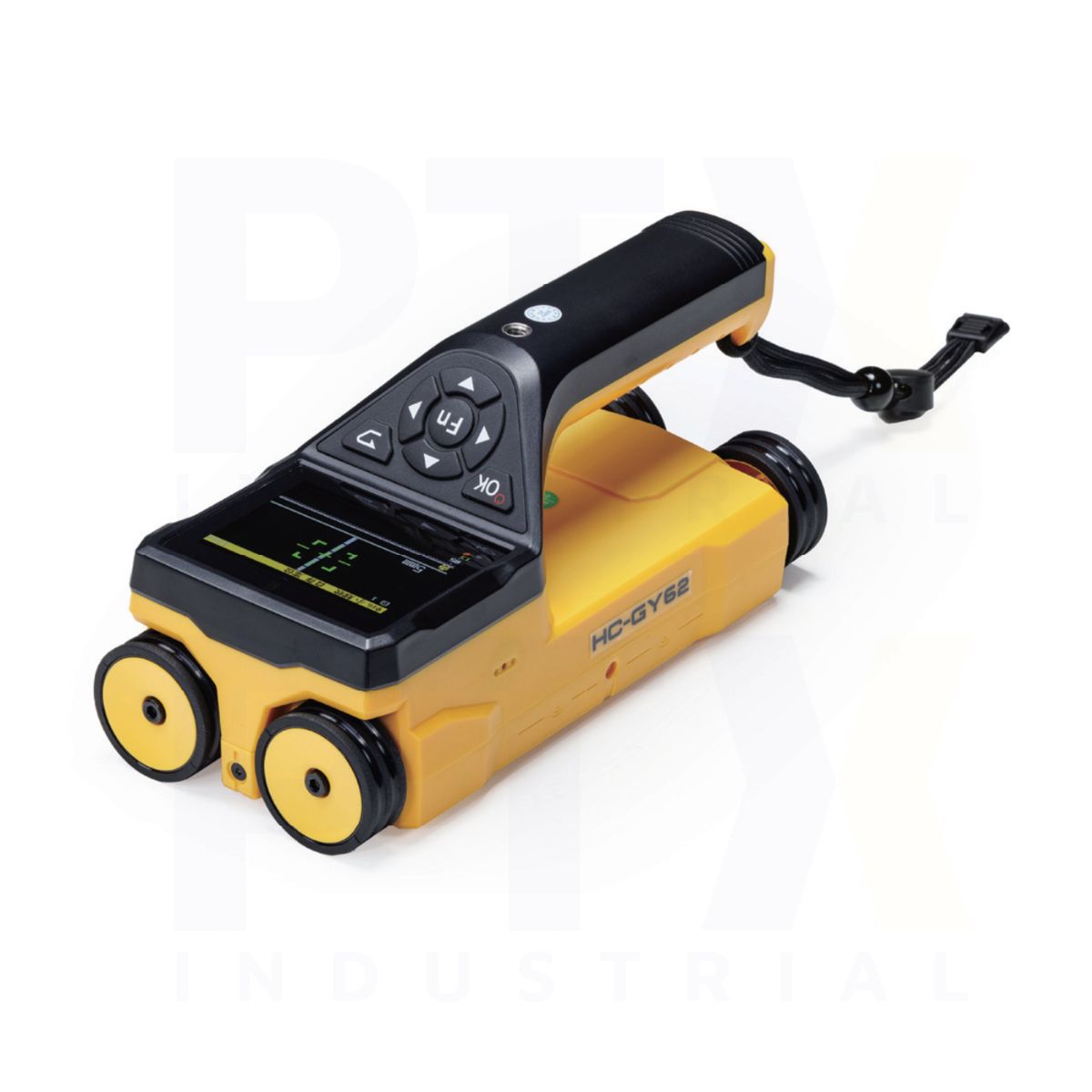

HC-GY62 Rebar Detector – Concrete Cover Meter & Rebar Scanner
The HC-GY62 Rebar Detector is a compact, portable rebar scanner designed for non-destructive testing of reinforced concrete structures. It accurately locates reinforcing steel, measures concrete cover thickness, estimates rebar diameter and identifies rebar distribution and orientation, making it ideal for structural inspections and construction quality control.
Key Features
- Rebar Detection Depth: Dual measurement ranges of 1–120 mm and 5–210 mm.
- Concrete Cover Measurement: Accuracy of ±1 mm up to 80 mm cover depth.
- Rebar Diameter Estimation: Supports rebar diameters from Ø6 to Ø50 mm.
- Integrated Scanning Design: Compact, lightweight construction for convenient on-site inspections.
- Laser Positioning: Visual indicators assist with accurate rebar location and marking.
- Bluetooth 5.2 Connectivity: Supports wireless data transfer and compatible mobile app integration.
- 2.8-inch Colour Display: Clear LCD screen with a resolution of 320 × 240 pixels.
- Extended Battery Life: Rechargeable lithium battery providing approximately 24 hours of operation.
- Data Storage & Reporting: Stores up to 1,000 components and 100,000 measurement points, with PC software for analysis and reporting.
Accurate Rebar Location & Concrete Cover Measurement
The HC-GY62 identifies rebar positions, spacing and orientation within reinforced concrete. Its dual-range detection system supports cover measurements up to 210 mm, while the thickness measurement mode provides accuracy of ±1 mm from 1–80 mm, ±2 mm from 81–120 mm and ±4 mm from 121–210 mm.
Integrated Scanning & Laser Positioning
The compact integrated design combines scanning and measurement functions in a single handheld instrument. Vertical laser positioning and visual indicators help operators identify rebar centre lines and adjacent reinforcement, supporting efficient inspection and accurate marking before drilling or coring.
Bluetooth Connectivity & Professional Reporting
Built-in Bluetooth 5.2 enables wireless communication with compatible devices and the Hichuang Data Platform app. PC software supports measurement analysis, 3D modelling, data processing and report export, helping streamline documentation and inspection workflows.
Typical Applications
- Rebar location and concrete cover thickness measurement
- Reinforcement spacing and distribution assessment
- Structural inspections of reinforced concrete buildings and infrastructure
- Pre-drilling and concrete coring inspections
- Construction quality assurance and quality control
- Concrete condition assessment and maintenance inspections
