Ultrasonic Thickness Gauge | Thickness Tester

Ultrasonic Thickness Gauges for Corrosion & NDT Inspection

PTX Industrial supplies professional ultrasonic thickness gauges for non-destructive measurement of metal thickness, wall loss and corrosion. Our ultrasonic thickness gauges are suitable for pipes, tanks, pressure vessels, steel structures, boilers, marine vessels, mining equipment and industrial maintenance applications.

Choose from standard ultrasonic thickness gauges, through-coating models, high-temperature gauges, thin-material gauges and advanced A-Scan and B-Scan instruments. Measurement ranges are available from approximately 0.15 mm up to 508 mm depending on the model and transducer.

PTX Industrial provides local Australian technical support, optional traceable calibration and a range of ultrasonic probes, couplants and calibration blocks. Whether you require a simple thickness meter for routine inspection or an advanced ultrasonic thickness gauge for corrosion monitoring and asset integrity applications, our team can help select the appropriate instrument.

Ultrasonic Thickness Gauge Selection Guide

Showing all 12 results

Ultrasonic Thickness Gauge Selection Guide

ModelPositioningSpecial ApplicationMeasuring Range (Steel)AccuracyResolutionEcho-EchoThrough CoatingB-ScanA-ScanWeight
TIME TT110Economy Steel Thickness GaugeSimple steel thickness and pipe wall measurements0.75–300 mm±(0.5%H + 0.04) mm0.1 mm❌❌❌❌250 g
TIME TT120Economy High-Temperature GaugeHot steel pipes, boilers and process equipment up to 300°C0.75–300 mm±(0.5%H + 0.04) mm0.01 mm❌❌❌❌250 g
TIME TT130Economy High-Resolution GaugeGeneral-purpose thickness measurement requiring finer display resolution0.75–300 mm±(0.5%H + 0.04) mm0.01 mm❌❌❌❌250 g
TIME2110Economy Steel Thickness GaugeSimple steel thickness and pipe wall measurements1.2–225 mm±(0.5%H + 0.04) mm0.1 mm❌❌❌❌140 g
TIME2113Economy High-Resolution GaugeGeneral-purpose thickness measurement requiring finer display resolution1.2–225 mm±(0.5%H + 0.04) mm0.01 mm❌❌❌❌140 g
TIME2130Professional Industrial GaugeIndustrial maintenance, pipes, tanks and general NDT inspection0.75–300 mm±(0.5%H + 0.04) mm0.01 / 0.1 mm❌❌❌❌370 g

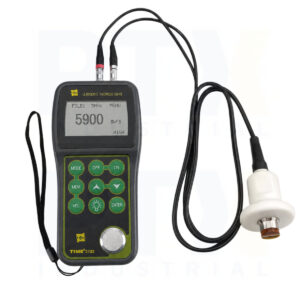

TIME2132High-Temperature Industrial GaugeHot pipes, boilers, furnaces (up to 300°C)1.2–225 mm (5–80 mm @ 300°C)±(0.5%H + 0.04) mm0.01 / 0.1 mm❌❌❌❌370 g
TIME2134Cast Iron & Coarse-Grain GaugeCast iron and coarse-grain materials1.2–300 mm (5–40 mm cast iron)±(0.5%H + 0.04) mm0.01 / 0.1 mm❌❌❌❌370 g
TIME2136Through-Coating Thickness GaugePainted and coated steel structures1.2–200 mm (T-E) / 3–20 mm (E-E)±(0.5%H + 0.04) mm0.001 / 0.01 mm✅✅❌❌220 g
TIME2170Precision Thin-Material GaugeThin sheet metal, tubing, precision components0.15–20 mm±(0.5%H + 0.01) mm0.001 / 0.01 mm✅Limited❌❌220 g
TIME2180BAdvanced B-Scan Corrosion Monitoring GaugeB-Scan corrosion profiling of pipelines, tanks, vessels and mining equipment0.6–508 mm±(0.5%H + 0.01) mm0.001 / 0.01 / 0.1 mm✅✅✅❌178 g
TIME2190Advanced A-Scan / B-Scan NDT GaugeAdvanced NDT, asset integrity, corrosion mapping0.2–508 mm±(0.5%H + 0.01) mm0.001 / 0.01 / 0.1 mm✅✅✅✅360 g
