▸Description

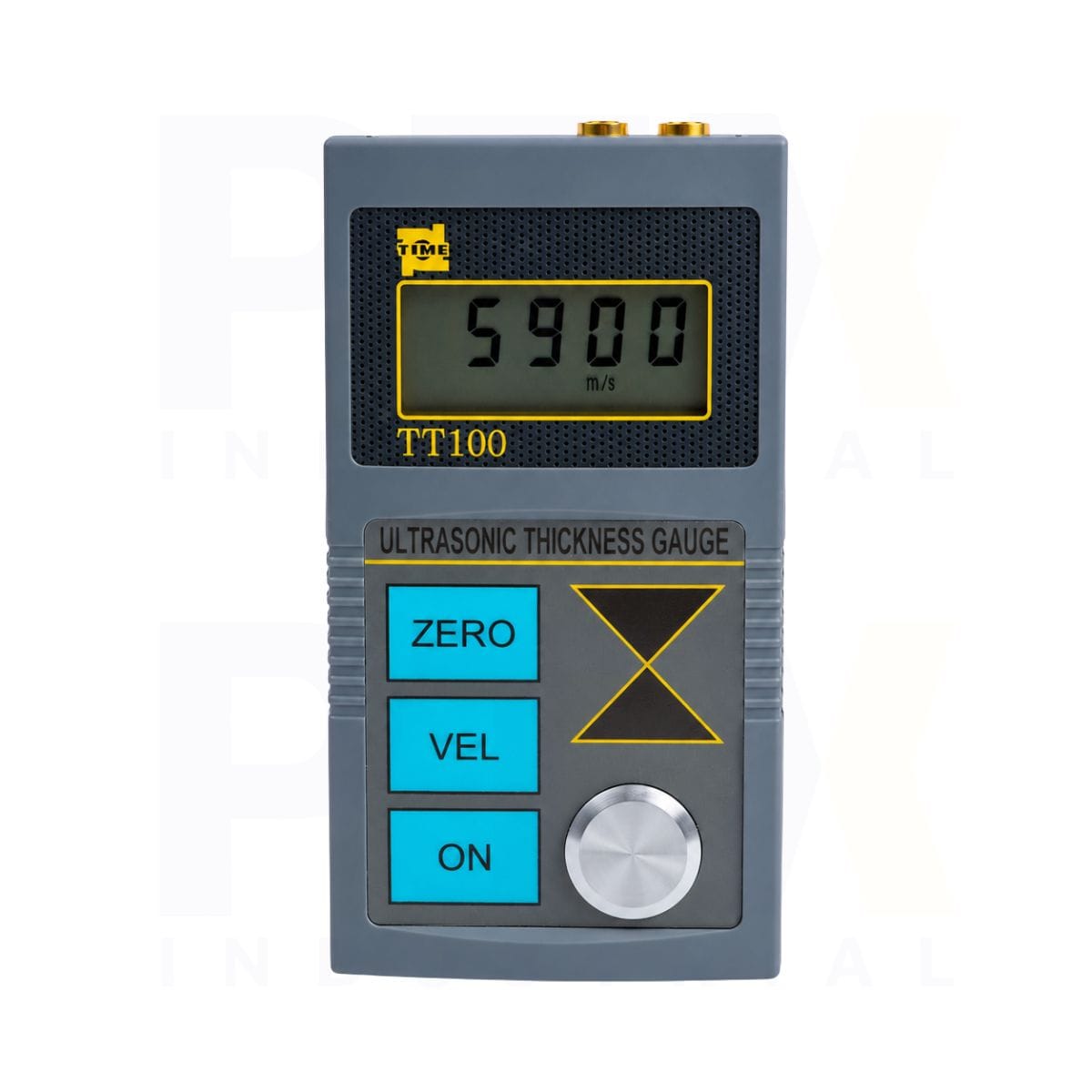

The TIME TT100 Ultrasonic Thickness Gauge is a compact and reliable ultrasonic thickness tester designed for fast, accurate, and non-destructive thickness measurement of metallic and non-metallic materials. Suitable for maintenance, corrosion inspection, manufacturing, fabrication, and quality control, the TT100 measures thickness from 0.75 mm to 300 mm (probe dependent) with an adjustable sound velocity range of 1000–9999 m/s.
Featuring a bright backlit LCD, integrated 4.0 mm calibration block, and selectable mm/inch units, the TT100 is easy to operate in both workshop and field environments. Five preset sound velocities and storage for up to 10 readings improve inspection efficiency, while optional 2.5 MHz and 7 MHz probes provide greater application flexibility. Powered by two AA batteries with up to 250 hours of operation, the TT100 delivers dependable performance for everyday industrial thickness measurement.
Features
- Measures metallic and non-metallic materials
- Measuring range: 0.75–300 mm (probe dependent)
- Adjustable sound velocity: 1000–9999 m/s
- Automatic non-linearity compensation for improved accuracy
- Bright 4-digit LCD with backlight
- Integrated 4.0 mm steel calibration block
- Stores up to 10 measurements
- Five preset sound velocity settings
- Metric (mm) and Imperial (inch) display
- Compatible with 2.5 MHz, 5 MHz and 7 MHz transducers
- Lightweight handheld design (250 g)
- Up to 250 hours battery life using 2 × AA batteries
