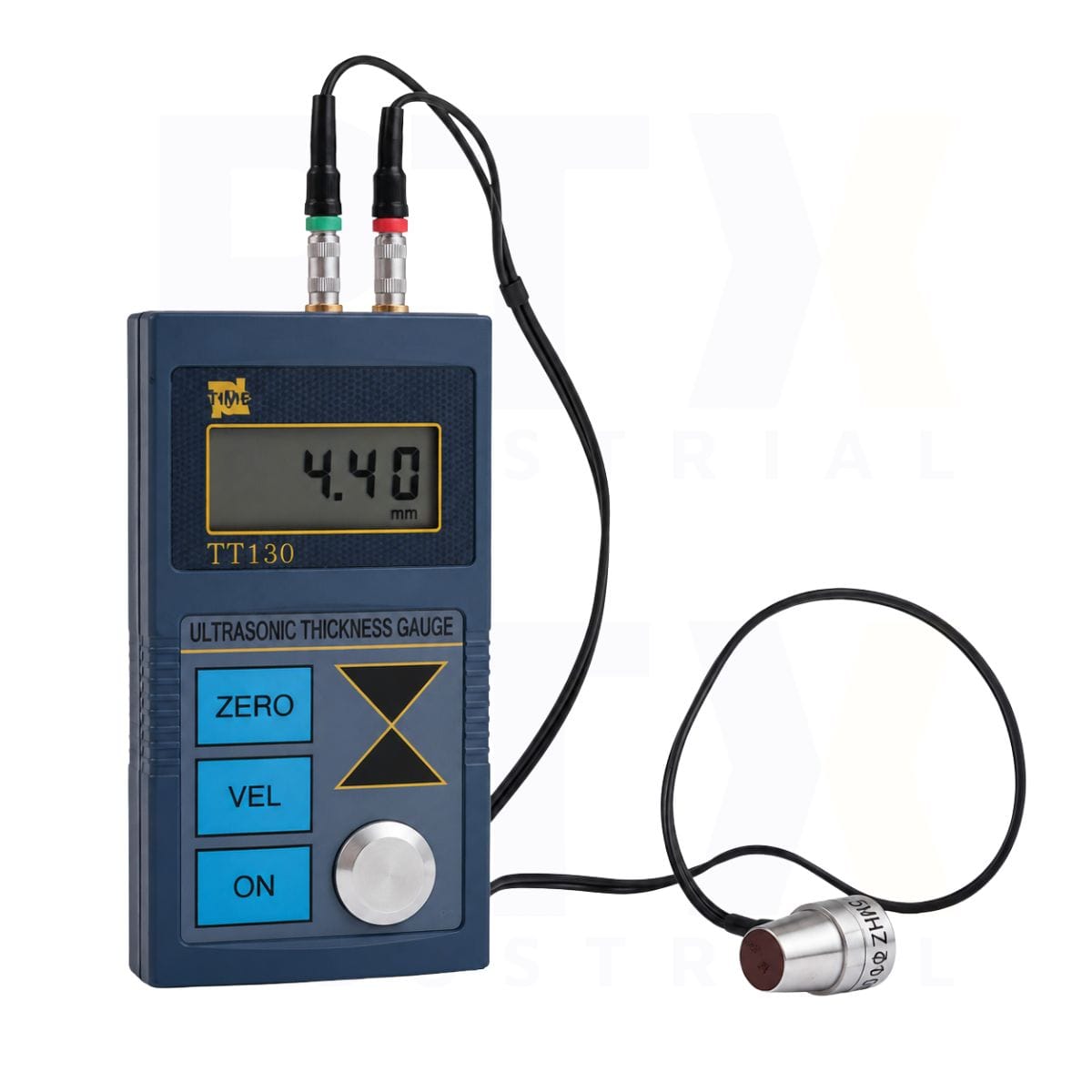

TIME TT130 Ultrasonic Thickness Gauge 0.01mm Resolution

TIME TT130 Ultrasonic Thickness Gauge
SKU: PTX-UTG-TT130 Category: Brand:

USD $765.00 ex. GST

IN STOCK

- +

The TIME TT130 Ultrasonic Thickness Gauge is a portable dual-element ultrasonic thickness tester designed for corrosion inspection and accurate thickness measurement of metallic and non-metallic materials. Its dual-element probe provides reliable measurements on rough and corroded surfaces, making it ideal for maintenance, pipelines, tanks, and industrial inspection.

Product Highlights

  • Free Shipping (Portable Items Only; Conditions Apply)
  • Optional Traceable Calibration Service *
  • Factory Calibration Certificate *
  • Local Australian Stock & Technical Support
  • * Where applicable. Calibration available at additional cost.
Guaranteed Safe Checkout
TIME TT130 Ultrasonic Thickness Gauge
Step Block 5 Steps
Step Block 4 Steps
Industrial Ultrasonic Couplant Gel 50mL
Industrial Ultrasonic Couplant Gel 500mL
This item: TIME TT130 Ultrasonic Thickness Gauge 0.01mm Resolution USD $765.00 ex. GST USD $765.00 ex. GST

IN STOCK

Step Block 5 Steps USD $225.00 ex. GST

IN STOCK

- +
Step Block 4 Steps USD $135.00 ex. GST

IN STOCK

- +
Industrial Ultrasonic Couplant Gel 50mL USD $4.50 ex. GST

IN STOCK

- +
CG-88 Industrial Ultrasonic Couplant Gel 500mL USD $45.00 ex. GST

IN STOCK

- +

▸Description

The TIME TT130 Ultrasonic Thickness Gauge is a portable ultrasonic thickness tester designed for accurate non-destructive thickness measurement of metallic and non-metallic materials. Equipped with a dual-element transducer, the TT130 delivers improved performance on corroded, rough, and pitted surfaces, making it ideal for corrosion monitoring, maintenance, inspection, and quality control.

With a measuring range of 0.75–300 mm (probe dependent) and an adjustable sound velocity range of 1000–9999 m/s, the TT130 is suitable for inspecting steel plates, pipes, pressure vessels, storage tanks, and other industrial components. The instrument features a bright backlit LCD, integrated 4.0 mm calibration block, selectable mm/inch units, five preset sound velocities, and storage for up to 10 readings. Powered by two AA batteries providing up to 250 hours of operation, the TT130 is built for reliable field inspections.

Features

  • Dual-element probe for corrosion and pitted surface inspection
  • Measures metallic and non-metallic materials
  • Measuring range: 0.75–300 mm (probe dependent)
  • Adjustable sound velocity: 1000–9999 m/s
  • Automatic non-linearity compensation
  • Bright 4-digit LCD with backlight
  • Integrated 4.0 mm steel calibration block
  • Stores up to 10 measurements
  • Five preset sound velocity settings
  • Metric (mm) and Imperial (inch) display
  • Lightweight handheld design (250 g)
  • Up to 250 hours battery life using 2 × AA batteries

▸Specifications

📄 Download Specification Sheet

SpecificationDetails
ModelTIME TT130
Measuring PrincipleUltrasonic Pulse-Echo
Measuring Range0.75–300.00 mm (steel, probe dependent)
Accuracy±(0.5%H + 0.04) mm (material dependent)
Display Resolution0.01 mm
Steel Pipe CapabilityMinimum Ø20 × 3.0 mm
Compatible Probe Frequencies2.5 MHz (optional), 5 MHz (standard), 7 MHz (optional)
Standard Probe Diameter10 mm
CalibrationIntegrated 4.0 mm steel calibration block
Measurement Unitsmm / inch
Sound Velocity Range1000–9999 m/s
Display4-digit LCD with backlight
Operating Temperature−10°C to +60°C
Battery IndicatorLow battery warning
Power Supply2 × AA 1.5 V batteries
Battery LifeApprox. 250 hours
Dimensions126 × 68 × 23 mm
WeightApprox. 250 g (including batteries)
Standard Delivery
TT130 Main Unit1
5 MHz Straight Probe1
Integrated 4.0 mm Steel Calibration Block1
AA Batteries (1.5 V)2
Ultrasonic Couplant1
TIME Calibration Certificate1
Warranty Card1
Instruction Manual1

▸Model Comparison

ModelPositioningSpecial ApplicationMeasuring Range (Steel)AccuracyResolutionEcho-EchoThrough CoatingB-ScanA-ScanWeight
TIME TT110Economy Steel Thickness GaugeSimple steel thickness and pipe wall measurements0.75–300 mm±(0.5%H + 0.04) mm0.1 mm❌❌❌❌250 g
TIME TT120Economy High-Temperature GaugeHot steel pipes, boilers and process equipment up to 300°C0.75–300 mm±(0.5%H + 0.04) mm0.01 mm❌❌❌❌250 g
TIME TT130Economy High-Resolution GaugeGeneral-purpose thickness measurement requiring finer display resolution0.75–300 mm±(0.5%H + 0.04) mm0.01 mm❌❌❌❌250 g
TIME2110Economy Steel Thickness GaugeSimple steel thickness and pipe wall measurements1.2–225 mm±(0.5%H + 0.04) mm0.1 mm❌❌❌❌140 g
TIME2113Economy High-Resolution GaugeGeneral-purpose thickness measurement requiring finer display resolution1.2–225 mm±(0.5%H + 0.04) mm0.01 mm❌❌❌❌140 g
TIME2130Professional Industrial GaugeIndustrial maintenance, pipes, tanks and general NDT inspection0.75–300 mm±(0.5%H + 0.04) mm0.01 / 0.1 mm❌❌❌❌370 g
TIME2132High-Temperature Industrial GaugeHot pipes, boilers, furnaces (up to 300°C)1.2–225 mm (5–80 mm @ 300°C)±(0.5%H + 0.04) mm0.01 / 0.1 mm❌❌❌❌370 g
TIME2134Cast Iron & Coarse-Grain GaugeCast iron and coarse-grain materials1.2–300 mm (5–40 mm cast iron)±(0.5%H + 0.04) mm0.01 / 0.1 mm❌❌❌❌370 g
TIME2136Through-Coating Thickness GaugePainted and coated steel structures1.2–200 mm (T-E) / 3–20 mm (E-E)±(0.5%H + 0.04) mm0.001 / 0.01 mm✅✅❌❌220 g
TIME2170Precision Thin-Material GaugeThin sheet metal, tubing, precision components0.15–20 mm±(0.5%H + 0.01) mm0.001 / 0.01 mm✅Limited❌❌220 g
TIME2180BAdvanced B-Scan Corrosion Monitoring GaugeB-Scan corrosion profiling of pipelines, tanks, vessels and mining equipment0.6–508 mm±(0.5%H + 0.01) mm0.001 / 0.01 / 0.1 mm✅✅✅❌178 g
TIME2190Advanced A-Scan / B-Scan NDT GaugeAdvanced NDT, asset integrity, corrosion mapping0.2–508 mm±(0.5%H + 0.01) mm0.001 / 0.01 / 0.1 mm✅✅✅✅360 g
