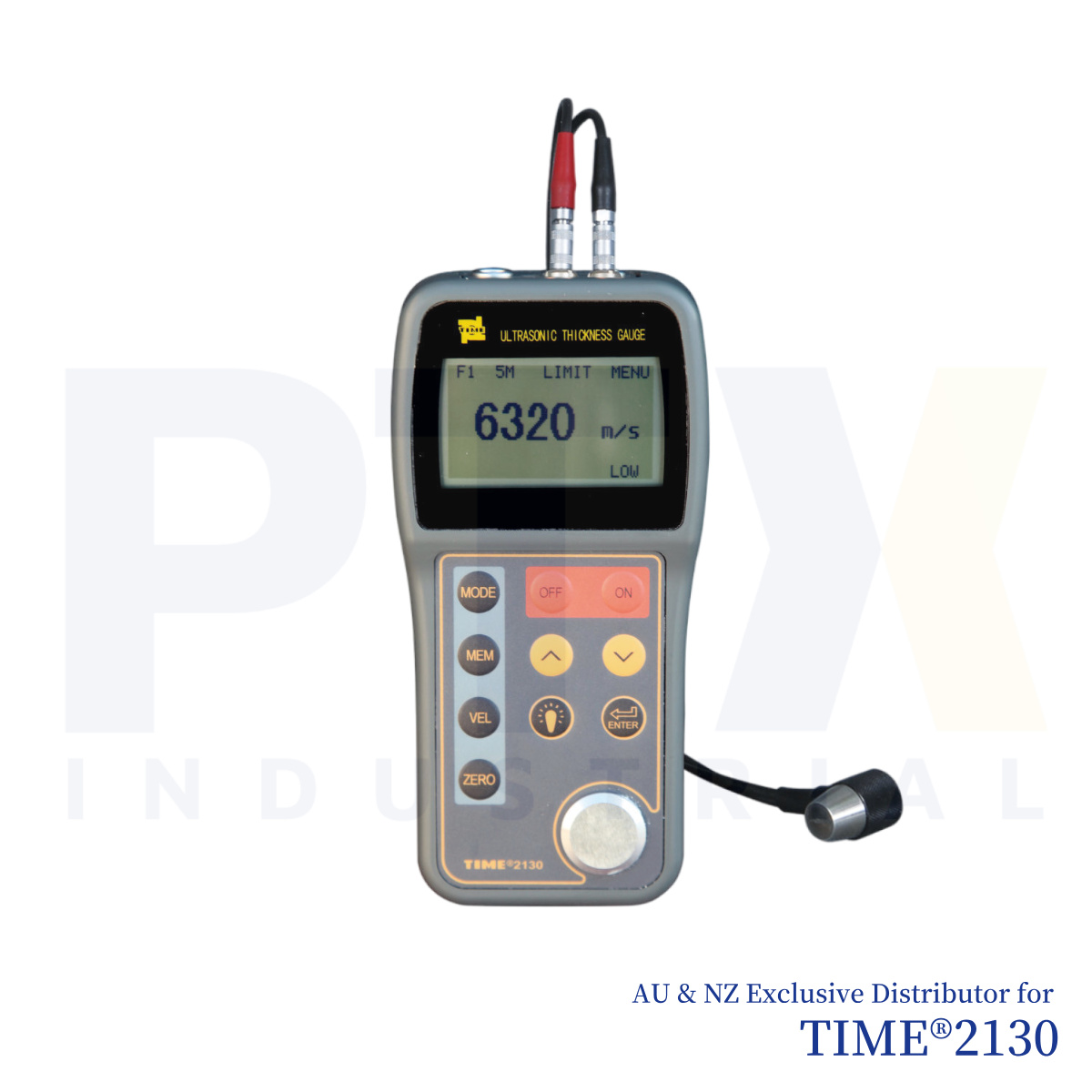

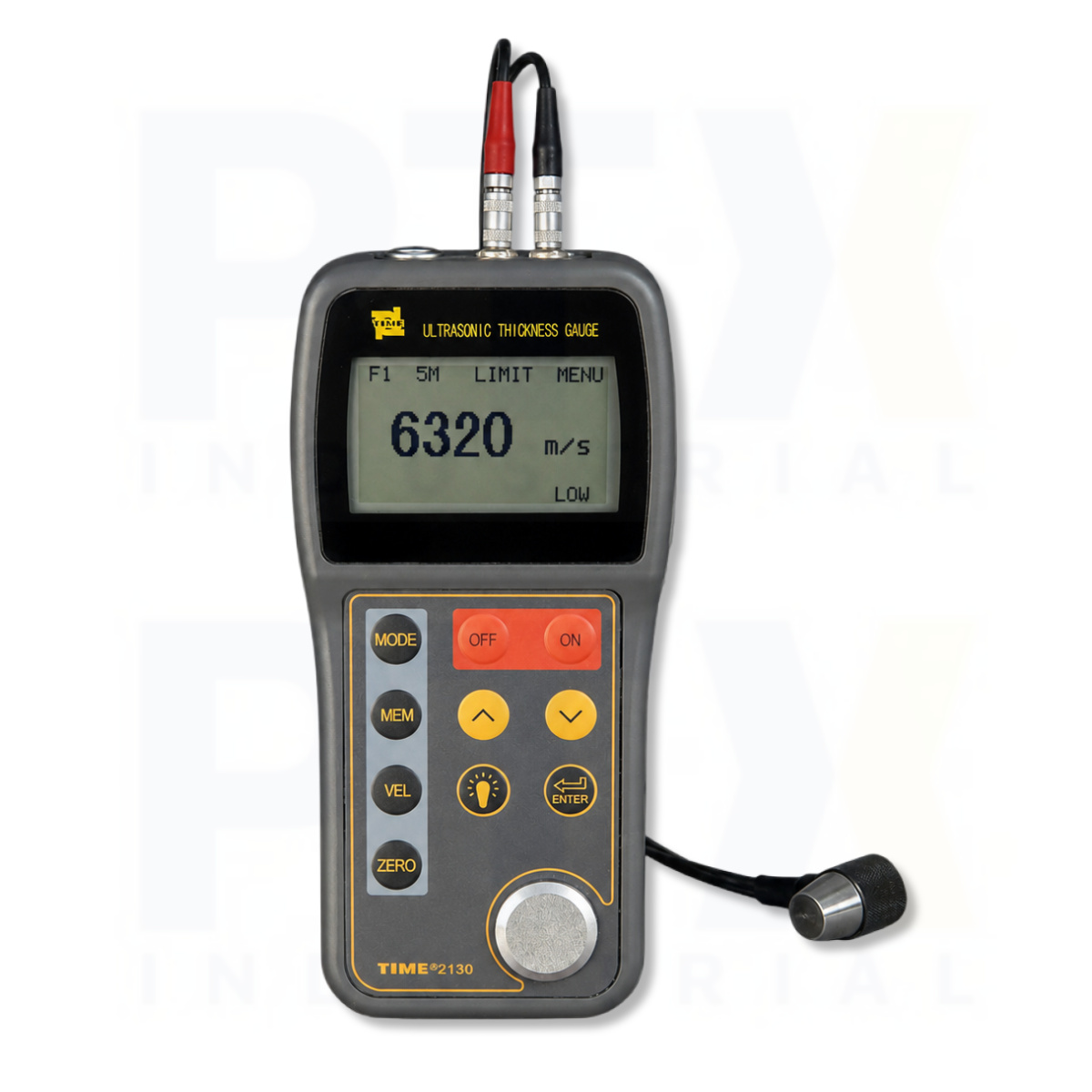

The TIME2130 Ultrasonic Thickness Gauge is a professional ultrasonic thickness gauge featuring 0.01 mm resolution, RS232 communication, two-point calibration, and 500-reading data storage. Designed for accurate non-destructive thickness measurement, it is ideal for corrosion monitoring, manufacturing, maintenance, and industrial inspection.

Product Highlights

Free Shipping (Portable Items Only; Conditions Apply)
Optional Traceable Calibration Service *
Factory Calibration Certificate *
Local Australian Stock & Technical Support
* Where applicable. Calibration available at additional cost.

Guaranteed Safe Checkout

Industrial Ultrasonic Couplant Gel 500mL

TIME2130 Ultrasonic Thickness Gauge

This item: TIME2130 Ultrasonic Thickness Gauge USD $1,170.00 ex. GST USD $1,170.00 ex. GST

IN STOCK

5P 10×90 Angle Probe (TIME 2130)

5P 10×90 Angle Probe (TIME 2130) USD $144.00 ex. GST

IN STOCK

- +

Step Block 4 Steps

Step Block 4 Steps USD $135.00 ex. GST

IN STOCK

- +

Step Block 5 Steps

Step Block 5 Steps USD $225.00 ex. GST

IN STOCK

- +

Industrial Ultrasonic Couplant Gel 50mL

Industrial Ultrasonic Couplant Gel 50mL USD $4.50 ex. GST

IN STOCK

- +

CG-88 Industrial Ultrasonic Couplant Gel 500mL

CG-88 Industrial Ultrasonic Couplant Gel 500mL USD $45.00 ex. GST

IN STOCK

- +

▸Description

Professional Ultrasonic Thickness Gauge

The TIME2130 Ultrasonic Thickness Gauge is a professional ultrasonic thickness gauge designed for accurate, non-destructive thickness measurement of metallic materials from a single accessible surface. Featuring an extended measuring range, selectable measurement resolution, and advanced data management functions, the TIME2130 is an ideal solution for manufacturing, corrosion monitoring, maintenance, fabrication, pressure vessel inspection, and quality control. Using advanced ultrasonic measurement technology, the instrument delivers reliable wall thickness measurements for pipes, storage tanks, boilers, structural steel, and fabricated components without damaging the test piece.

The TIME2130 Ultrasonic Thickness Gauge measures material thickness from 0.75 mm to 300.00 mm (depending on the transducer) and offers selectable display resolutions of 0.01 mm or 0.1 mm to suit both precision measurement and general inspection applications. Furthermore, automatic zero-point calibration and two-point calibration minimise system errors while improving measurement accuracy across different thickness ranges. Gain adjustment and adjustable sound velocity settings provide additional flexibility when testing a wide variety of metallic materials.

Designed for Industrial Inspection

The large backlit LCD with adjustable contrast provides excellent readability in both indoor and outdoor environments. In addition, the instrument offers two display modes, allowing operators to view either the current thickness or the minimum recorded thickness, making it particularly useful for corrosion surveys and preventive maintenance inspections.

The TIME2130 Ultrasonic Thickness Gauge stores up to 500 thickness measurements together with five custom sound velocity settings for efficient inspection management. Moreover, the integrated RS232 interface allows measurement data to be transferred to a computer or printed directly using optional PC software and compatible printers. Programmable upper and lower thickness limits with audible alarms simplify PASS/FAIL inspections, while automatic power-off and approximately 100 hours of battery life ensure dependable performance during extended field inspections.

Key Features

Professional ultrasonic thickness gauge for non-destructive thickness measurement
Measuring range from 0.75 mm to 300.00 mm (transducer dependent)
Selectable display resolution of 0.01 mm or 0.1 mm
Automatic zero-point calibration and two-point calibration
Gain adjustment for improved measurement performance
Large backlit LCD with adjustable contrast
Current thickness and minimum thickness display modes
Stores up to 500 thickness readings and five sound velocity settings
RS232 communication for PC software and printer connectivity
Programmable upper and lower limits with audible alarm
Approximately 100 hours of battery life
Ideal for corrosion monitoring, maintenance, manufacturing, and quality control

▸Specifications

📄 Download Specification Sheet

Technical Specification
Model	TIME2130 Ultrasonic Thickness Gauge
Measuring Range	0.75–300.00 mm (steel, depends on transducer)
Accuracy	±(0.5%H + 0.04) mm (material dependent)
Min. Pipe Size (steel)	Ø20 mm × 3.0 mm
Display Resolution	0.1 / 0.01 mm
Sound Velocity	1000–9999 m/s
Power Supply	2 × AA batteries (1.5 V)
Battery Life	Approx. 100 hours (without backlight)
Unit Selection	mm / inch
Operating Temperature	−10 to +60 °C
Dimensions (mm)	152 × 74 × 35
Weight (g)	370
Standard Delivery
Main Unit	1
Transducer 5PΦ10/90°	1
Rubber Jacket	1
Couplant	1
TIME Certificate	1
Warranty Card	1
Instruction Manual	1

▸Model Comparison

Model	Positioning	Special Application	Measuring Range (Steel)	Accuracy	Resolution	Echo-Echo	Through Coating	B-Scan	A-Scan	Weight
TIME TT110	Economy Steel Thickness Gauge	Simple steel thickness and pipe wall measurements	0.75–300 mm	±(0.5%H + 0.04) mm	0.1 mm	❌	❌	❌	❌	250 g
TIME TT120	Economy High-Temperature Gauge	Hot steel pipes, boilers and process equipment up to 300°C	0.75–300 mm	±(0.5%H + 0.04) mm	0.01 mm	❌	❌	❌	❌	250 g
TIME TT130	Economy High-Resolution Gauge	General-purpose thickness measurement requiring finer display resolution	0.75–300 mm	±(0.5%H + 0.04) mm	0.01 mm	❌	❌	❌	❌	250 g
TIME2110	Economy Steel Thickness Gauge	Simple steel thickness and pipe wall measurements	1.2–225 mm	±(0.5%H + 0.04) mm	0.1 mm	❌	❌	❌	❌	140 g
TIME2113	Economy High-Resolution Gauge	General-purpose thickness measurement requiring finer display resolution	1.2–225 mm	±(0.5%H + 0.04) mm	0.01 mm	❌	❌	❌	❌	140 g
TIME2130	Professional Industrial Gauge	Industrial maintenance, pipes, tanks and general NDT inspection	0.75–300 mm	±(0.5%H + 0.04) mm	0.01 / 0.1 mm	❌	❌	❌	❌	370 g
TIME2132	High-Temperature Industrial Gauge	Hot pipes, boilers, furnaces (up to 300°C)	1.2–225 mm (5–80 mm @ 300°C)	±(0.5%H + 0.04) mm	0.01 / 0.1 mm	❌	❌	❌	❌	370 g
TIME2134	Cast Iron & Coarse-Grain Gauge	Cast iron and coarse-grain materials	1.2–300 mm (5–40 mm cast iron)	±(0.5%H + 0.04) mm	0.01 / 0.1 mm	❌	❌	❌	❌	370 g
TIME2136	Through-Coating Thickness Gauge	Painted and coated steel structures	1.2–200 mm (T-E) / 3–20 mm (E-E)	±(0.5%H + 0.04) mm	0.001 / 0.01 mm	✅	✅	❌	❌	220 g
TIME2170	Precision Thin-Material Gauge	Thin sheet metal, tubing, precision components	0.15–20 mm	±(0.5%H + 0.01) mm	0.001 / 0.01 mm	✅	Limited	❌	❌	220 g
TIME2180B	Advanced B-Scan Corrosion Monitoring Gauge	B-Scan corrosion profiling of pipelines, tanks, vessels and mining equipment	0.6–508 mm	±(0.5%H + 0.01) mm	0.001 / 0.01 / 0.1 mm	✅	✅	✅	❌	178 g
TIME2190	Advanced A-Scan / B-Scan NDT Gauge	Advanced NDT, asset integrity, corrosion mapping	0.2–508 mm	±(0.5%H + 0.01) mm	0.001 / 0.01 / 0.1 mm	✅	✅	✅	✅	360 g
