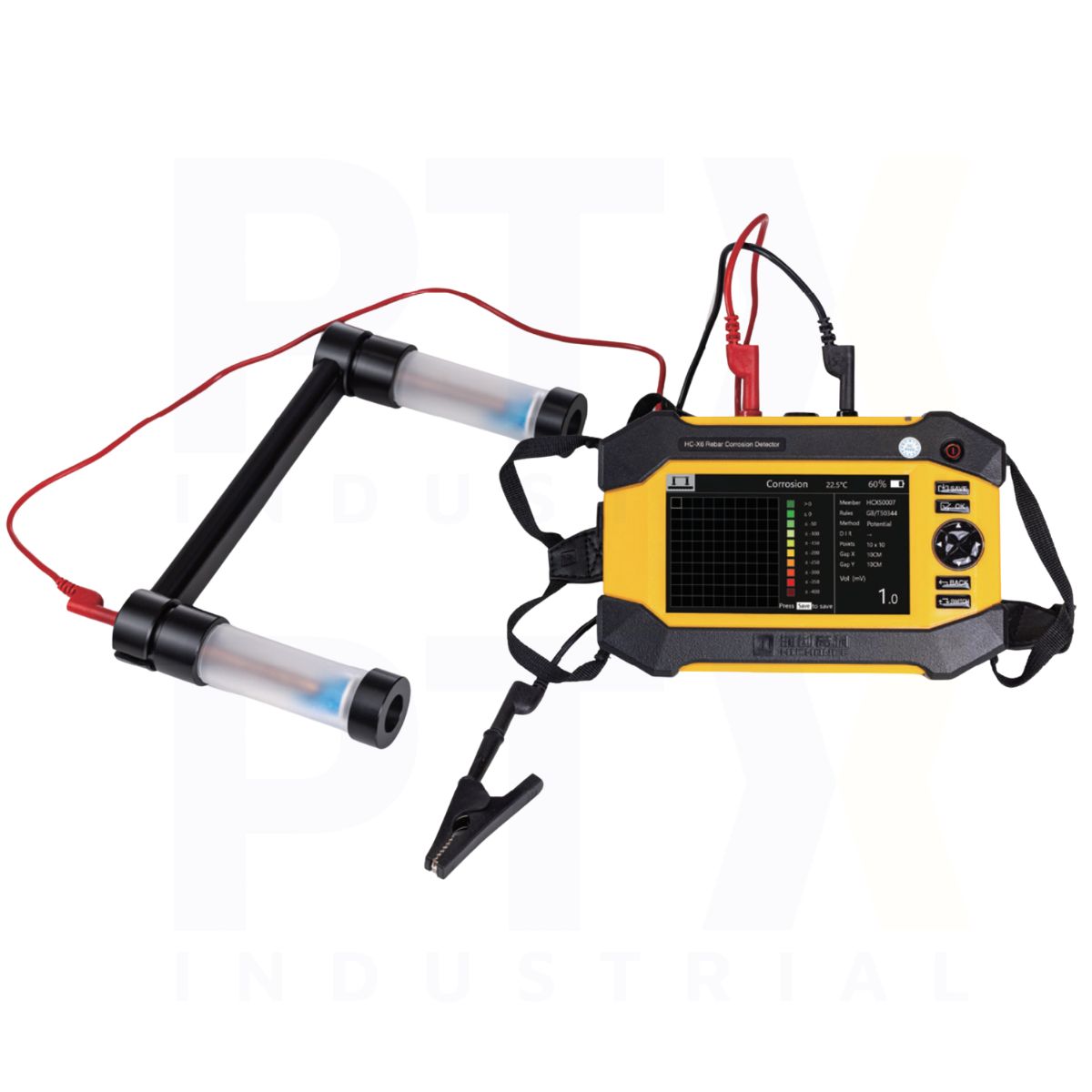

HC-X6 Professional Rebar Corrosion Detector & Half-Cell Potential Meter
The HICHANCE HC-X6 is a professional rebar corrosion testing instrument designed to assess the likelihood of reinforcing steel corrosion in concrete structures. Combining half-cell potential measurement, potential gradient measurement and concrete resistivity testing, it provides valuable data for reinforced concrete condition assessment, structural inspections and infrastructure maintenance.
Key Features
- Three Testing Methods: Half-cell potential, potential gradient and concrete resistivity measurements.
- Corrosion Potential Range: −1000 to +1000 mV with 0.1 mV resolution and ±1 mV accuracy.
- Concrete Resistivity Range: 0–20,000 kΩ·cm with 0.1 kΩ·cm resolution.
- 5-inch Colour LCD: Clear display of measurement results in graphical and digital formats.
- Real-Time Temperature Recording: Supports ambient temperature monitoring for measurement compensation.
- Adjustable Measurement Grid: Measurement point spacing from 1–100 cm.
- Data Storage: Stores up to 2,000 components for inspection records.
- Extended Battery Life: Rechargeable lithium battery providing over 48 hours of operation.
- Professional Reporting: PC software supports data analysis, processing and inspection report generation.
Comprehensive Rebar Corrosion Assessment
The HC-X6 combines three measurement methods to support evaluation of corrosion activity in reinforced concrete. Half-cell potential measurements help assess the likelihood of active corrosion, while potential gradient measurements and concrete resistivity testing provide additional information for condition assessment and maintenance planning.
High-Precision Potential & Resistivity Measurement
The instrument measures corrosion potential from −1000 to +1000 mV with ±1 mV accuracy. Its concrete resistivity measurement function supports a range of 0–20,000 kΩ·cm, allowing engineers and inspection professionals to collect complementary electrochemical measurements during reinforced concrete investigations.
Field Measurement & Data Analysis
Equipped with a 5-inch colour display, temperature recording and adjustable measurement point spacing, the HC-X6 supports systematic on-site inspections. The supplied PC analysis software enables data processing and inspection report generation for engineering assessments and asset management documentation.
Typical Applications
- Reinforced concrete corrosion condition assessment
- Half-cell potential surveys of reinforcing steel
- Concrete electrical resistivity measurement
- Bridge, tunnel and civil infrastructure inspections
- Marine and coastal concrete structure assessments
- Concrete repair planning and maintenance inspections
