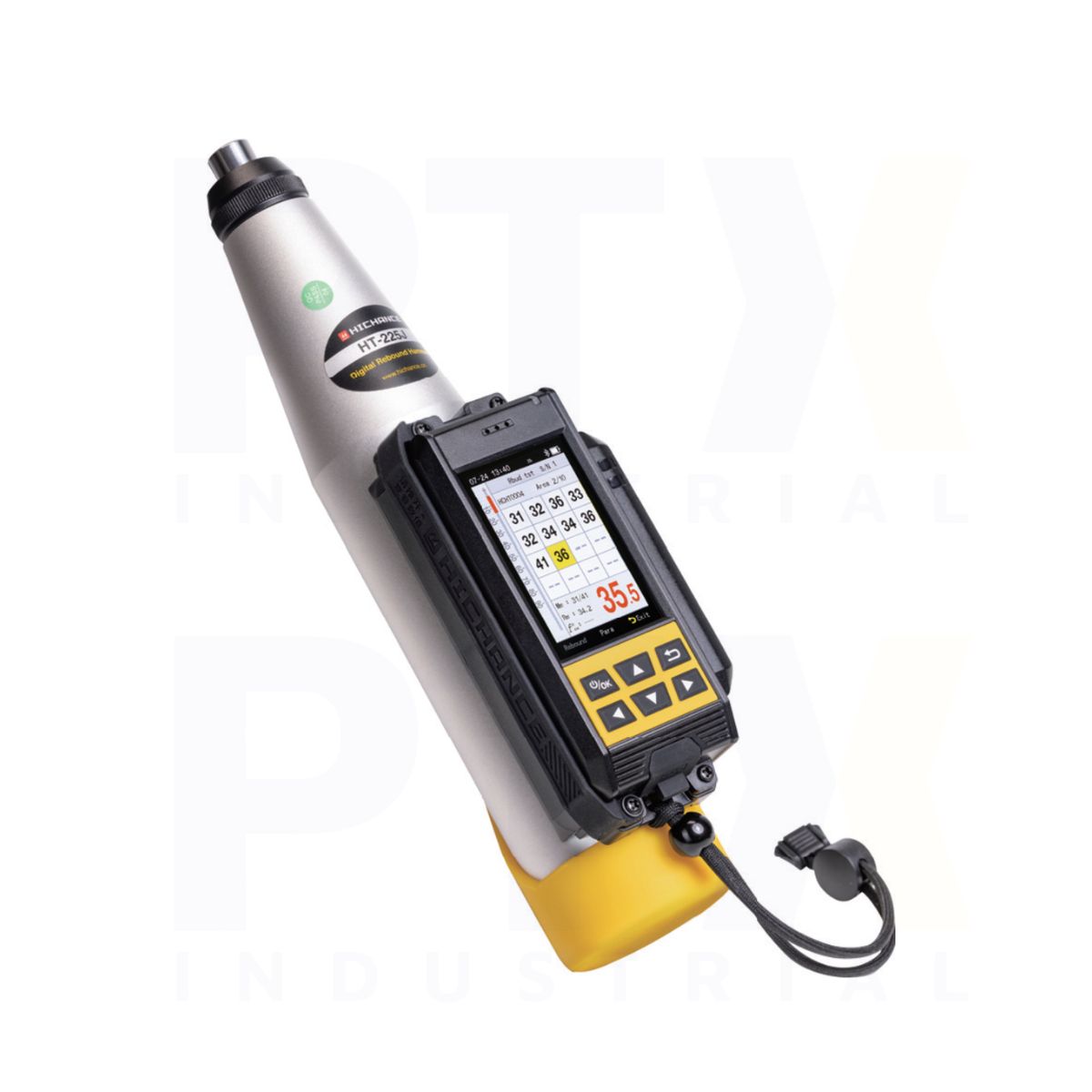

HT-225J Digital Concrete Rebound Test Hammer
The HICHANCE HT-225J is a digital concrete rebound test hammer designed for non-destructive assessment of concrete compressive strength in buildings, bridges, tunnels and other concrete structures. Combining a mechanical rebound hammer with an integrated digital data acquisition system, it supports automatic data correction, statistical analysis and convenient recording of rebound test results.
Key Features
- Nominal Impact Energy: 2.207 J for concrete rebound testing.
- Concrete Strength Range: 10–60 MPa as specified by the manufacturer.
- Digital Data Acquisition: Automatic data correction, calculation and statistical analysis.
- 2.8-inch Colour Touchscreen: 400 × 240 resolution with touchscreen and physical button operation.
- Laser Detection Module: Contactless sensing for rebound data acquisition.
- Rebound Reading Consistency: ≤±0.5 between the mechanical pointer and digital display.
- Large Data Storage: Stores up to 1,000 components, with 100 test areas per component.
- Bluetooth Connectivity: Supports compatible mobile app integration and real-time data uploads.
- Rechargeable Battery: Built-in 3,200 mAh lithium battery.
- PC Analysis Software: Supports test data processing, analysis and report generation.
Digital Concrete Rebound Testing
The HT-225J combines conventional mechanical rebound testing with electronic measurement and data processing. Its nominal impact energy of 2.207 J and manufacturer-specified concrete strength range of 10–60 MPa make it suitable for evaluating rebound characteristics and estimating concrete compressive strength using appropriate correlation methods.
Automatic Data Processing & Digital Display
The integrated digital acquisition system automatically processes rebound measurements, applies supported corrections and performs statistical calculations. The 2.8-inch colour touchscreen provides convenient access to measurement results, settings and stored inspection data.
Data Storage, Connectivity & Reporting
The HT-225J stores up to 1,000 components with a maximum of 100 test areas per component. Built-in Bluetooth enables communication with the compatible Hichuang mobile app, while dedicated PC software supports data analysis and inspection report preparation. An optional Bluetooth printer is available for on-site record printing.
Typical Applications
- Non-destructive concrete compressive strength assessment
- Concrete rebound testing of buildings and bridges
- Construction quality assurance and quality control
- Structural condition inspections and maintenance assessments
- Concrete uniformity investigations
- Testing of existing concrete structures
