▸Description

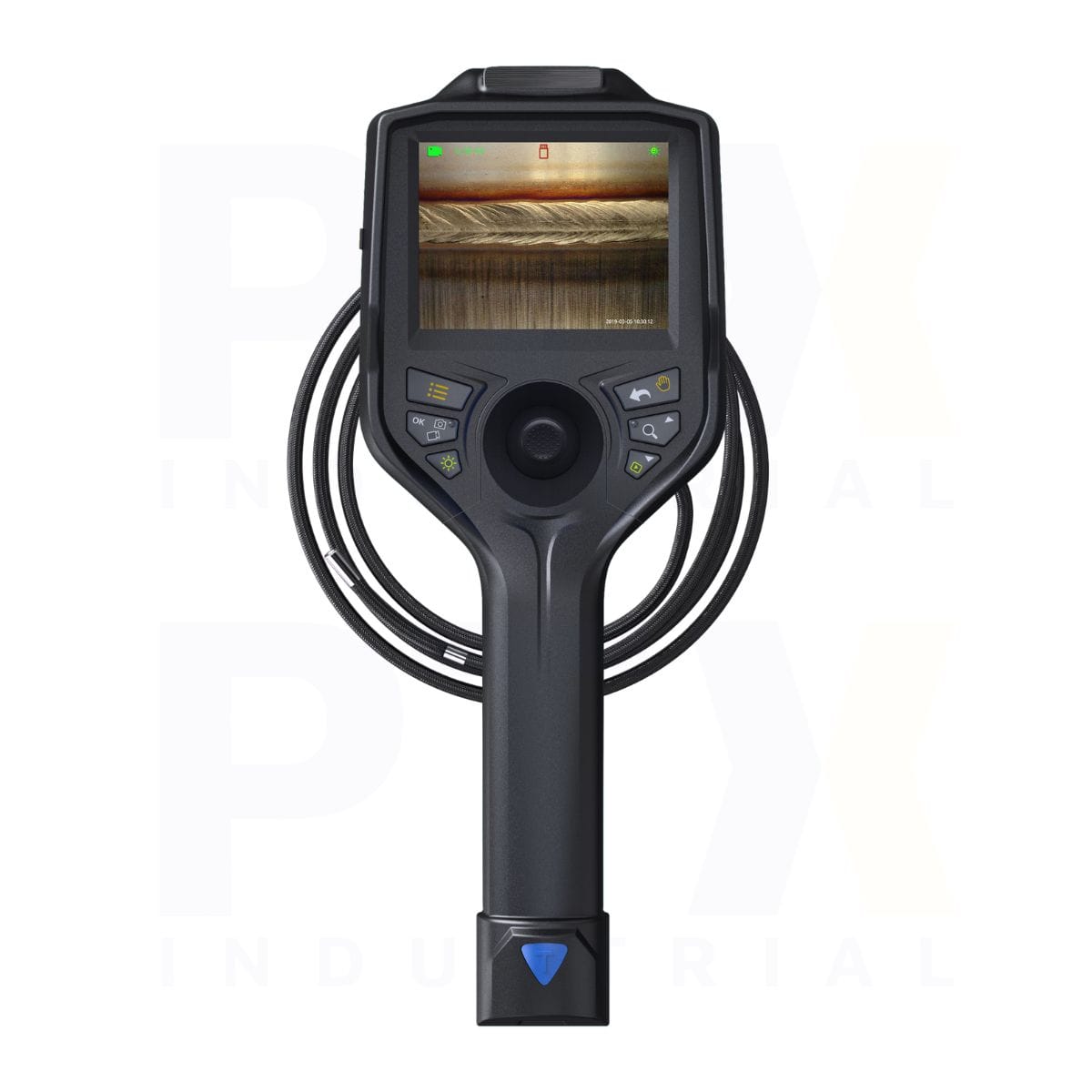

The T35H Industrial Articulating Videoscope is designed to help maintenance technicians, inspectors, and quality professionals perform fast and reliable visual inspections without disassembly. Available with either a 3.9 mm or 6.0 mm articulating probe, the T35H provides excellent maneuverability and image quality for inspecting machinery, pipelines, welds, castings, automotive components, turbines, heat exchangers, and other hard-to-reach areas.
The advanced 360° joystick-controlled articulation system allows precise probe positioning with a maximum bending angle of up to 190°, enabling users to navigate around obstacles and inspect complex internal structures. The high-resolution 1-megapixel camera captures clear images and videos at 1280 × 720 resolution, while the wide 120° field of view helps maximise inspection coverage.
Built for demanding industrial environments, the probe and insertion tube are rated IP67 and protected by a durable buffer system between the probe and handle to improve service life. The lightweight handheld design provides comfortable operation during extended inspections while maintaining excellent portability.
The T35H features adjustable LED illumination with brightness up to 100,000 lux (6.0 mm probe), ensuring clear visibility in dark inspection environments. Images and videos can be stored directly to the supplied TF card and transferred via Micro USB or HDMI output for reporting and analysis.
With up to 8 hours of battery operation, interchangeable probes and insertion tubes, multiple language support, and rugged alloy housing construction, the T35H delivers the flexibility and reliability required for industrial maintenance, quality assurance, and asset integrity inspections.
Key Features
- Available with 3.9 mm or 6.0 mm articulating probes
- 360° joystick-controlled articulation
- Maximum articulation angle up to 190°
- 1-megapixel HD camera
- 1280 × 720 image and video resolution
- Wide 120° field of view
- Up to 100,000 lux LED illumination
- 3.5-inch TFT LCD display
- IP67-rated probe and insertion tube
- Up to 8 hours continuous operation
- HDMI video output and Micro USB connectivity
- Interchangeable probes and insertion tubes
- Lightweight portable design
- Multiple language support
- TF card image and video storage
- Optional articulation lock and high-temperature alarm
