| General Information | |
| Category | Coating Thickness Gauge |

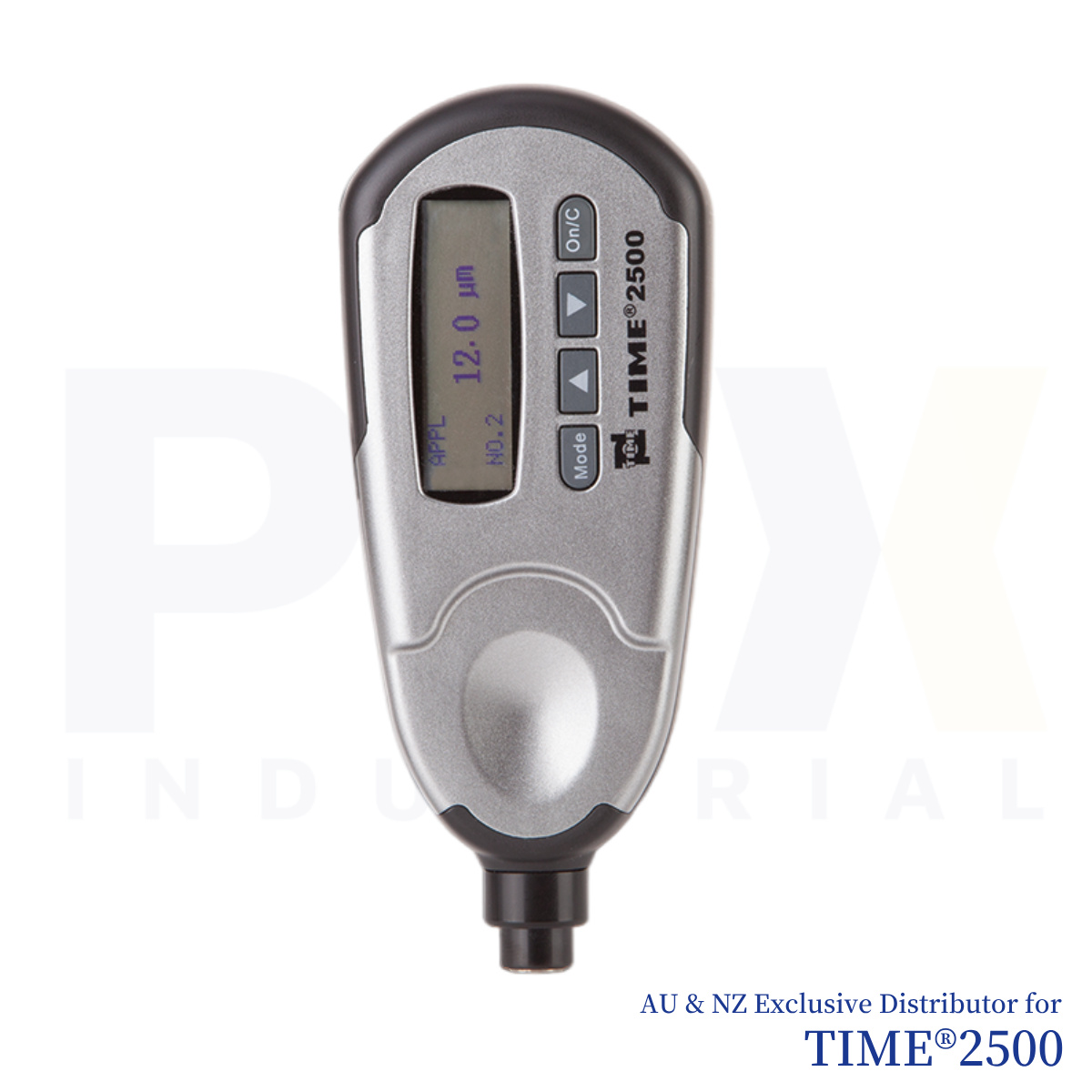

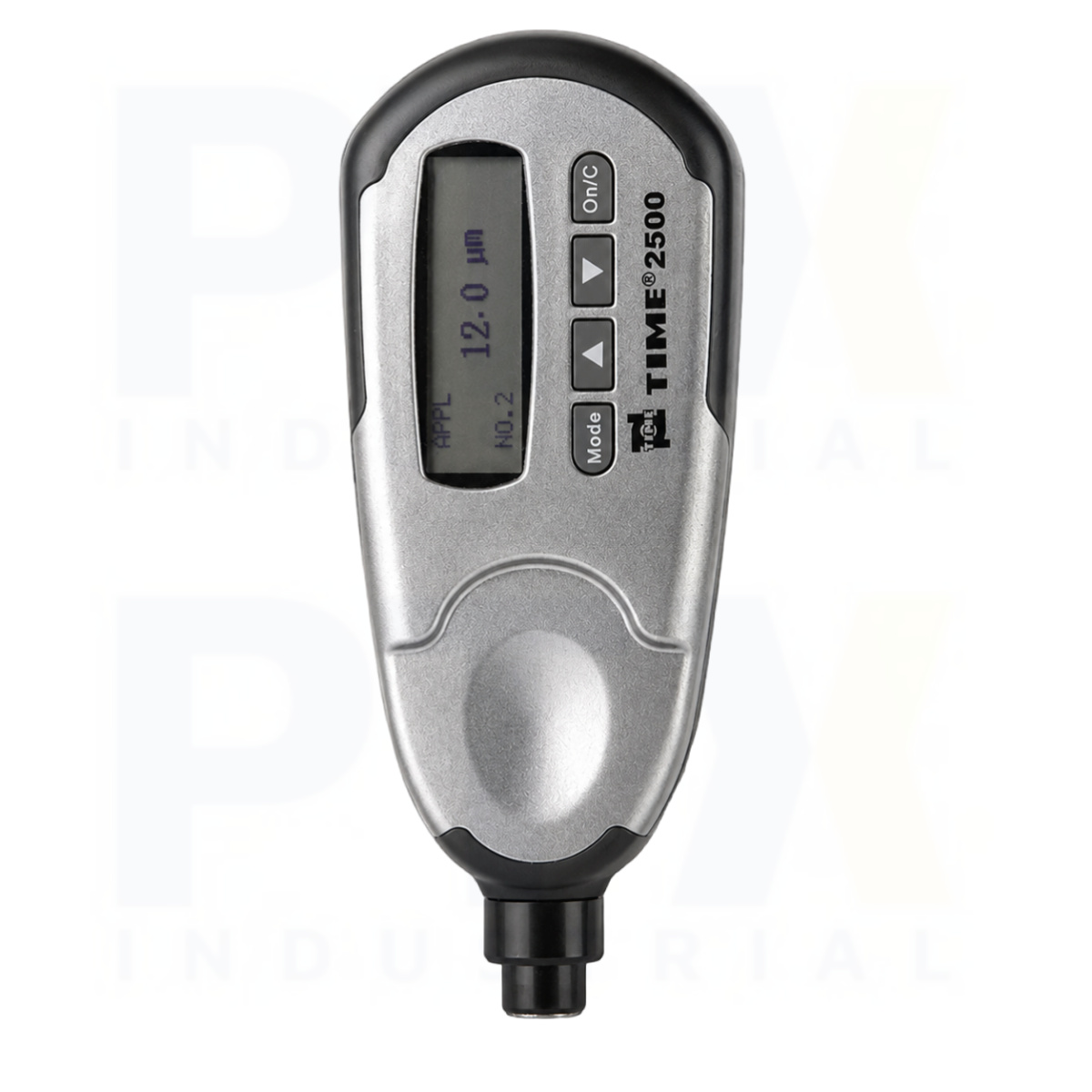

| Model | TIME®2500 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ TIME2500 is equipped with Probe F, using the magnetic induction principle to measure the thickness of non-magnetic coatings (e.g., paint, plastic, enamel, copper, zinc, aluminum, chrome) on magnetic substrates (e.g., iron, nickel) ▪ Supports zero-point calibration and two-point calibration for improved measurement accuracy ▪ Two working modes: DIRECT and BATCH; two measuring modes: CONTINUOUS and SINGLE ▪ Statistical functions include mean, maximum, minimum, number of tests, and standard deviation ▪ Memory capacity of up to 500 data points ▪ Supports deletion of current data, calibration data, limit data, or all stored data ▪ Low battery indication and error alarm ▪ Audible buzzer indication during operation ▪ Backlit display for improved visibility ▪ Automatic or manual power-off function |
| Technical Specification | |
| Measuring Method | Magnetic induction (F) |
| Measuring Range | 0–1250 µm |
| Display Resolution | 0.1 µm |
| Tolerance (Zero Calibration) | ± (3% H + 1) |
| Tolerance (Two-point Calibration) | ± [(1%–3%) H + 1] |
| Min. Curvature Radius (mm) | Convex: 1.5; Concave: 9 |
| Min. Testing Area (mm) | Ø7 |
| Critical Substrate Thickness (mm) | 0.5 |
| Power Supply | 2 × AAA 1.5 V batteries |
| Operating Conditions | 0–40 °C; humidity 20–90% |
| Dimensions (mm) | 145 × 60 × 28 |
| Weight (g) | 132 |
| Standard Delivery | |
| Main Unit | 1 |
| Calibration Foil Set | 1 |
| Substrate | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
