▸Description

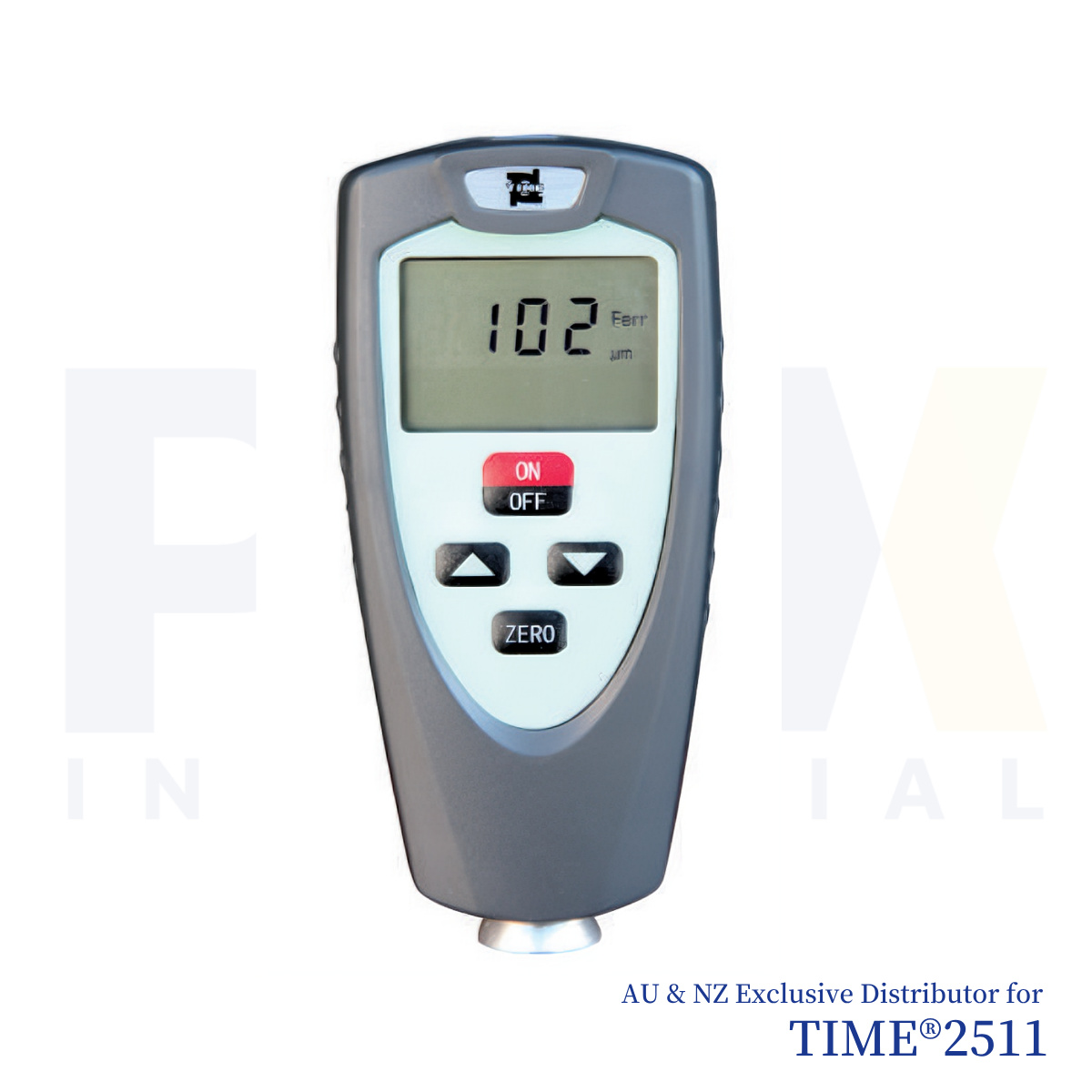

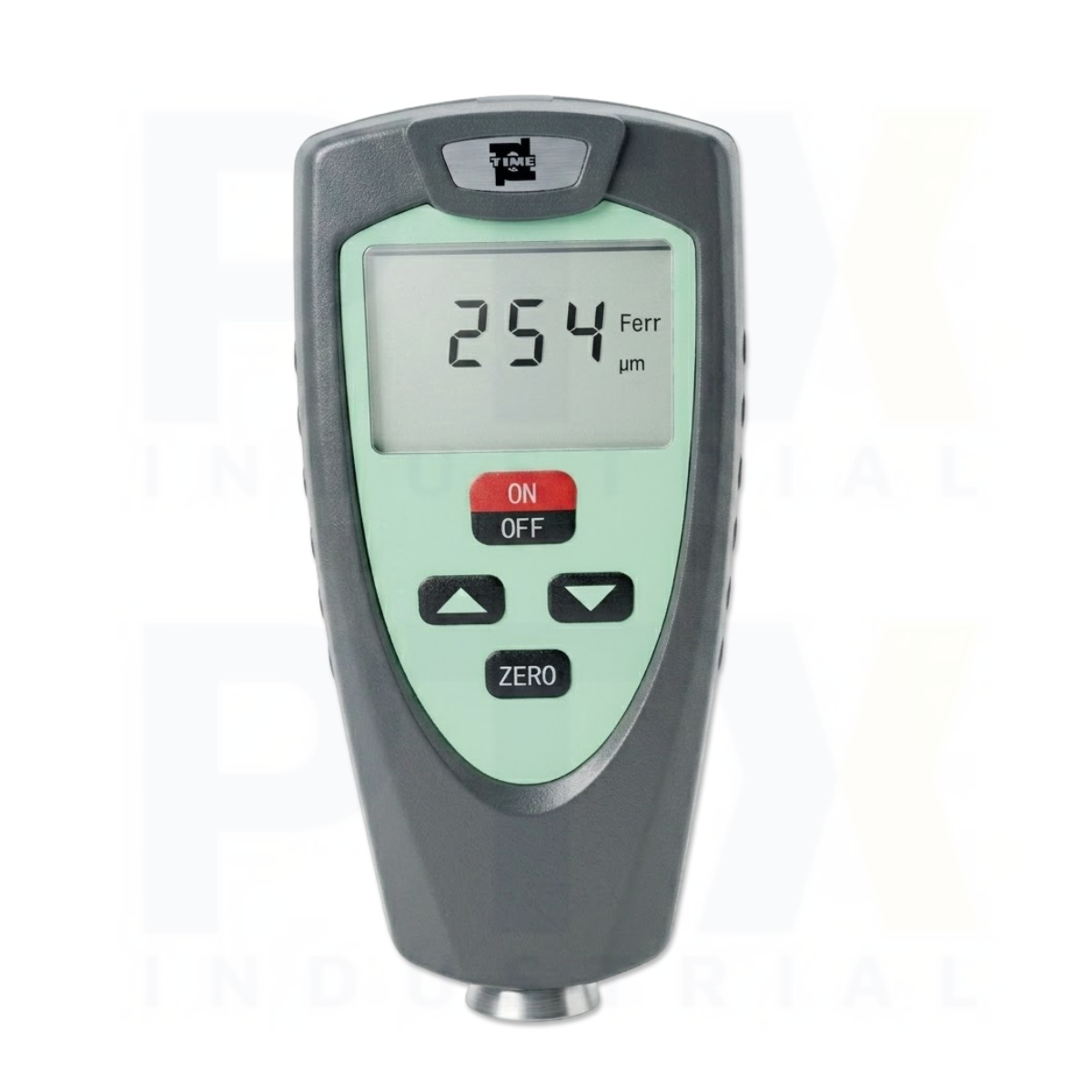

Professional Coating Thickness Gauge
The TIME2511 Coating Thickness Gauge is a professional coating thickness gauge designed for fast, accurate, and non-destructive coating thickness measurement on ferrous substrates. Using magnetic induction technology (F), the TIME2511 measures the thickness of non-magnetic coatings such as paint, powder coating, enamel, plastic, galvanising, and other protective coatings applied to steel and iron surfaces. Its compact design, lightweight construction, and simple operation make it an ideal solution for manufacturing, automotive refinishing, corrosion protection, fabrication, quality control, and field inspection.
The TIME2511 Coating Thickness Gauge measures coating thickness from 0 to 1250 μm while offering three selectable display resolutions of 1 μm, 5 μm, or 10 μm to suit different inspection requirements. Furthermore, simple zero-point calibration enables quick instrument setup, while high-speed measurement acquisition provides fast and reliable coating thickness readings for production environments. The instrument operates in convenient single-point measurement mode, making it particularly suitable for routine inspection and incoming quality control.
Designed for Industrial Coating Inspection
The compact handheld design allows comfortable one-handed operation during daily inspections. In addition, the instrument stores up to 600 measurements organised into six groups, allowing inspectors to review measurement history and compare coating thickness results across different workpieces or inspection locations.
The TIME2511 Coating Thickness Gauge supports convenient metric and imperial unit conversion, making it suitable for international inspection standards and customer requirements. Moreover, automatic power-off helps maximise battery life during field operation, while its compact size and lightweight 100 g design make the instrument easy to carry throughout the working day. The TIME2511 is an economical and reliable coating thickness gauge for routine coating inspection on steel and iron substrates.
Key Features
- Professional coating thickness gauge using magnetic induction technology
- Designed for non-magnetic coatings on ferrous substrates
- Measuring range from 0 to 1250 μm
- Three selectable resolutions of 1 μm, 5 μm, and 10 μm
- Fast single-point coating thickness measurement
- Simple zero-point calibration
- Stores up to 600 measurements in six groups
- Metric and imperial unit selection
- Automatic power-off for extended battery life
- Compact lightweight design weighing only 100 g
- Ideal for paint, powder coating, galvanising, enamel, and protective coating inspection
- Suitable for automotive, manufacturing, fabrication, corrosion protection, and quality control
| General Information | |
| Category | Coating Thickness Gauge |
| Model | TIME2511 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ TIME2511 adopts the magnetic induction (F) method for coating thickness measurement ▪ TIME2511 operates in single-point measurement mode ▪ Easy zero-point calibration ▪ TIME2511 features three selectable resolutions for different applications ▪ High-speed data acquisition, holds 600 readings (100 per group) ▪ Automatic power-off function ▪ Easy unit conversion between mm and inch |
| Technical Specification | |
| Probe Type | F |
| Measuring Method | Magnetic induction |
| Measuring Range | 0–1250 µm |
| Minimum Resolution | 1 µm, 5μm, 10μm |
| Tolerance (Zero Calibration) | ± (3% H + 1) µm; ± (3% H + 1.5) µm, ± (3%H+10)μm |
| Min. Curvature Radius (mm) | Convex: 1.5 |
| Min. Testing Area (mm) | Ø7 |
| Critical Substrate Thickness (mm) | 0.5 |
| Power Supply | 2 × AAA batteries |
| Operating Temperature (°C) | 0–40 |
| Dimensions (mm) | 110 × 50 × 23 |
| Weight (g) | 100 |
| Standard Delivery | |
| Main Unit | 1 |
| Substrate | 1 |
| Calibration Foil (TT210) | 1 |
| Waist Pack (for Main Unit) | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
