| General Information | |
| Category | Coating Thickness Gauge |

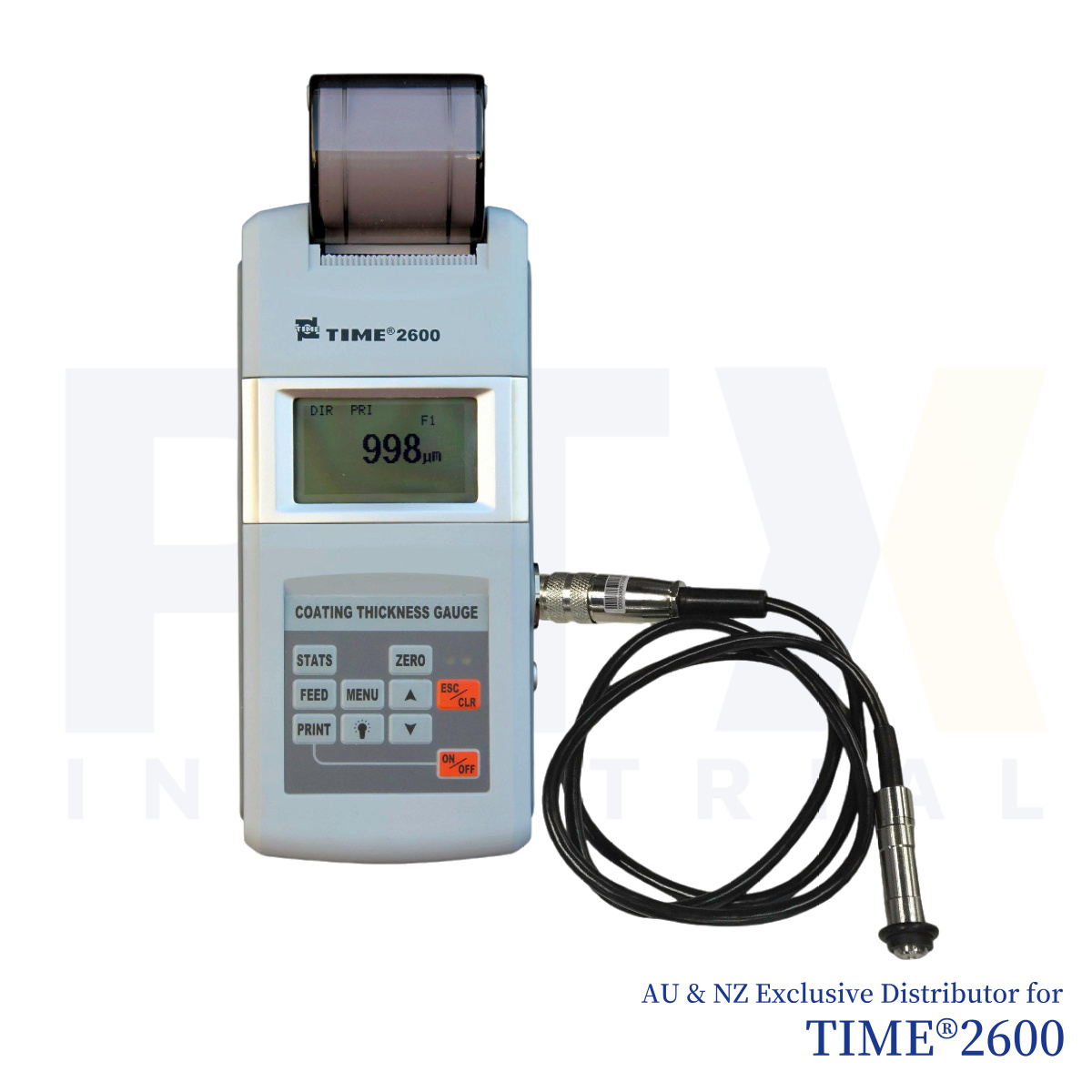

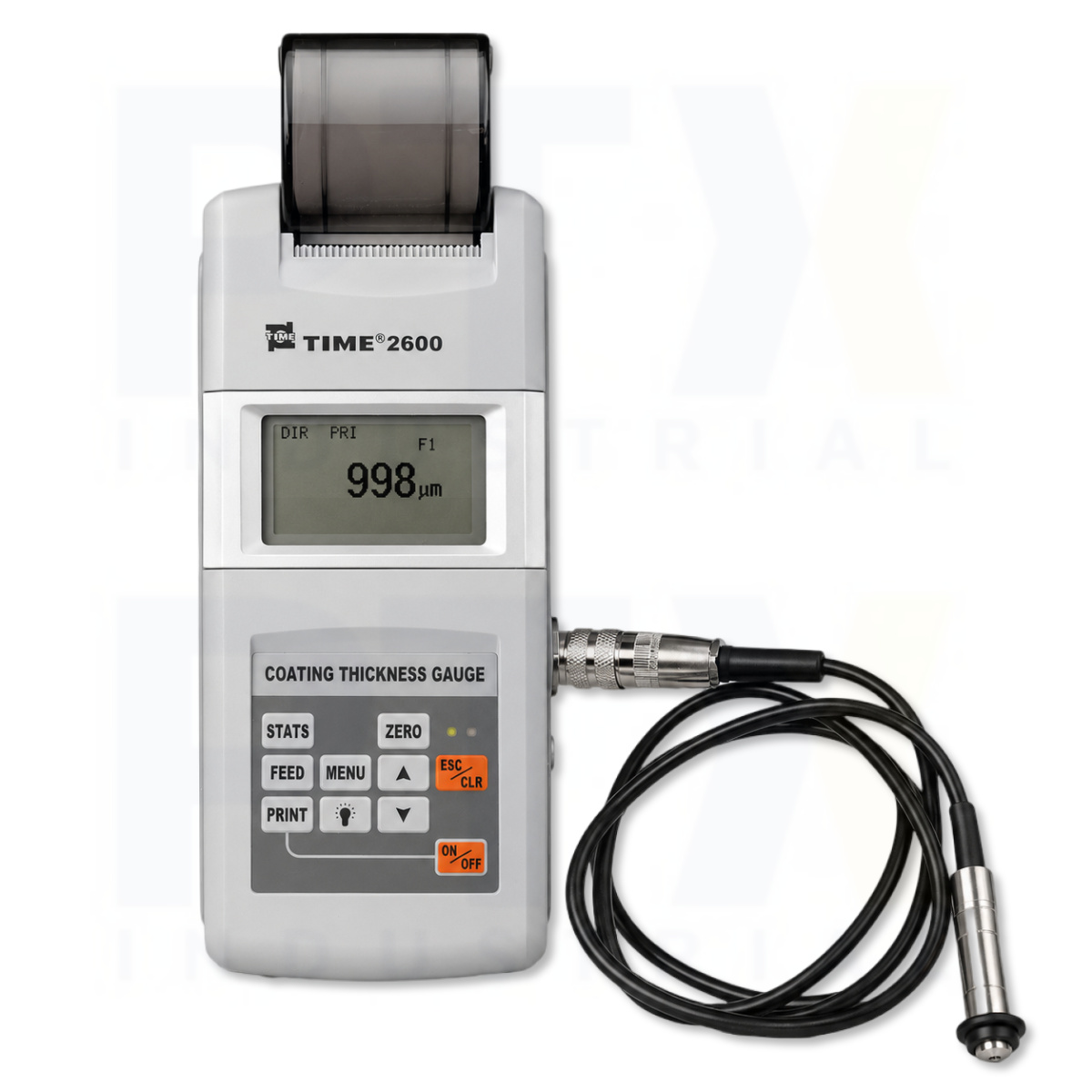

| Model | TIME®2600 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ Dual operating principles: magnetic induction (ferrous) and eddy current (non-ferrous) for non-destructive measurements ▪ Six types of probes available for various applications ▪ Two working modes: DIRECT and BATCH; two measuring modes: CONTINUOUS and SINGLE ▪ Statistical functions include mean, maximum, minimum, number of tests, and standard deviation ▪ Memory capacity of up to 640 data points ▪ Two calibration methods for improved measurement accuracy ▪ Integrated printer for on-site printing of statistical values ▪ Low battery indication and error alarm ▪ Backlit display for improved visibility ▪ Automatic or manual power-off function ▪ Compliant with DIN, ISO, ASTM, and BS standards |
| Technical Specification | |
| Standards | DIN, ISO, ASTM, BS |
| Calibration | Zero calibration and foil calibration |
| Interface | RS232 |
| Statistics | Number of measurements, mean, standard deviation, maximum, minimum |
| Data Memory | 640 readings |
| Limits | Adjustable with alarm |
| Power Supply | NiMH rechargeable battery |
| Operating Conditions | Temperature: 0–40 °C; humidity: 20–90%; no strong magnetic field |
| Dimensions (mm) | 230 × 86 × 47 |
| Standard Delivery | |
| Main Unit | 1 |
| Probe (F1 or N1) | 1 |
| Substrate | 1 |
| Calibration Foil | 1 |
| Charger | 1 |
| Printing Paper | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
