| General Information | |

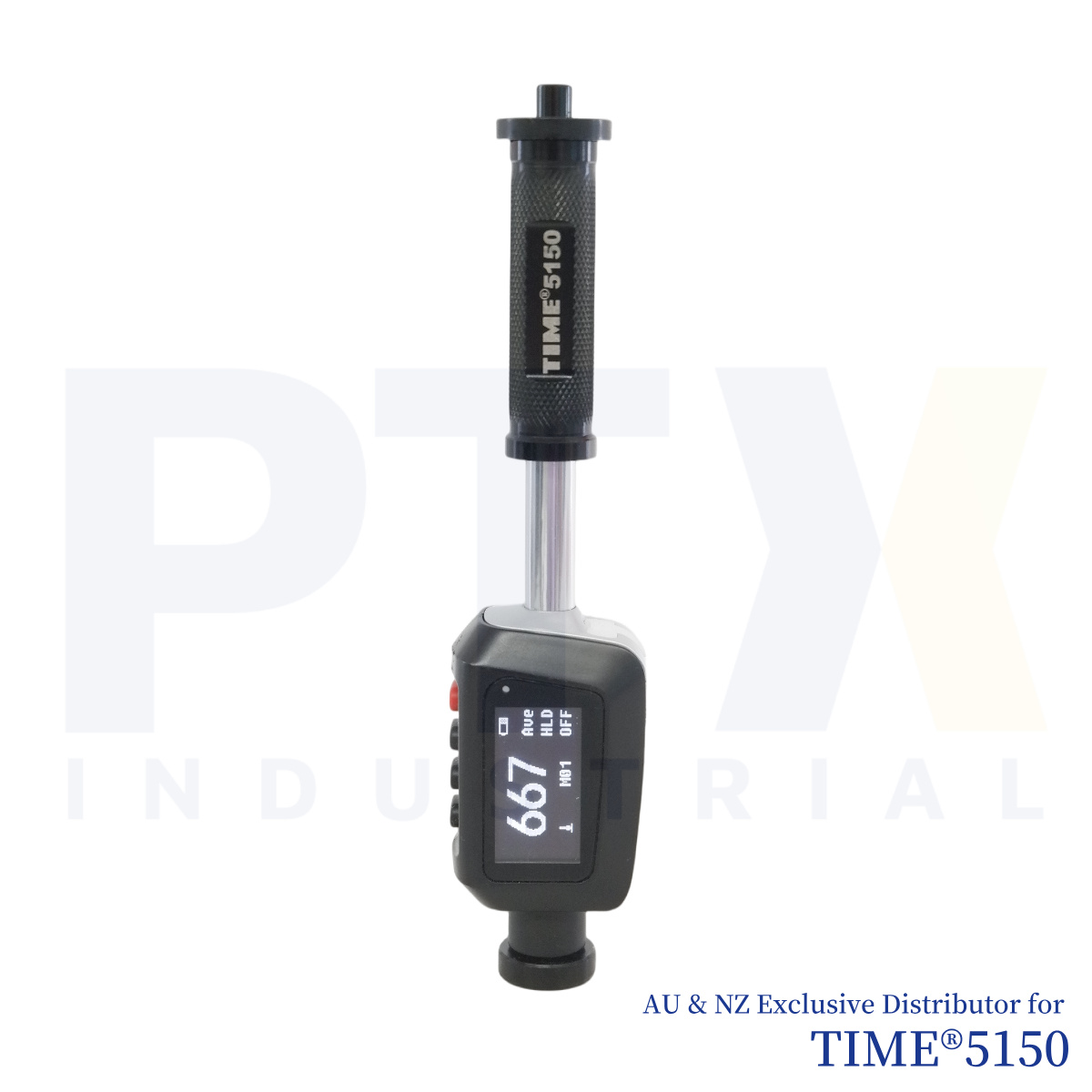

| Category | Portable Leeb Hardness Tester |
| Model | TIME®5150 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ Compact size for portable and convenient operation ▪ Conversion of common hardness scales (HL, HV, HB, HRC, HRB, HS) and tensile strength ▪ 128 × 64 graphic dot matrix OLED display ▪ Custom material selection function ▪ Automatic identification of common impact directions ▪ Storage of up to 100 groups of measurement averages ▪ Upper and lower hardness limits can be preset ▪ Software calibration function ▪ Supports connection to Bluetooth printer for direct printing of measurement data ▪ Built-in rechargeable lithium battery with Type-C charging |
| Technical Specification | |
| Measuring Range | 170–960 HLD |
| Tolerance | ±6 HLD (at 790 ± 40 HLD) |
| Repeatability | 6 HLD (at 790 ± 40 HLD) |
| Measuring Direction | 360° |
| Hardness Scales | HL, HB, HRB, HRC, HV, HS, HRA |
| Display | OLED display |
| Data Storage | 100 groups |
| Upper/Lower Limit Setting | 170–960 HLD |
| Custom Materials | 5 |
| Wireless Communication | Bluetooth 4.2 |
| Power Supply | 5 V / 1 A |
| Dimensions (mm) | 177 × 38 × 29 |
| Weight (g) | 120 |
| Standard Delivery | |
| Main Unit | 1 |
| Test Block (HLD) | 1 |
| Small Support Ring | 1 |
| Charger | 1 |
| Cleaning Brush | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
