▸Description

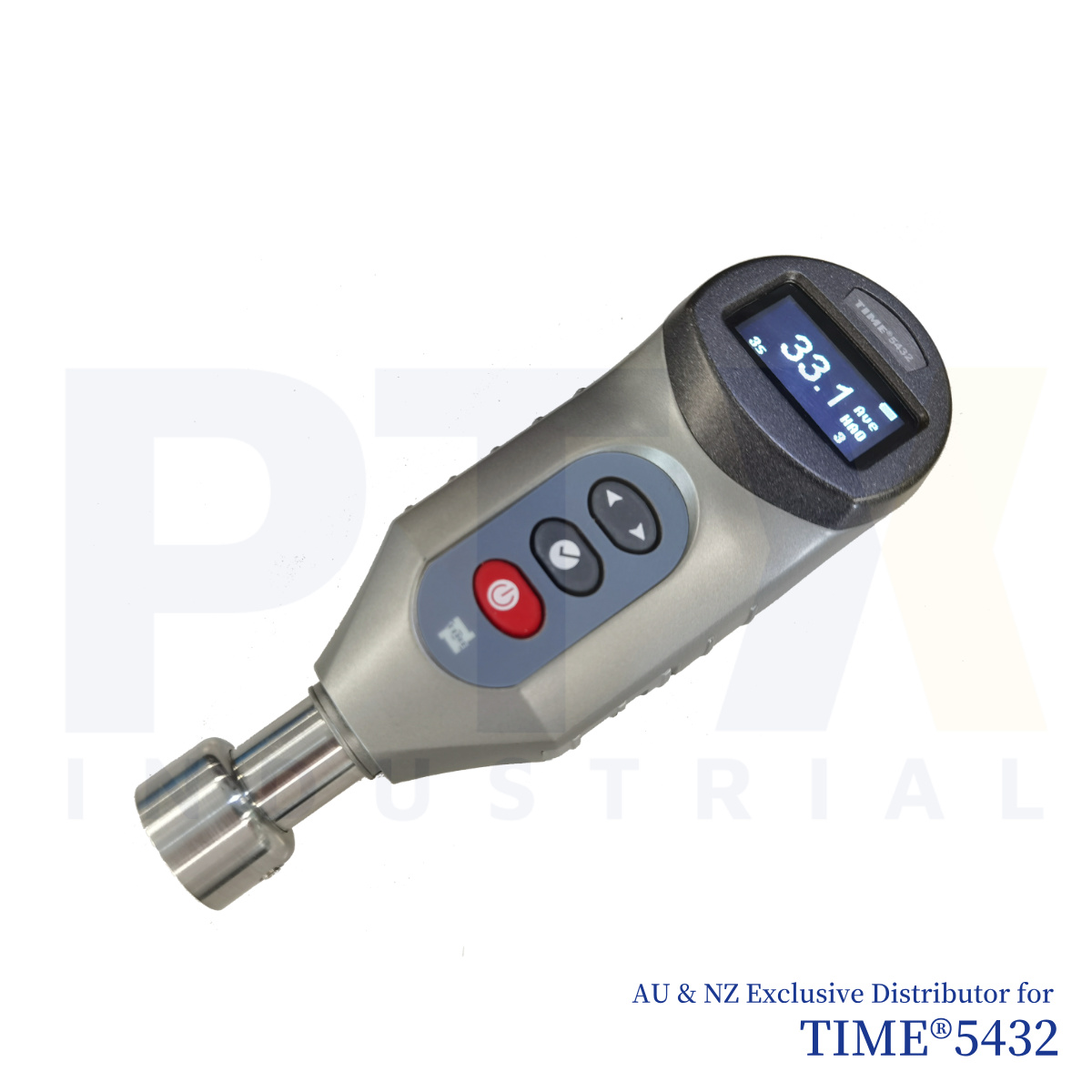

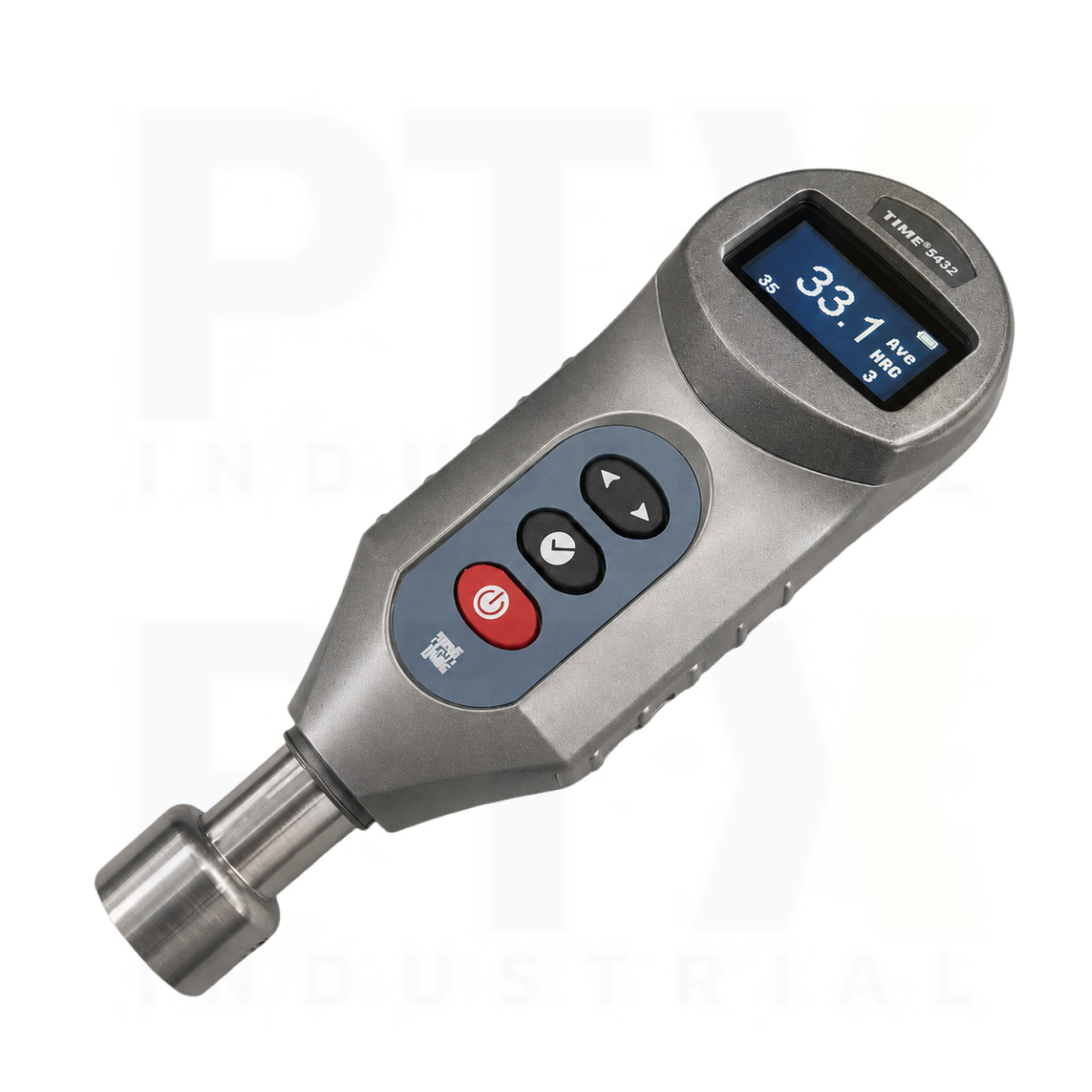

Professional Portable Shore Hardness Tester
The TIME5432 Shore Hardness Tester is a professional portable Shore hardness tester designed for accurate hardness measurement of ultra-soft materials such as sponge, foam, soft rubber, cellular rubber, and other low-hardness elastomeric materials. Designed for manufacturing, quality control, laboratories, and material inspection, the TIME5432 provides reliable Shore AO hardness measurements with excellent repeatability. Equipped with a high-precision LVDT displacement sensor, the instrument delivers stable performance and dependable accuracy, making it suitable for demanding industrial and laboratory applications.
The TIME5432 Portable Shore Hardness Tester measures across the full Shore AO range from 0 to 100 HAO with a resolution of 0.1 HAO. Furthermore, the instrument offers three measurement modes, including real-time measurement, peak value hold, and timed hold, allowing operators to select the most suitable testing method for different materials and inspection requirements. Automatic zero-point calibration helps maintain measurement accuracy while reducing preparation time before testing.
Designed for Industrial Inspection
The bright OLED display provides clear hardness readings together with an intuitive menu interface for fast and convenient operation. In addition, programmable upper and lower hardness limits with audible alarm notifications simplify PASS/FAIL inspections during production and batch testing. The instrument automatically calculates average values while removing abnormal readings, helping improve measurement consistency and reduce operator influence.
The TIME5432 Portable Shore Hardness Tester stores up to 200 averaged measurement records for efficient quality documentation and inspection management. Moreover, optional PC software enables measurement data to be transferred via USB to Microsoft Word or Excel for reporting, analysis, and long-term record keeping. The built-in rechargeable battery provides up to 24 hours of continuous operation, making the TIME5432 an ideal solution for routine Shore AO hardness testing in both laboratory and production environments.
Key Features
- Professional portable Shore hardness tester for sponge, foam, soft rubber, and low-hardness elastomeric materials
- High-precision LVDT displacement sensor for excellent accuracy and repeatability
- Measures Shore AO hardness from 0 to 100 HAO
- Three operating modes including real-time, peak hold, and timed hold
- Automatic zero-point calibration
- OLED display with intuitive menu operation
- Programmable upper and lower hardness limits with audible alarm
- Automatic average calculation and outlier removal
- Stores up to 200 averaged measurement records
- USB data transfer with optional PC software for Word and Excel reporting
- Built-in rechargeable battery with up to 24 hours of continuous operation
- Ideal for manufacturing, laboratories, quality control, and incoming material inspection
| General Information | |
| Category | Portable Shore Hardness Tester |
| Model | TIME5432 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ TIME®5432 Shore AO hardness tester for measuring low-hardness materials such as soft rubber and sponge ▪ Equipped with LVDT displacement sensor for high accuracy and reliable performance in harsh environments ▪ OLED display provides clear hardness value readout with menu-based operation ▪ Automatic zero-point calibration ▪ Three operating modes: real-time, peak value hold, and timed hold ▪ Peak value hold mode automatically locks the maximum hardness value ▪ Timed hold mode allows setting from 1 to 60 seconds, with automatic timing and value locking ▪ In lock modes, upper and lower limits can be preset with alarm indication when exceeded; supports average calculation and automatic removal of outliers ▪ Stores up to 200 averaged lock values ▪ Optional software enables data transfer to PC via USB in Microsoft Word or Excel format |
| Technical Specification | |
| Application | Hardness < 20 HA |
| Hardness Scale | Shore AO |
| Measuring Range | 0–100 HAO |
| Tolerance | ≤ ±1 HAO (20–90) |
| Display Resolution | 0.1 HAO |
| Data Output | USB |
| Power Supply | Built-in rechargeable battery |
| Operating Temperature (°C) | 0–40 |
| Continuous Operating Time (h) | 24 |
| Dimensions (mm) | 173 × 56 × 42 |
| Weight (g) | 200 |
| Standard Delivery | |
| Main Unit | 1 |
| Test Block | 1 |
| Power Adapter | 1 |
| Operation Stand (for TIME5433) | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
