| General Information | |

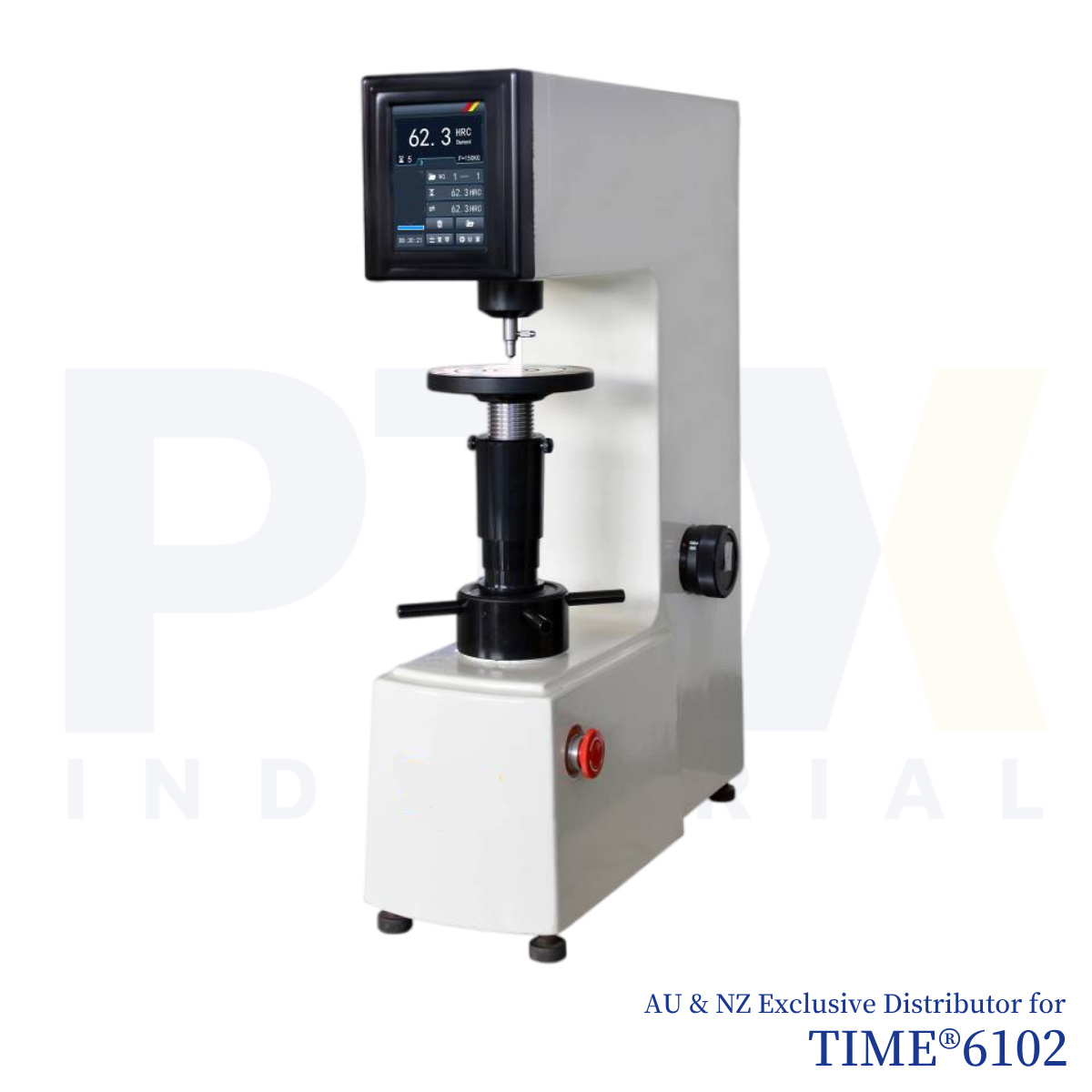

| Category | Digital Rockwell Hardness Tester |
| Vendor Model | TIME®6102 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | TIME®6102 Digital Rockwell hardness tester adopts the high resolution color touch screen with high brightness display. It has a good reliability, excellent operation and easy watching, so it is a high-tech product combining the mechanic and electric features. It can show and set the present scale, test force, test indenter, dwell time and hardness conversion; the main function is as follows: • Selection of all the Rockwell scales; • Conversion scales of different kinds of hardness; • Display backlight adjustable with energy saving mode; • Real time data saving in the folder, totally six folders, the data can be arbitrary deleted and printed out; • Test results can be saved in real time with automatic calculation of maximum, minimum and average value; • The interface is visual and clear, very easy to operate; • With RS232 interface for connecting to the computer. |
| Application | Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. |
| Technical Specification | |
| Initial test force | 10kgf(98.07N) |
| Total test force | 60kgf(588.4N) 100kgf(980.7N) 150kgf(1471N) |
| Loading method | Automatic (Loading / Dwell / Unloading) |
| Hardness reading | Touch Screen Display |
| Test scale | HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV |
| Conversion scale | HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW |
| Data output | Built-in Printer, RS232 Interface |
| Resolution | 0.1HR |
| Dwell time | 0~60s |
| Max. Height of Specimen | 185mm |
| Throat | 165mm |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245 |
| Power source | 220-240 V~, 50Hz |
| Dimension (mm) | 520×215×700, Packing Dimension: 650×370×950 |
| Weight (kg) | Net Weight: 78, Gross Weight: 100 |
| Standard Delivery | |
| Main unit | 1 |
| Diamond rockwell indenter | 1 |
| ф1.588mm ball indenter | 1 |
| Large,midlle plane test table, V-shaped test table | 1 |
| Standard rockwell hardness block | 3 |
| Fuse 2A | 2 |
| Power cable | 1 |
| Weight A, B, C | 1 |
| Level | 1 |
| Horizontal regulating screw | 4 |
| Inner hexagon spanner | 1 |
| Spanner | 1 |
| Anti-dust cover | 1 |
| Usage instruction manual | 1 |
