▸Description

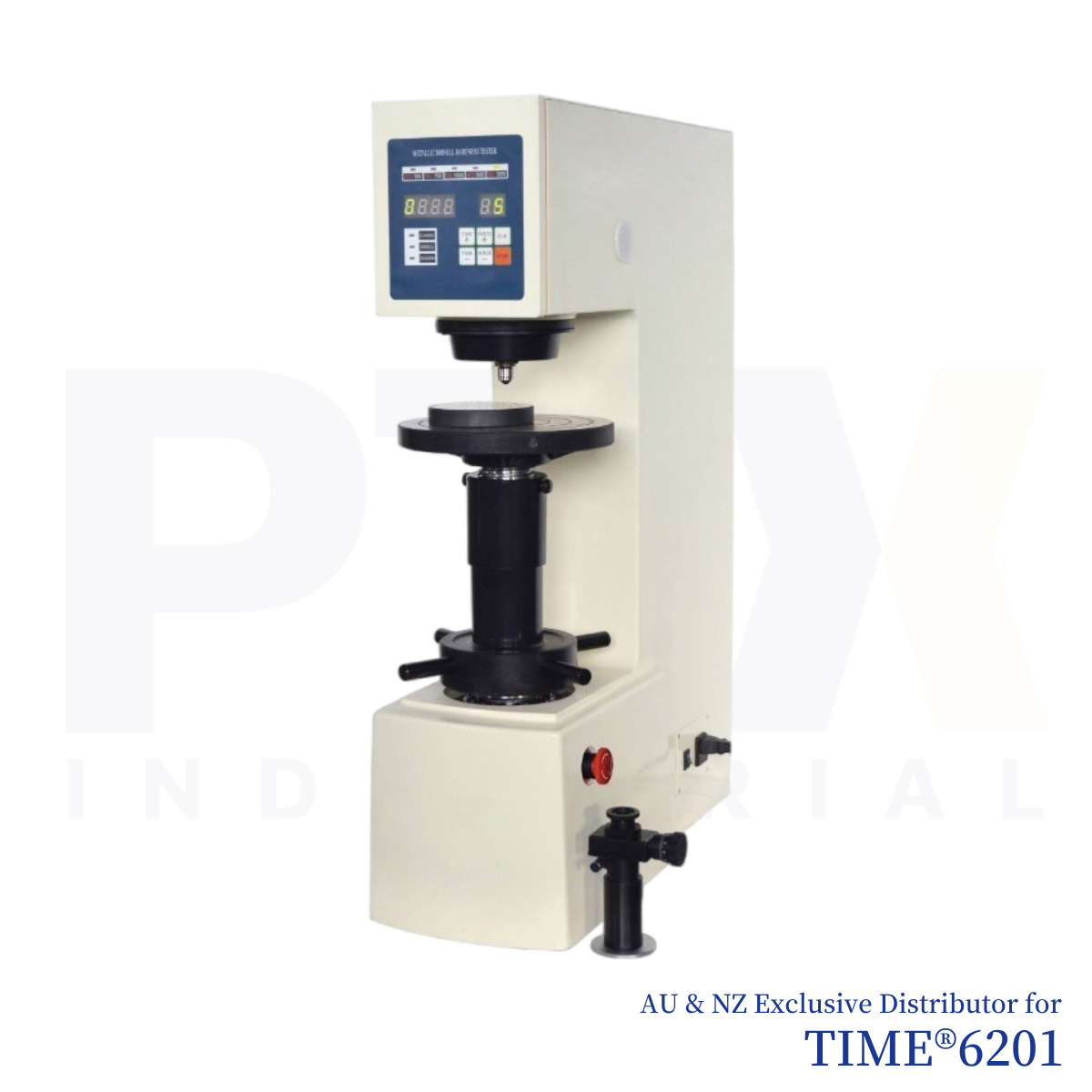

Professional Electronic Brinell Hardness Tester
The TIME6201 Electronic Brinell Hardness Tester is a professional automatic Brinell hardness tester designed for precise hardness testing of cast iron, steel, non-ferrous metals, soft alloys, and selected non-metallic materials. Combining a precision mechanical structure with an advanced load cell control system, the TIME6201 delivers highly accurate, repeatable, and reliable Brinell hardness measurements for manufacturing, quality control, research laboratories, and industrial inspection. Its electronic closed-loop loading system eliminates the need for traditional weights while providing stable test force control throughout every test.
The TIME6201 Electronic Brinell Hardness Tester applies test force using a servo-controlled motor and a high-precision load cell with 0.5‰ force accuracy. Furthermore, the integrated CPU continuously monitors and automatically compensates for any test force deviation during operation, ensuring excellent repeatability and measurement consistency. Test force and dwell time can be selected directly using the touch keypad, allowing operators to quickly configure the instrument for different Brinell hardness testing requirements.
Designed for Accurate Brinell Hardness Testing
The TIME6201 supports Brinell test forces from 62.5 kgf up to 3000 kgf, covering a hardness range of 3.18 to 653 HBW. Its robust frame, large testing capacity, and precision loading system make it suitable for testing cast iron, carbon steel, alloy steel, aluminium alloys, copper alloys, rigid plastics, bakelite, and other engineering materials. The standard 20× measuring microscope enables accurate indentation measurement, while compatibility with the optional V1.0 Brinell Image Automatic Measuring System further improves inspection efficiency and measurement accuracy.
Designed for demanding industrial environments, the TIME6201 Electronic Brinell Hardness Tester complies with ISO 6506, ASTM E10, and JIS Z2243 standards. The instrument offers reliable electronic force control, excellent long-term stability, and consistent hardness testing performance for production, laboratories, and quality assurance applications.
Key Features
- Professional electronic Brinell hardness tester
- Closed-loop electronic load cell control system
- Automatic motorised test force application without weights
- High-precision 0.5‰ load cell with automatic force compensation
- Touch keypad for direct selection of test force and dwell time
- Test forces from 62.5 kgf to 3000 kgf
- Brinell hardness range from 3.18 to 653 HBW
- Supplied with a 20× reading microscope for indentation measurement
- Compatible with the optional V1.0 Brinell Image Automatic Measuring System
- Excellent repeatability and long-term measurement stability
- Suitable for metals, soft alloys, rigid plastics, and bakelite
- Complies with ISO 6506, ASTM E10, and JIS Z2243
| Technical Specification | |
| Test Force | 612.9N(62.5kgf) 4903N(500kgf) 980.7N(100kgf) 7355N(750kgf) 1226N(125kgf) 9807N(1000kgf) 1839N(187.5kgf) 14710N(1500kgf) 2452N(250kgf) 29420N(3000kgf) |
| Test Range | 3.18~653HBW |
| Hardness Reading | Check Hardness Table |
| Microscope | 20× Reading Microscope |
| Minimum Division Value of Drum Wheel | 5μm |
| Dwell Time | 0~60s |
| Max. Height of Specimen | 205mm |
| Throat | 135mm |
| Power Supply | 220-240V~, 50Hz |
| Execute Standard | ISO 6506, ASTM E10-12, JIS Z2243 |
| Dimension | 545×235×755mm Packing Dimension: 650×435×1020mm |
| Weight | Net Weight: 130kg Gross Weight: 160kg |
| Standard Delivery | |
| Main unit | 1 |
| φ2.5,φ5,φ10mm steel ball indenter | 1 |
| Large ,small plane test table, V-shaped test table | 1 |
| Standard hardness test block HBW10/3000 (150~250) | 1 |
| Standard hardness test block HBW5/750 (150~250) | 1 |
| Fuse 2A | 2 |
| Power cable | 1 |
| Inner hexagon spanner 3mm | 1 |
| 20x reading microscope | 1 |
| Anti-dust cover | 1 |
| Brinell hardness table | 1 |
| Usage instruction manual | 1 |
