| General Information | |
| Category | Vibration Tester |

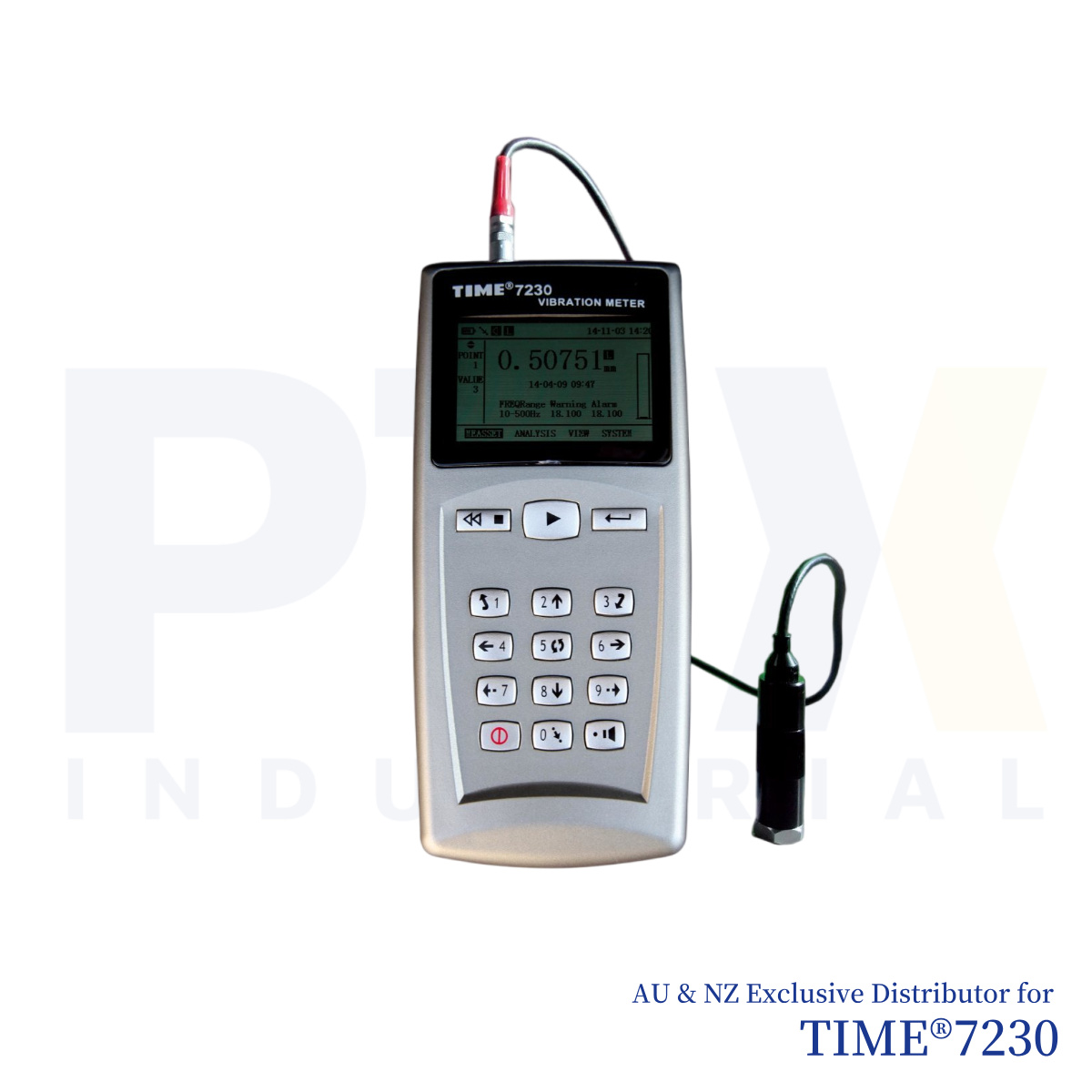

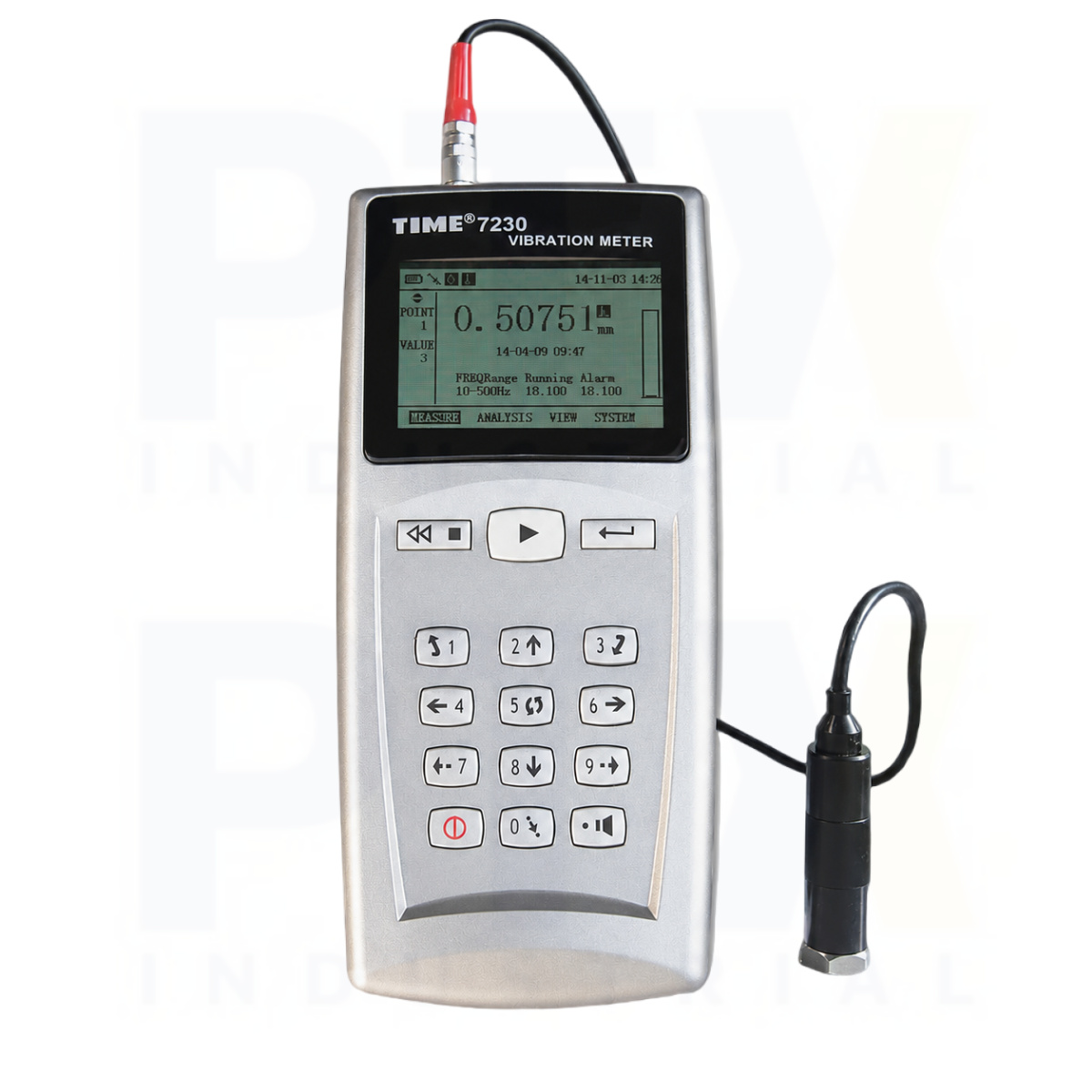

| Model | TIME®7230 |
| Manufacturer (OEM) | ▪ Two display modes: digital value mode and spectrum mode ▪ Large memory capacity: up to 100 × 100 measurement results (100 test points, each storing 100 data sets) and 100 spectrograms (one per test point) ▪ Real-time spectrogram display ▪ Histogram generation based on preset alarm thresholds ▪ Upper and lower limit settings with audible alarm; automatically switches to spectrum analysis mode when limits are exceeded ▪ PC connectivity with advanced software for detailed analysis ▪ 320 × 200 dot matrix LCD display with backlight ▪ TIME®7230: equipped with both low and high sensitivity probes ▪ Complies with ISO 2954 standard |
| Technical Specification | |
| Probe Type | Low & High Sensitivity Probes |
| Measuring Range (Low Probe) | Acceleration: 1–392 m/s² (peak); Velocity: 0.1–80 cm/s (RMS); Displacement: 0.01–18.1 mm (peak-to-peak) |
| Measuring Range (High Probe) | Acceleration: 0.1–20 m/s² (peak); Velocity: 0.01–4 cm/s (RMS); Displacement: 0.001–0.8 mm (peak-to-peak) |
| Frequency Range (Acceleration) | 10 Hz–200 Hz / 500 Hz / 1 kHz / 10 kHz |
| Frequency Range (Velocity) | 10 Hz–200 Hz / 500 Hz / 1 kHz |
| Frequency Range (Displacement) | 10 Hz–200 Hz / 500 Hz |
| Accuracy | ±5% |
| Power Supply | Li battery (approx. 20 hours without backlight) |
| Dimensions (mm) | 171 × 78.5 × 28 |
| Weight (g) | 230 |
| Standard Delivery | |
| Main Unit | 1 |
| Protection Pocket | 1 |
| Low Sensitivity Probe | 1 |
| High Sensitivity Probe | 1 |
| Power Adapter | 1 |
| Magnetic Base | 1 |
