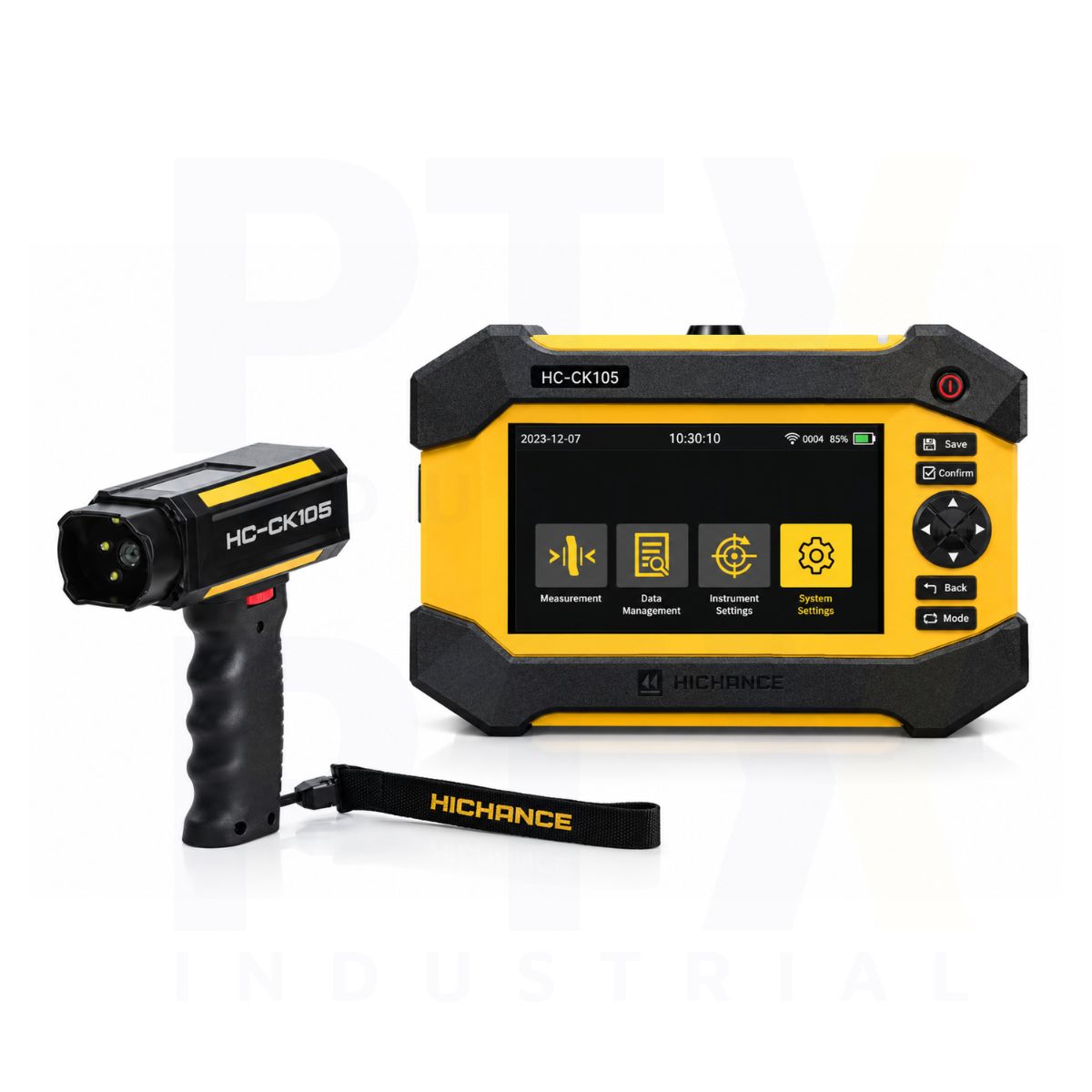

HC-CK105 Advanced Wireless Digital Crack Width Detector
The HICHANCE HC-CK105 is an advanced wireless crack width detector designed for quantitative measurement of surface cracks in concrete structures, bridges, tunnels, buildings, pavements and metal surfaces. Featuring a wireless camera microscope probe with its own display, a 5-inch touchscreen main unit and multiple measurement modes, it enables convenient crack inspection and photographic documentation without a signal cable between the probe and main unit.
Key Features
- Measurement Range: 0–10 mm crack width measurement.
- Measurement Precision: 0.01 mm as specified by the manufacturer.
- Wireless Camera Probe: Handheld microscope probe with a quick-shot button for convenient image capture.
- Dual Displays: 5-inch main touchscreen (1280 × 720) and 0.96-inch probe display (160 × 80).
- Multiple Reading Methods: Horizontal, oblique and manual crack width measurement.
- High-Resolution Imaging: Captures crack images at 1280 × 720 pixels.
- Large Image Storage: Stores over 20,000 inspection images.
- Extended Battery Life: Up to 8 hours for the main unit and 16 hours for the wireless probe.
- Data Export & Reporting: Supports USB data transfer to a PC for analysis and report preparation.
Wireless Crack Width Measurement
The HC-CK105 uses a wireless camera microscope probe to measure surface cracks without a physical signal cable connecting the probe to the main unit. The probe features a quick-shot button and integrated display, allowing operators to position the camera, capture images and conduct inspections more conveniently.
Dual Displays & Multiple Reading Modes
The 5-inch high-resolution touchscreen provides clear viewing of crack images and measurement results, while the 0.96-inch display on the wireless probe synchronises measurement information. Horizontal, oblique and manual reading methods support different crack orientations and inspection conditions.
Image Storage & Inspection Documentation
The HC-CK105 stores over 20,000 images in a universal image format for convenient viewing and archiving. Inspection data can be exported to a PC via USB for further analysis, documentation and report generation.
Typical Applications
- Concrete crack width measurement and documentation
- Structural condition assessment of buildings and bridges
- Tunnel, pavement and civil infrastructure inspections
- Concrete defect investigations and maintenance inspections
- Surface crack measurement on metal structures
- Crack monitoring and inspection record keeping
