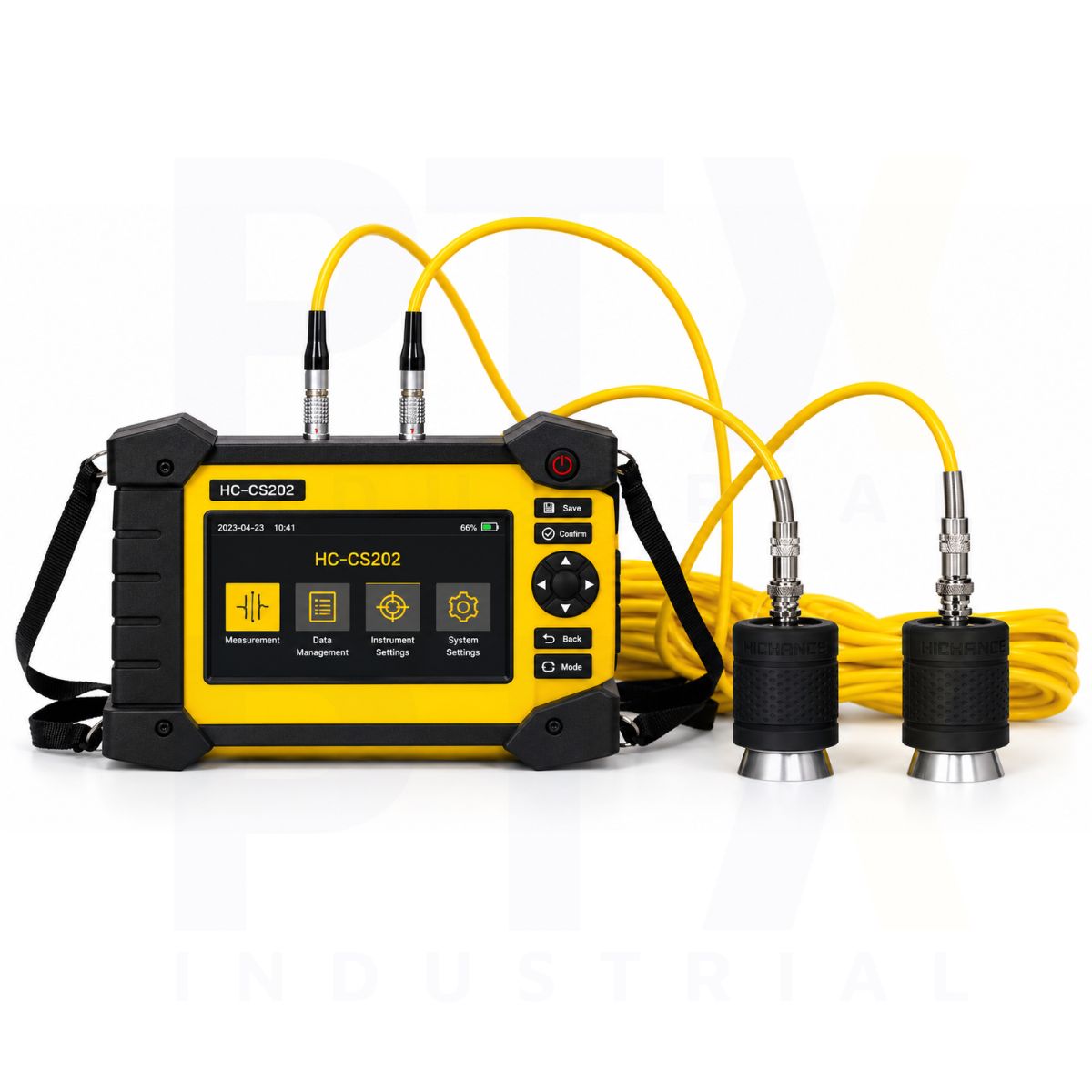

HC-CS202 Ultrasonic Concrete Crack Depth Tester
The HICHANCE HC-CS202 is a portable ultrasonic crack depth tester designed for non-destructive measurement of crack depth in concrete and other non-metallic materials. Featuring dual-channel ultrasonic technology, automatic first-wave detection and a 5-inch colour touchscreen, it supports crack depth assessment, structural inspections and concrete condition investigations.
Key Features
- Crack Depth Measurement: 5–500 mm measurement range.
- Dual-Channel Ultrasonic System: Supports ultrasonic signal acquisition and analysis.
- Automatic Wave Detection: Automatically identifies first-wave arrival time and amplitude, with direct display of crack depth results.
- 5-inch Colour Touchscreen: High-definition 1280 × 720 LCD for clear measurement display and operation.
- Adjustable Ultrasonic Settings: Multiple sampling intervals, sampling lengths and transmitter voltage settings.
- Time-of-Flight Correction: Manual adjustment of the time-of-flight line for measurement data correction.
- Waveform Editing: Supports overwriting and deleting stored measurement points during testing.
- Data Storage & Connectivity: Built-in 16 GB storage with USB drive and Wi-Fi data transfer.
- Extended Battery Life: More than 8 hours of continuous operation.
- PC Analysis Software: Supports data processing, analysis and inspection report generation.
Ultrasonic Crack Depth Measurement
The HC-CS202 uses ultrasonic measurement technology to determine the depth of cracks in concrete and non-metallic materials. Its 5–500 mm measurement range supports crack investigations and structural condition assessments where surface crack width measurements alone cannot provide sufficient information.
Automatic Signal Detection & Measurement Control
The dual-channel ultrasonic system automatically identifies first-wave arrival time and amplitude, reducing the need for manual waveform interpretation. Adjustable sampling parameters, transmitter voltage settings and time-of-flight correction provide flexibility for different inspection conditions.
Touchscreen Operation & Data Management
The 5-inch colour touchscreen provides convenient access to measurement functions and ultrasonic data. Built-in 16 GB storage, USB and Wi-Fi connectivity, and compatible PC analysis software support inspection record management, data analysis and report preparation.
Typical Applications
- Ultrasonic crack depth measurement in concrete structures
- Structural condition assessment of buildings and bridges
- Tunnel and civil infrastructure inspections
- Concrete defect investigations and maintenance assessments
- Reinforced concrete inspection and quality control
- Crack depth evaluation before structural repairs
