| General Information | |
| Category | Surface Waviness Tester |
| Model | TIME®3234 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |

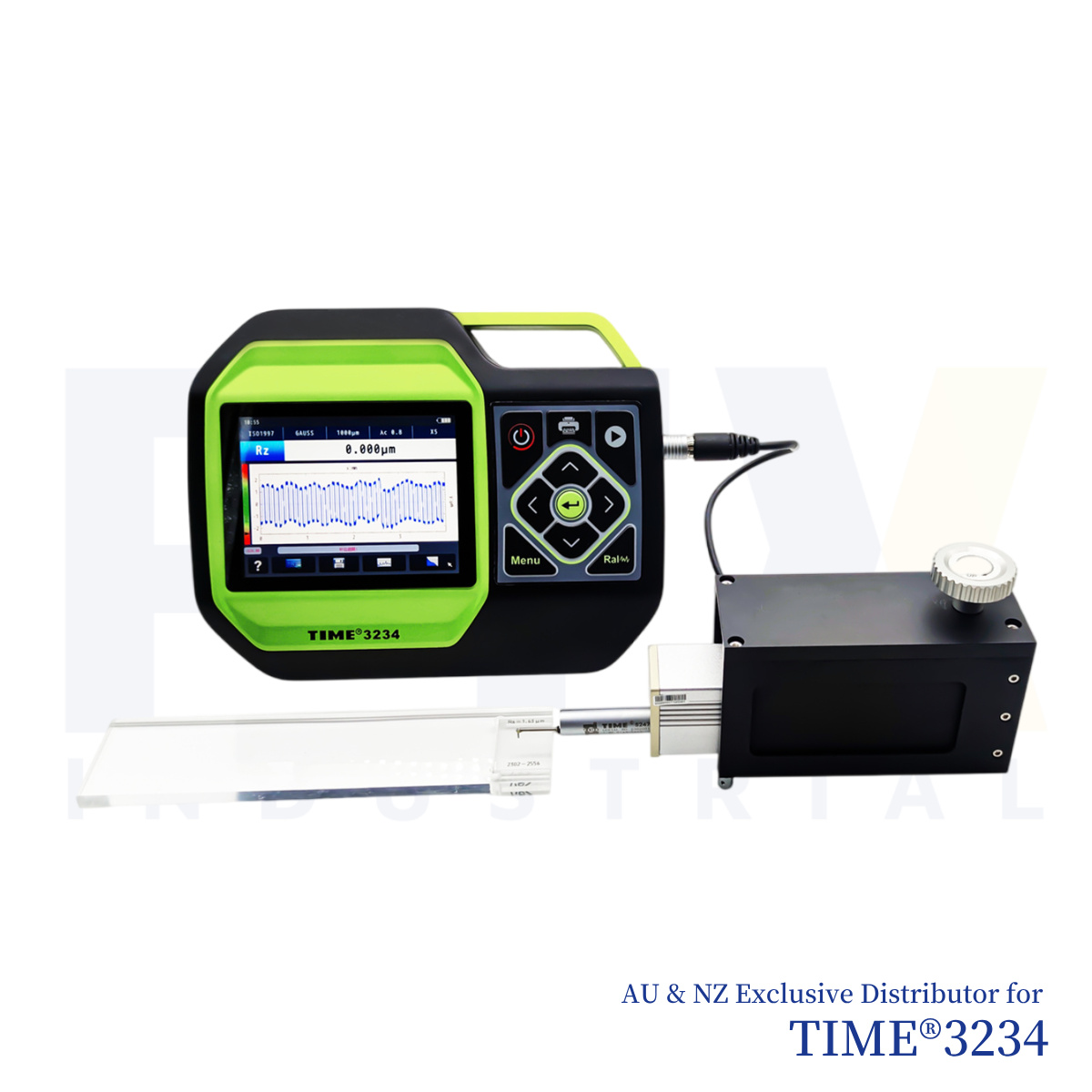

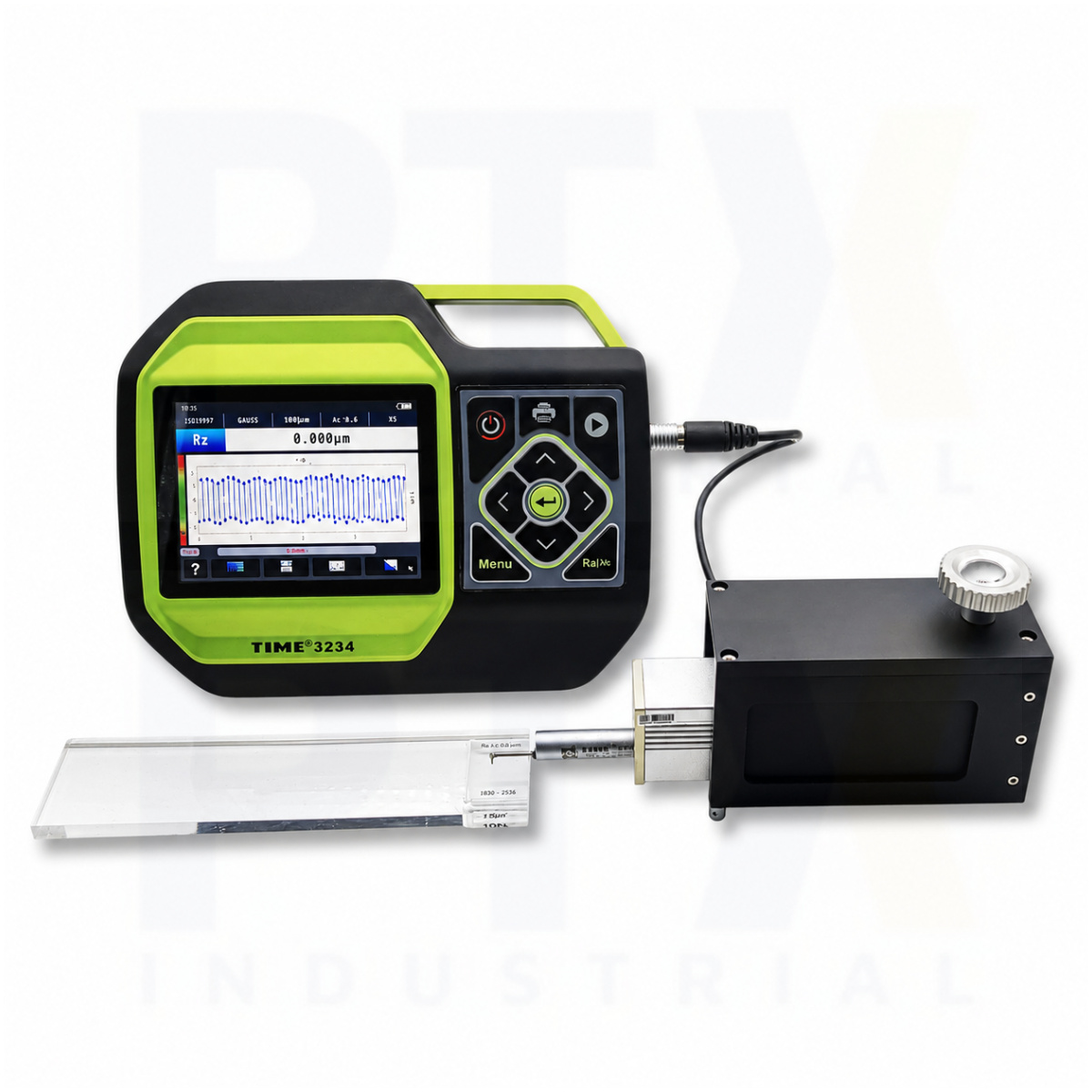

| Features | ▪ Linux operating system with high calculation accuracy, fast data processing, and user-friendly interface ▪ Separated design for easy operation ▪ Measures surface roughness, waviness, and primary profile; portable and easy to carry ▪ Wide measuring range up to 1000 µm with maximum tracing length up to 50 mm ▪ 5.7-inch TFT LCD display for clear visualization of evaluation curves ▪ Supports mouse operation ▪ Stores up to 10,000 groups of measurement conditions and data ▪ Measurement data can be stored on USB drive ▪ Supports measurement with or without skid ▪ Capable of printing measurement parameters and profile curves ▪ Optional advanced analysis software available ▪ Interfaces: RS232, USB ▪ Power supply: built-in rechargeable Li battery or external power adapter ▪ Operating temperature: 0–40 °C ▪ Dimensions (mm): main unit 260 × 210 × 68; driver 195.5 × 60 × 122 ▪ Weight (kg): main unit 1.5; driver 1.58 ▪ Power adapter: input 100–240 V AC, 50/60 Hz; output 9 V, 3 A |
| Technical Specification | |
| Profile Types | R, W, P, R-Motif, W-Motif |
| Filter | Gauss, 2RC |
| Cut-off Length (mm) | 0.08 / 0.25 / 0.8 / 2.5 / 5 / 8 / 10 |
| Evaluation Length | 1–5 L (selectable) |
| Measuring Range | 1000 µm (±500 µm) |
| Max. Resolution | 0.0003 µm |
| Tracing Length | 50 mm |
| Tolerance | ±5% (with skid); ±10% (without skid) |
| Repeatability | 1.5% (with skid); 3% (without skid) |
| Standard | Profile | Parameters |
| ISO 1997 | R | Ra, Rq, Rz, Rp, Rv, Rsk, Rku, Rc, RPc*, RSm, R△q, Rmr*, Rmr(c)*, Rδc*, Rt, Rz1max, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, Vo |
| ISO 1997 | P | Pa, Pq, Pz, Pp, Pv, Psk, Pku, Pc, PPc*, PSm, P△q, Pmr*, Pmr(c)*, Pδc*, Pt, Pz1max |
| ISO 1997 | W | Wa, Wq, Wz, Wp, Wv, Wsk, Wku, Wc, WPc1, WSm, W△q, Wmr*, Wmr(c)*, Wδc*, Wt, Wz1max |
| JIS 2001 | R | Ra, Rq, Rz, Rp, Rv, Rsk, Rku, Rc, RSm, RzJIS, R△q, Rmr*, Rmr(c)*, Rδc*, Rt |
| JIS 2001 | P | Pa, Pq, Pz, Pp, Pv, Psk, Pku, Pc, PSm, PzJIS, P△q, Pmr*, Pmr(c)*, Pδc*, Pt |
| JIS 2001 | W | Wa, Wq, Wz, Wp, Wv, Wsk, Wku, Wc, WSm, WzJIS, W△q, Wmr*, Wmr(c)*, Wδc*, Wt |
| ANSI | R | Ra, Rq, Rz, Rp, Rv, Rsk, Rku, RPc*, RSm, R△a, R△q, Htp*, tp*, Rt, Rmax, Rpm |
| ANSI | W | Wa, Wq, Wz, Wp, Wv, Wsk, Wku, WPc*, WSm, W△a, W△q, Htp*, tp*, Wt, Wmax, Wpm |
| Standard Delivery | |
| Main Unit | 1 |
| Driver | 1 |
| Standard Pickup (TIMES244) | 1 |
| Portable Stand | 1 |
| Mini USB Cable | 1 |
| Roughness Specimen (Ra) | 1 |
| Power Adapter | 1 |
| User Manual | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
