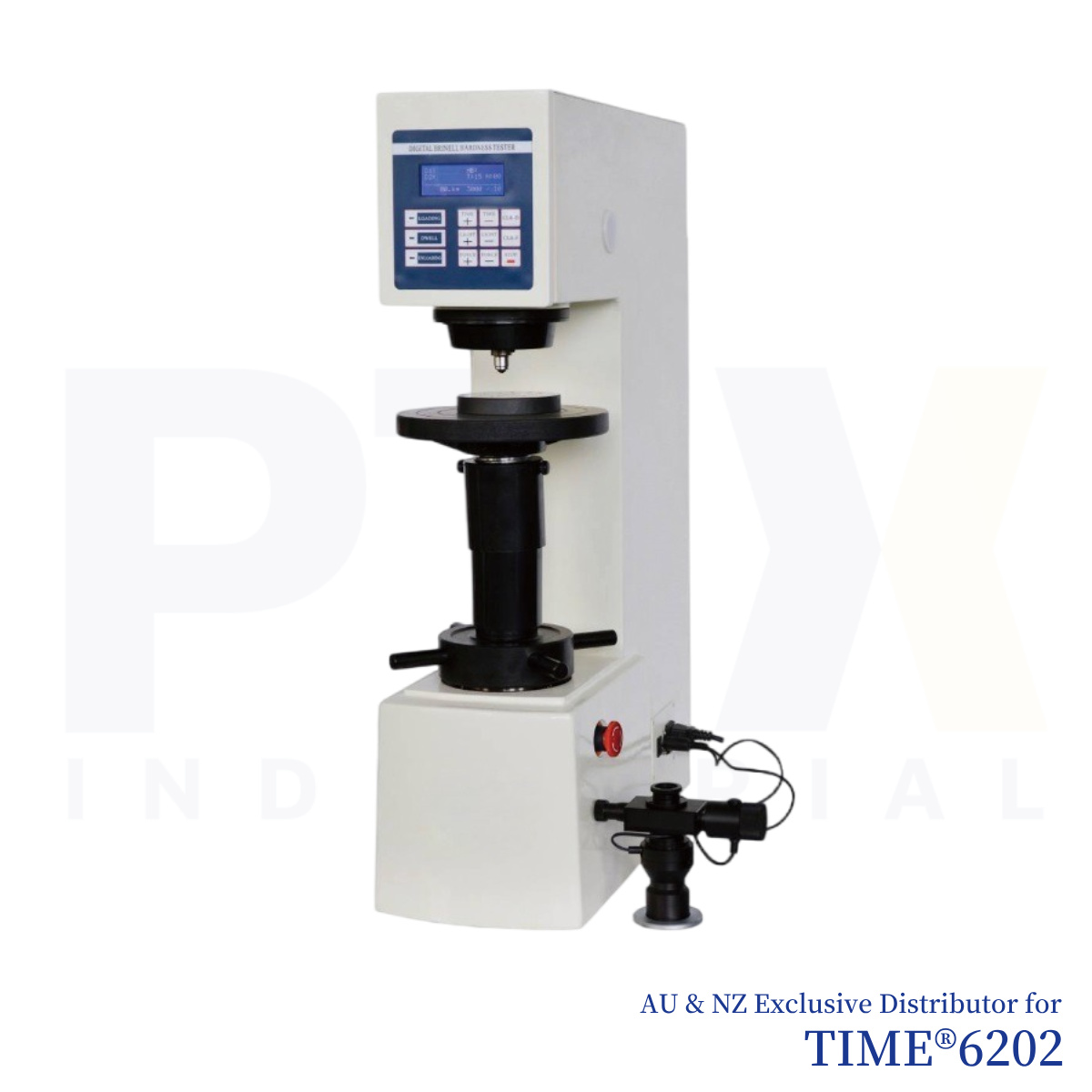

Professional Digital Brinell Hardness Tester
The TIME6202 Digital Brinell Hardness Tester is a professional digital Brinell hardness tester designed for fast, accurate, and efficient hardness testing of cast iron, steel, non-ferrous metals, soft alloys, and selected non-metallic materials. Combining a precision mechanical structure with a closed-loop load cell control system and an integrated digital measuring microscope, the TIME6202 delivers highly accurate, repeatable, and user-friendly Brinell hardness testing for manufacturing, quality control, laboratories, and research facilities.
The TIME6202 Digital Brinell Hardness Tester features automatic motorised test force application without traditional weights. A high-precision 0.5‰ compression load cell continuously monitors the applied force while the CPU automatically compensates for any force loss during testing, ensuring outstanding measurement accuracy and repeatability. Unlike conventional Brinell hardness testers, the integrated digital measuring microscope automatically calculates and displays the hardness value after the indentation is measured, eliminating manual calculations and hardness conversion tables.
Designed for Fast Digital Brinell Hardness Testing
The supplied 20× digital measuring microscope provides direct measurement of the indentation diameter with a resolution of 0.001 mm. After measuring the indentation, operators simply press the eyepiece button to automatically display the Brinell hardness value, significantly improving testing efficiency while reducing operator error. The LCD display simultaneously shows hardness value, test force, dwell time, and indentation size for fast and reliable inspection.
The TIME6202 Digital Brinell Hardness Tester supports Brinell test forces from 62.5 kgf to 250 kgf and measures hardness values from 3.18 to 653 HBW. Designed for industrial and laboratory environments, it is suitable for testing cast iron, carbon steel, alloy steel, aluminium alloys, copper alloys, rigid plastics, bakelite, and other engineering materials. Complying with ISO 6506, ASTM E10, and JIS Z2243 standards, the TIME6202 provides dependable digital Brinell hardness testing for quality assurance and material evaluation.
Key Features
- Professional digital Brinell hardness tester
- Closed-loop electronic load cell control system
- Automatic motorised test force application without weights
- High-precision 0.5‰ load cell with automatic force compensation
- Integrated 20× digital measuring microscope
- Automatic hardness calculation without manual conversion tables
- LCD display showing hardness value, indentation size, test force, and dwell time
- Test forces from 62.5 kgf to 250 kgf
- Brinell hardness range from 3.18 to 653 HBW
- Indentation measurement resolution of 0.001 mm
- Suitable for metals, soft alloys, rigid plastics, and bakelite
- Complies with ISO 6506, ASTM E10, and JIS Z2243
| Technical Specification | |
| Test Force | 612.9N(62.5kgf) 980.7N(100kgf) 1226N(125kgf) 1839N(187.5kgf) 2452N(250kgf) |
| Test Range | 3.18~653HBW |
| Hardness Reading | LCD Display |
| Microscope | 20× Digital Measuring Microscope |
| Minimum Division Value of Drum Wheel | 0.001mm |
| Dwell Time | 0~60s |
| Max. Height of Specimen | 205mm |
| Throat | 135mm |
| Power Supply | 220-240V~, 50Hz |
| Execute Standard | ISO 6506, ASTM E10-12, JIS Z2243 |
| Dimension | 545×235×755mm Packing Dimension: 650×435×1020mm |
| Weight | Net Weight: 130kg Gross Weight: 160kg |
| Standard Delivery | |
| Main unit | 1 |
| φ2.5,φ5,φ10mm ball indenter | 1 |
| Large, small and V-shaped test table | 1 |
| Standard hardness test block HBW10/3000 (150~250) | 1 |
| Standard hardness test block HBW5/750 (150~250) | 1 |
| Fuse 2A | 2 |
| Power cable | 1 |
| Inner hexagon spanner 3mm | 1 |
| 20x digital measuring microscope | 1 |
| Anti-dust cover | 1 |
| Instruction manual | 1 |
