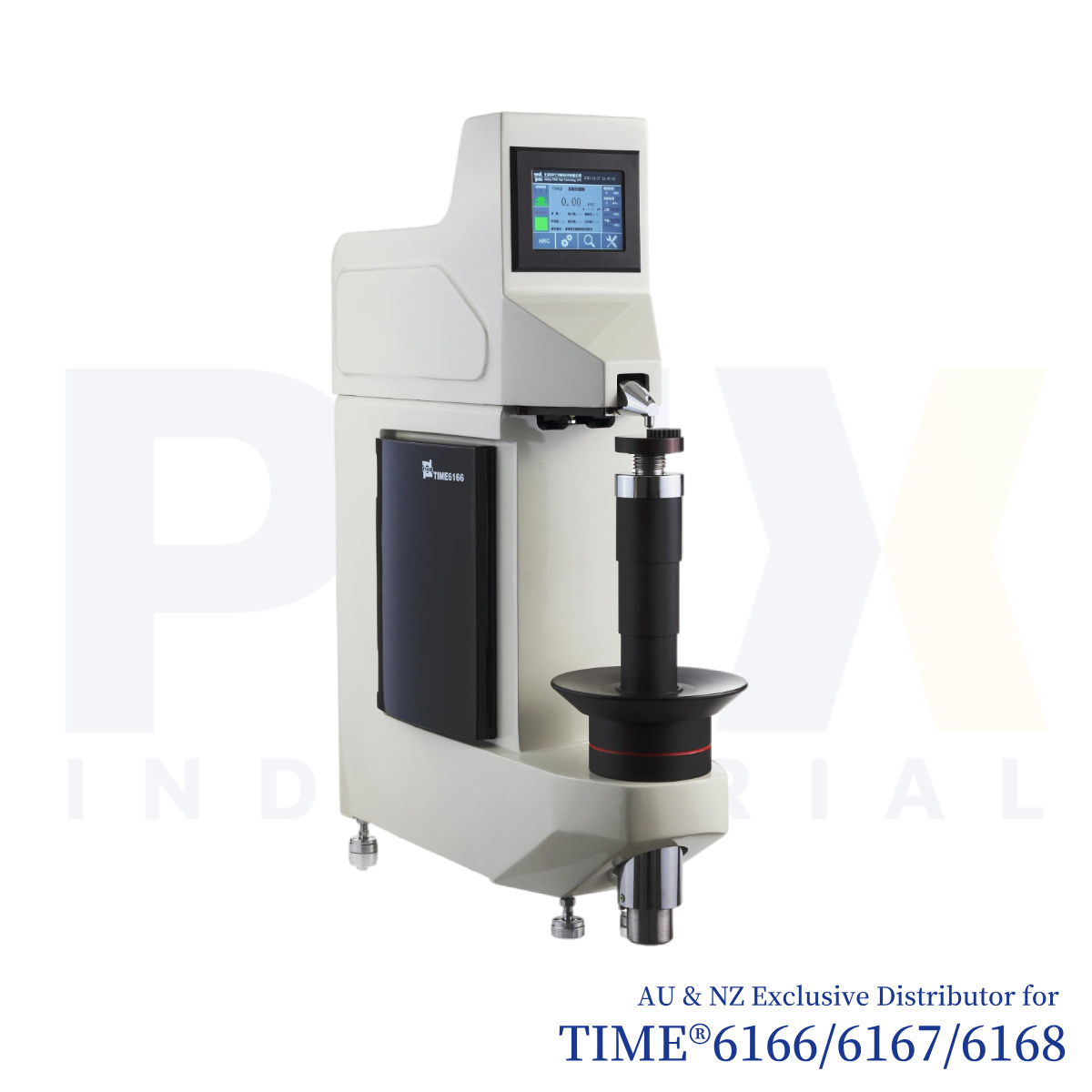

Professional Automatic Rockwell Hardness Tester
The TIME6166 Automatic Rockwell Hardness Tester is a premium automatic Rockwell hardness tester designed for high-precision hardness testing in manufacturing, quality control, research laboratories, and industrial inspection. Combining advanced digital technology, automatic test force switching, a high-resolution touchscreen, and intelligent data management, the TIME6166 delivers fast, repeatable, and highly accurate Rockwell hardness measurements for a wide range of metallic materials. Its large testing capacity, innovative dolphin nose indenter, and high-resolution LVDT measurement system make it an ideal solution for demanding production and laboratory environments.
The TIME6166 Automatic Rockwell Hardness Tester supports automatic Rockwell hardness testing using standard test forces of 60 kgf, 100 kgf, and 150 kgf, with automatic loading, dwell, unloading, and automatic force selection. Furthermore, the instrument features a high-precision LVDT sensor with an industry-leading resolution of 0.01 HR and real-time residual depth measurement from 10 to 700 μm, delivering outstanding measurement repeatability and reliability. Adjustable preload, major load, and dwell time comply with the latest GB/T 230-2018, ISO 6508, and ASTM E18 standards for professional hardness testing.
Designed for Advanced Rockwell Hardness Testing
The intuitive 5.7-inch TFT touchscreen provides a modern user interface that clearly displays hardness scale, test force, dwell time, residual depth, maximum, minimum, average, repeatability, hardness conversion, tensile strength conversion, and operator guidance in real time. In addition, the innovative dolphin nose indenter allows accurate hardness testing of curved, tubular, stepped, and irregular workpieces that are difficult to inspect using conventional Rockwell hardness testers.
The TIME6166 Automatic Rockwell Hardness Tester offers an exceptionally large testing space with 260 mm vertical capacity and 150 mm throat depth, accommodating larger components while supporting cylindrical workpieces with outside diameters as small as 3 mm. Moreover, the instrument stores more than 1,500 test results and supports data export via USB, micro printer, or computer for efficient inspection reporting and quality management. Manufactured with a high-strength cast aluminium frame and precision lead screw system, the TIME6166 provides outstanding long-term stability for industrial Rockwell hardness testing.
Key Features
- Premium automatic Rockwell hardness tester
- Automatic loading, dwell, unloading, and test force selection
- High-resolution 5.7-inch TFT colour touchscreen
- Ultra-high resolution of 0.01 HR using LVDT sensor technology
- Real-time residual depth measurement (10–700 μm)
- Innovative dolphin nose indenter for curved and stepped workpieces
- Automatic hardness scale switching and hardness conversion
- Tensile strength conversion function
- Large testing capacity: 260 mm vertical clearance and 150 mm throat depth
- Stores more than 1,500 measurement results
- USB, micro printer, and computer data output
- Complies with ISO 6508, ASTM E18, ASTM E140, ASTM A370, and BS EN 10109
| General Information | |
| Category | Automatic Rockwell Hardness Tester |
| Model | TIME6166 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | • Conversion of common hardness scales (HLD, HV, HB) & Conversion of Tensile Strength, up to 15/30 kinds of Rockwell hardness scales. • Automatic test process. • Dolphin nose indenter can measure workpieces that cannot be measured by conventional models such as circular, tubular, and stepped samples. • The high-strength cast aluminum alloy body ensures the accuracy of the equipment and is durable. • The lead screw adopts special material modulation processing, and the lifting is stable and reliable. • The large disc handle is ergonomically designed and can clamp the specimen more conveniently, quickly and stably. • Large test space: 260mm in the vertical direction and 150mm in the horizontal direction. Intuitive UI and interactive design are adopted, which perfectly fits human intuitional thinking and avoid the trouble of reading manuals. • The 5.7-inch TFT touch screen clearly displays the test results including the current scale, test force, pressure, maximum value, minimum value, average value, repeatability, strength conversion, hardness conversion, current operation prompts and upper and lower limits • The initial test force, total test force, and elastic recovery retention time can be set, which are in line with the latest standards of GB/T230-2018, ISO6508, ASTM E18. • The test force and the scale are automatically switched, and automatic reset after power failure. • With the LVDT sensor, the resolution is increased to 0.01HR, and the residual depth value is innovatively added (range: 10~700μm) • Data output to U disk, micro printer, or computer for data processing and printing. |
| Technical Specification | |
| Hardness scales | HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRHW, HRKW, HRLW, HRMW, HRPW, HRRW, HRSW, HRVW |
| Resolution | 0.1/0.01 Rockwell unit |
| Pre-load | 98.07N/10kgf |
| Total load | 588.4N/60kgf, 980.7N/100kgf, 1471N/150kgf |
| Test load type | weights, automatically switch, automatically reset after power failure |
| Display | 5.7-inch TFT touch screen; intuitive UI and interactive design |
| Residual depth range (h) | 10~700μm, real-time display |
| Language | English |
| Dwell time | 1-99 seconds |
| Standards | ISO 6508, ASTM E18, BS EN 10109, ASTM E140, ASTM A370 |
| Testing space | Vertical: 260mm, horizontal:150mm |
| Work piece types | flat surface; cylindrical surface, minimum outer diameter 3mm; inner ring surface, minimum inner diameter 23mm. |
| Storage | ≥1500 groups |
| Power supply | 220-240 V~, 50Hz, 4A |
| Dimensions (mm) | 715×230×870 |
| Weight (kg) | 100 kg |
| Standard Delivery | |
| Main unit | 1 |
| Diamond Rockwell indenter | 1 |
| Ø1.588mm ball indenter | 1 |
| Round anvil, V shape anvil | 1 |
| Test block HRA, HRBW | 1 |
| Test block HRC | 3 |
| Screw for indenter | 2 |
| Power supply cable | 1 |
| Level adjustment screw | 4 |
| Anti-dust cover | 1 |
| Warranty card | 1 |
| Instruction manual | 1 |
