▸Description

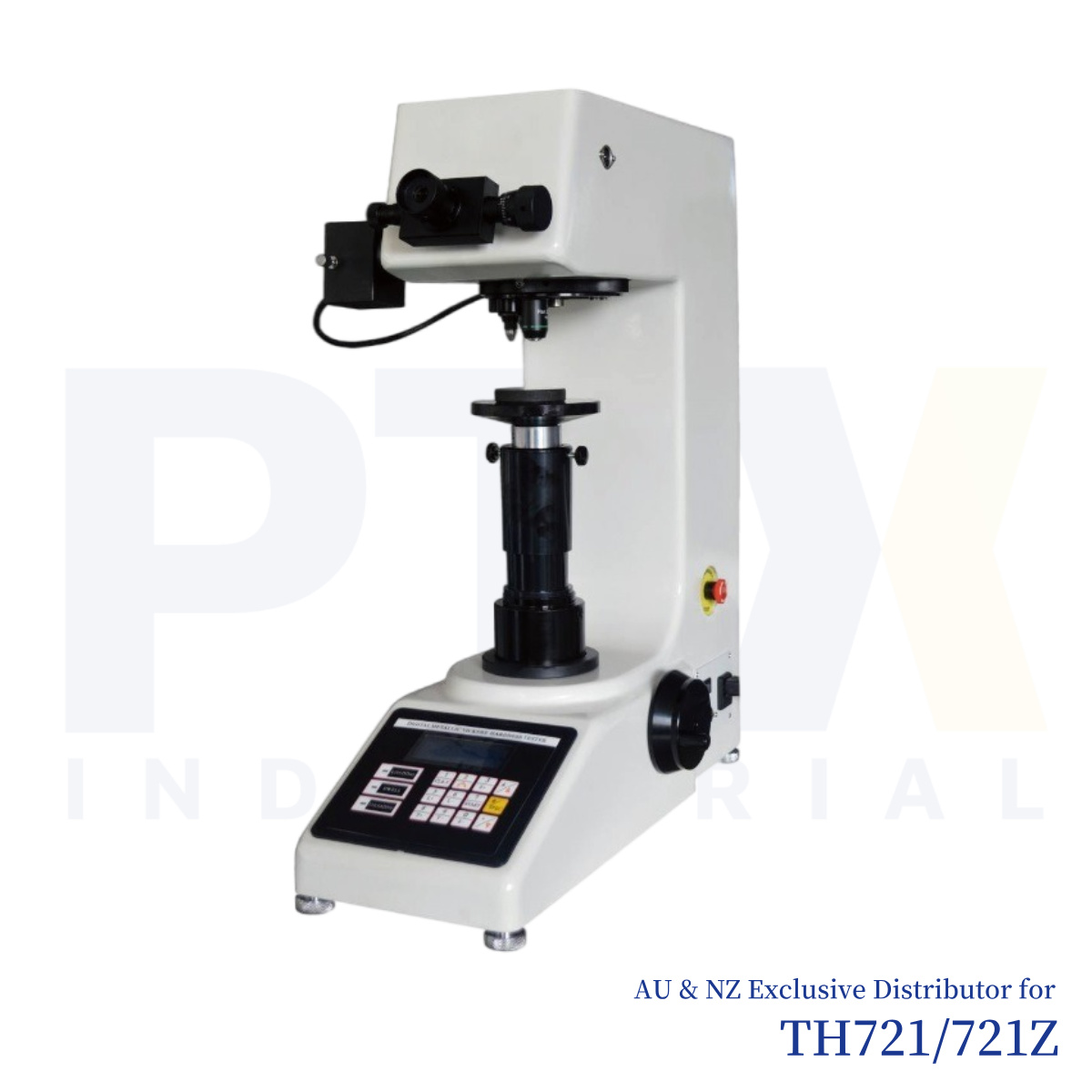

Professional Digital Vickers Hardness Tester
The TH721 Digital Vickers Hardness Tester is a professional digital Vickers hardness tester designed for precise hardness testing of metals, coatings, thin sections, ceramics, glass, electronic components, and heat-treated materials. Combining advanced optical, mechanical, and electronic technologies with a high-precision load cell control system and digital measuring eyepiece, the TH721 delivers highly accurate, repeatable, and efficient Vickers hardness testing for laboratories, research institutes, universities, and industrial quality control.
The TH721 Digital Vickers Hardness Tester utilises a closed-loop load cell control system that significantly improves test force accuracy, repeatability, and long-term stability compared with conventional weight-loaded systems. Automatic loading, dwell, and unloading ensure consistent testing conditions, while the digital measuring eyepiece automatically calculates and displays the hardness value after indentation measurement. Operators no longer need to consult hardness tables or manually enter indentation dimensions, greatly improving testing efficiency and reducing operator error.
Designed for Precision Vickers Hardness Testing
The integrated digital measuring eyepiece displays indentation length, test force, dwell time, hardness value, conversion scale, test number, date, and time directly on the screen for convenient operation. The high-quality optical system provides 100× and 200× total magnification with measurement resolutions down to 0.13 μm, enabling highly accurate indentation measurement across a wide range of engineering materials.
The TH721 supports Vickers test forces from 0.5 kgf to 50 kgf, making it suitable for testing ferrous metals, non-ferrous metals, thin coatings, plated materials, ceramics, glass, gemstones, plastics, integrated circuit cross-sections, carburised layers, and hardened surfaces. Optional LCD video measuring equipment and a CCD automatic image measuring system are available for laboratories requiring higher testing efficiency and automated indentation analysis. Complying with ISO 6507, ASTM E384, and JIS Z2244 standards, the TH721 delivers dependable Vickers hardness testing for production, laboratories, and quality assurance.
Key Features
- Professional digital Vickers hardness tester
- High-precision closed-loop load cell control system
- Automatic loading, dwell, and unloading
- Digital measuring eyepiece with automatic hardness calculation
- Manual switching between objective lens and indenter
- Test forces from 0.5 kgf to 50 kgf
- High-resolution optical system with 100× and 200× magnification
- Measurement resolution down to 0.13 μm
- Optional LCD video measuring device and CCD automatic image measuring system
- Suitable for metals, coatings, ceramics, glass, thin sections, and heat-treated materials
- Excellent force accuracy, repeatability, and measurement stability
- Complies with ISO 6507, ASTM E384, and JIS Z2244
| Technical Specification | |
| Test Force | 4.90N(0.5kgf), 9.80N(1kgf), 19.6N(2kgf), 24.5N(2.5kgf), 29.4N(3kgf), 49N(5kgf), 98N(10kgf), 196N(20kgf), 294N(30kgf), 490N(50kgf) |
| Test Range | 1HV~2967HV |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Shifting between Objective and Indenter | Manual |
| Total Magnification | 100×, 200× |
| Effective Field of View | 10×:800μm, 20×:400μm |
| Min. Measuring Unit | 10×:0.25μm, 20×:0.13μm |
| Dwell Time | 0~60s |
| Data output | – |
| Max. Height of Specimen | 185mm |
| Throat | 130mm |
| Dimension | 530×280×630mm Packing Dimension: 620×450×740mm |
| Weight (kg) | Net Weight: 35 Gross Weight: 47 |
| Standard Delivery | |
| Main unit | 1 |
| Diamond Vickers Indenter | 1 |
| 10× Digital Measuring Eyepiece | 1 |
| Hardness Block 400~500 HV5, 700~800 HV30 for TH721 | 1 |
| Block 700-800 HV1, block HV10 for TH724 | 1 |
| Horizontal Regulating Screw | 4 |
| Big Plane Test Table | 1 |
| Inner Hexagon Spanner 2.5mm | 1 |
| Usage Instruction Manual | 1 |
| Level | 1 |
| 10×, 40× Objective | 1 |
| Fuse 1A | 2 |
| Power Cable | 1 |
| Screw Driver | 1 |
| TH721:10×,20× Objective | 1 |
| TH724:10×,40× Objective | 1 |
| Anti-dust Cover | 1 |
| V-shaped Test Table | 1 |
| Halogen Lamp 12V,15-20W | 1 |
