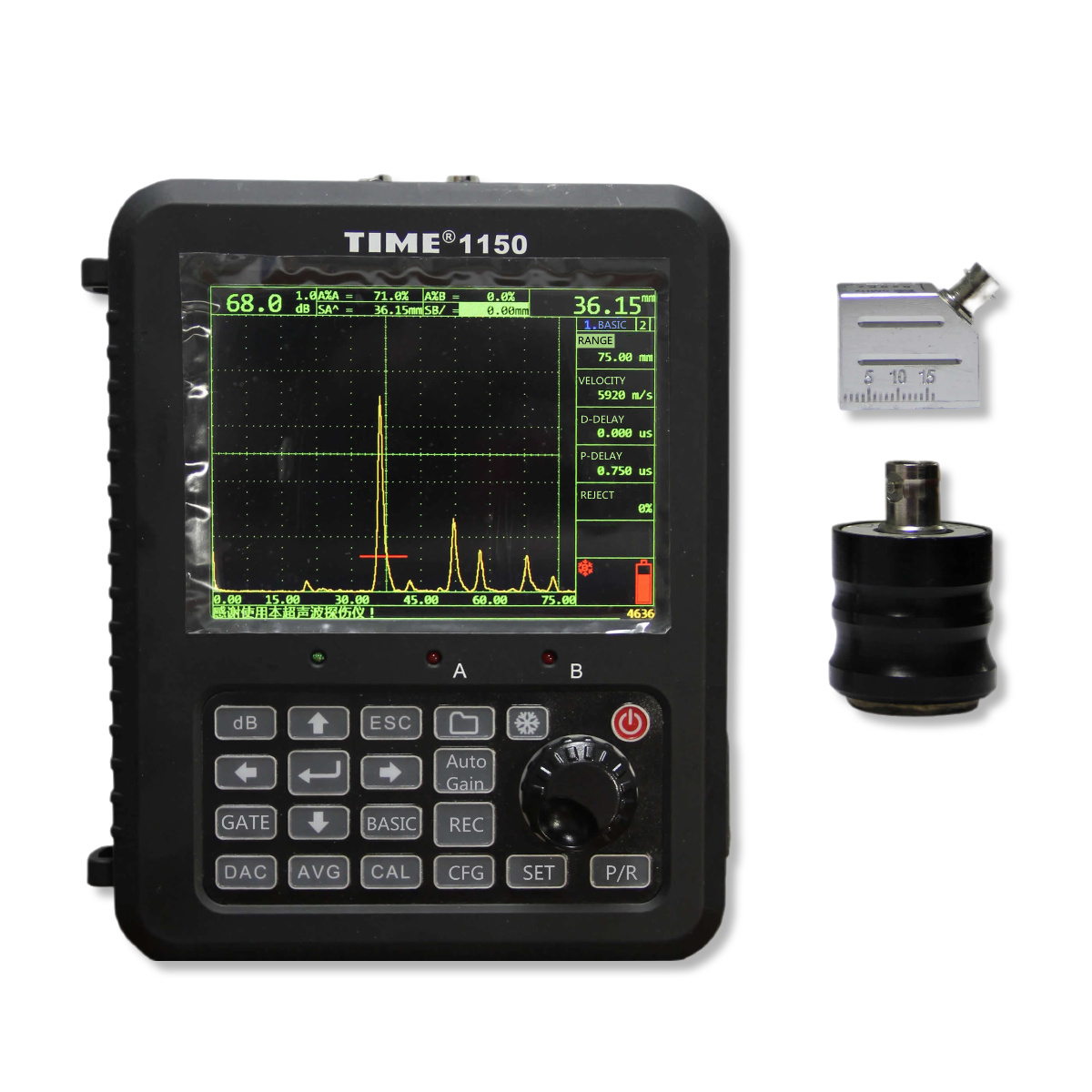

TIME 1150 Digital Ultrasonic Flaw Detector
The TIME 1150 Digital Ultrasonic Flaw Detector is a high-performance portable NDT instrument designed for detecting internal defects, cracks, inclusions, porosity, and discontinuities in metallic and composite materials. Suitable for manufacturing, fabrication, maintenance, and quality assurance applications, it delivers accurate ultrasonic inspection in both field and laboratory environments.
Equipped with a 5.7-inch VGA colour TFT display and advanced square-wave pulser technology, the TIME 1150 provides excellent signal resolution and defect characterisation. Simultaneous A-scan and B-scan display modes improve inspection efficiency, while integrated DAC, AVG, and DGS curves simplify flaw evaluation and acceptance decisions.
The instrument offers a wide scanning range up to 10,000 mm, gain adjustment up to 110 dB, multiple rectification modes, and flexible pulser settings to accommodate a broad range of materials and inspection requirements. USB and RS232 communication interfaces support data transfer, reporting, and inspection documentation.
Designed for professional Non-Destructive Testing (NDT), the TIME 1150 is widely used for weld inspection, casting evaluation, forging inspection, pressure vessel testing, structural assessment, and industrial quality control.
Key Features
- Portable digital ultrasonic flaw detector for professional NDT applications
- Simultaneous A-scan and B-scan display modes
- Integrated DAC, AVG and DGS evaluation curves
- Adjustable square-wave pulser up to 400 V
- Wide gain range up to 110 dB
- Pulse-echo, dual and through-transmission inspection modes
- High-resolution 5.7-inch VGA colour TFT display
- USB 2.0 and RS232 communication interfaces
- Long battery life exceeding 8 hours
- Suitable for weld inspection, defect detection and quality control
