| General Information | |
| Category | Ultrasonic Thickness Gauge |

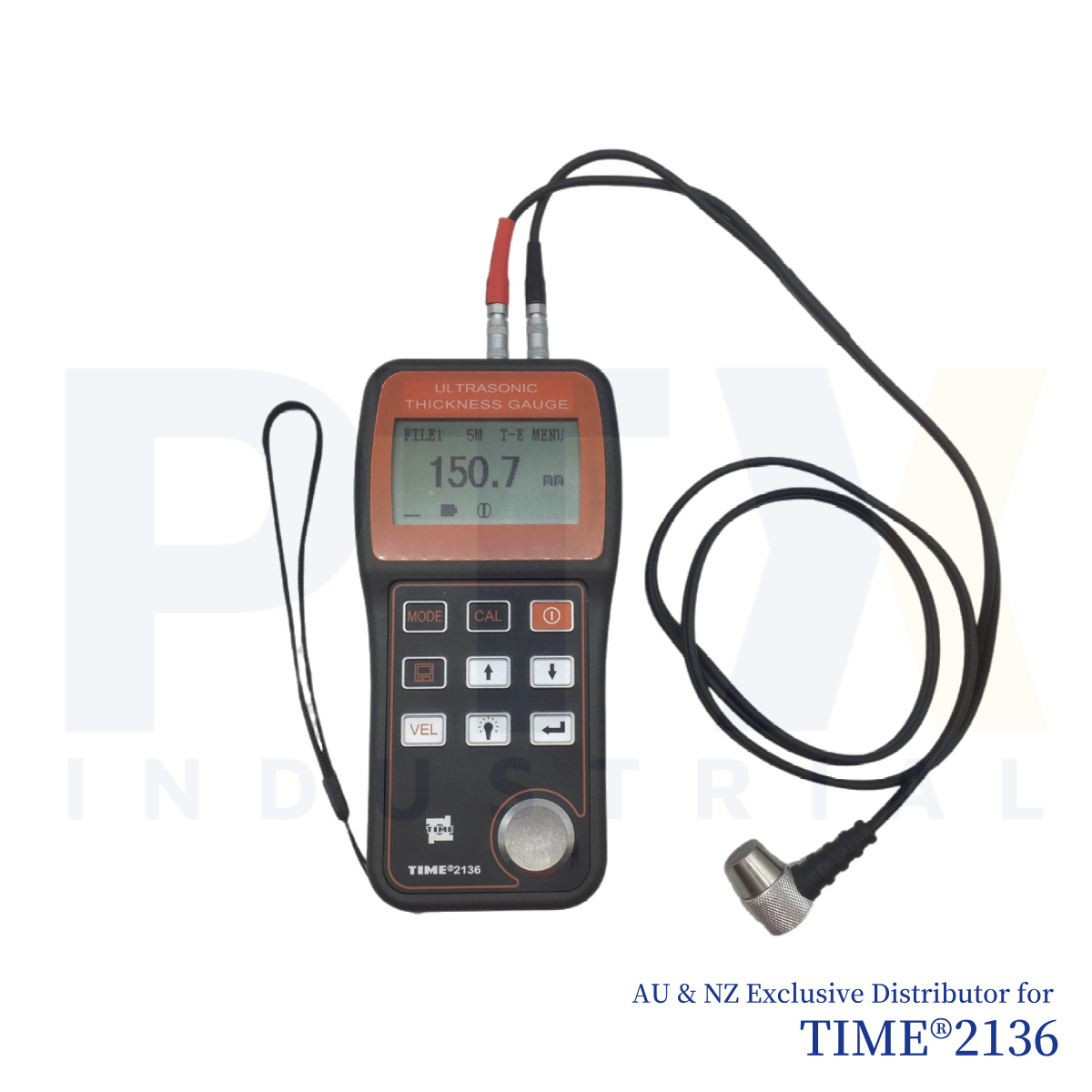

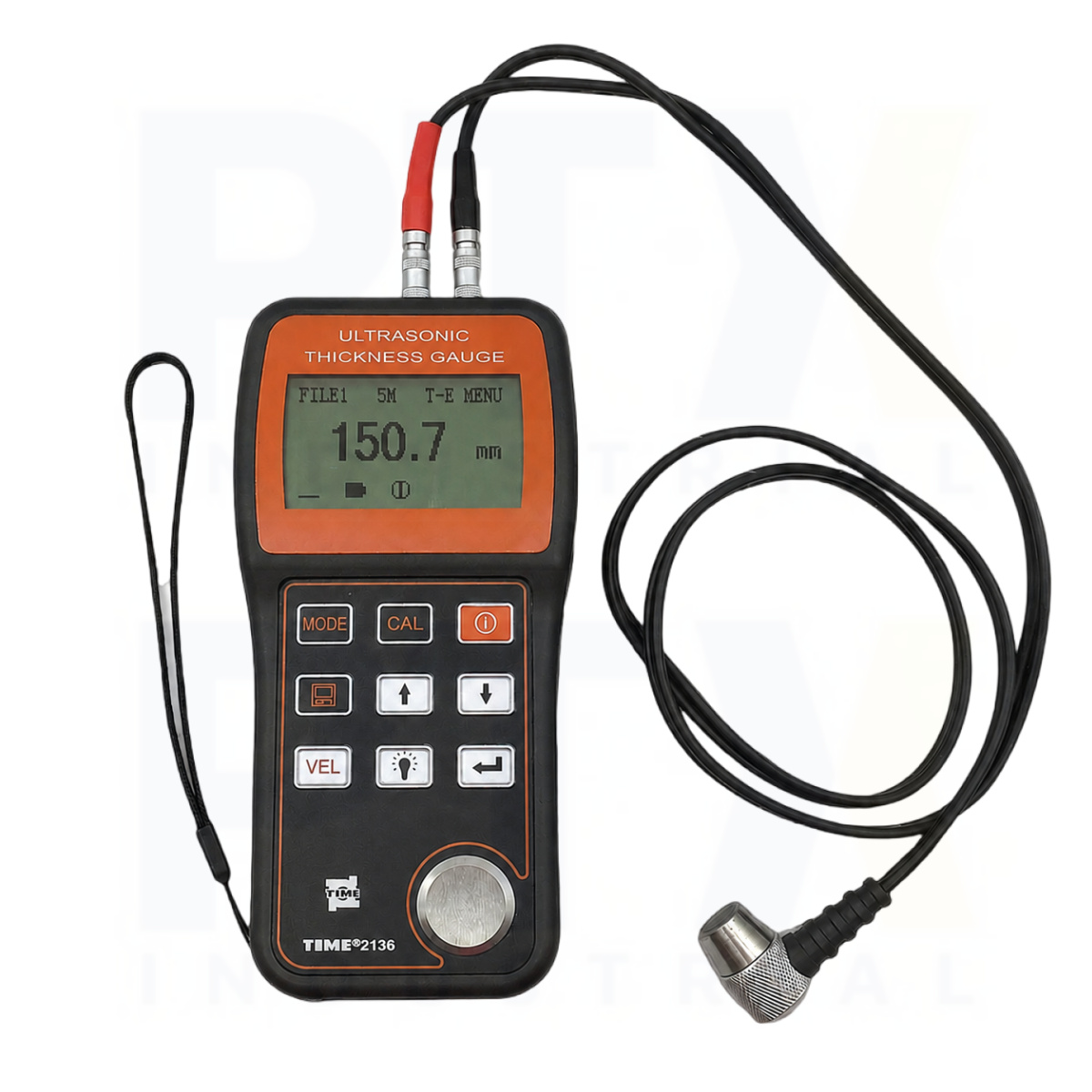

| Model | TIME®2136 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ Measures through coated surfaces and eliminates paint thickness using a dual-element transducer in echo-echo mode ▪ Automatic identification of standard transducers or manual preset of transducer frequency ▪ Optional transducers TSTU17 and TSTU32 for measuring various materials ▪ RS232 interface for PC connection ▪ Upper and lower limit settings with audible alarm ▪ Differential mode displays the deviation between measured thickness and preset reference value ▪ Memory capacity of up to 500 measurement data points ▪ Selectable resolution: 0.001 mm or 0.01 mm |
| Technical Specification | |
| Measuring Range (depends on probe) | Transducer 5PØ10/90°: 1.2–200 mm (steel, T-E mode); 3–20 mm (steel, E-E mode); Transducer TSTU32: 5–300 mm (steel, T-E mode) |
| Display Resolution | 0.001 mm or 0.01 mm |
| Sound Velocity | 1000–9999 m/s |
| Display | Backlight |
| Measuring Accuracy | ± (1% H + 0.1) mm (H = actual thickness) |
| Data Output | RS232 |
| Calibration Plate | 4.0 mm (steel) |
| Power Supply | 2 × AA batteries (1.5 V) |
| Unit Selection | mm / inch |
| Operating Temperature | −10 to 60 °C |
| Dimensions (mm) | 152 × 74 × 35 |
| Weight (g) | 220 |
| Standard Delivery | |
| Main Unit | 1 |
| Transducer 5PΦ10/90° | 1 |
| Couplant | 1 |
| Protective Sheath (for Main Unit) | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
