| General Information | |

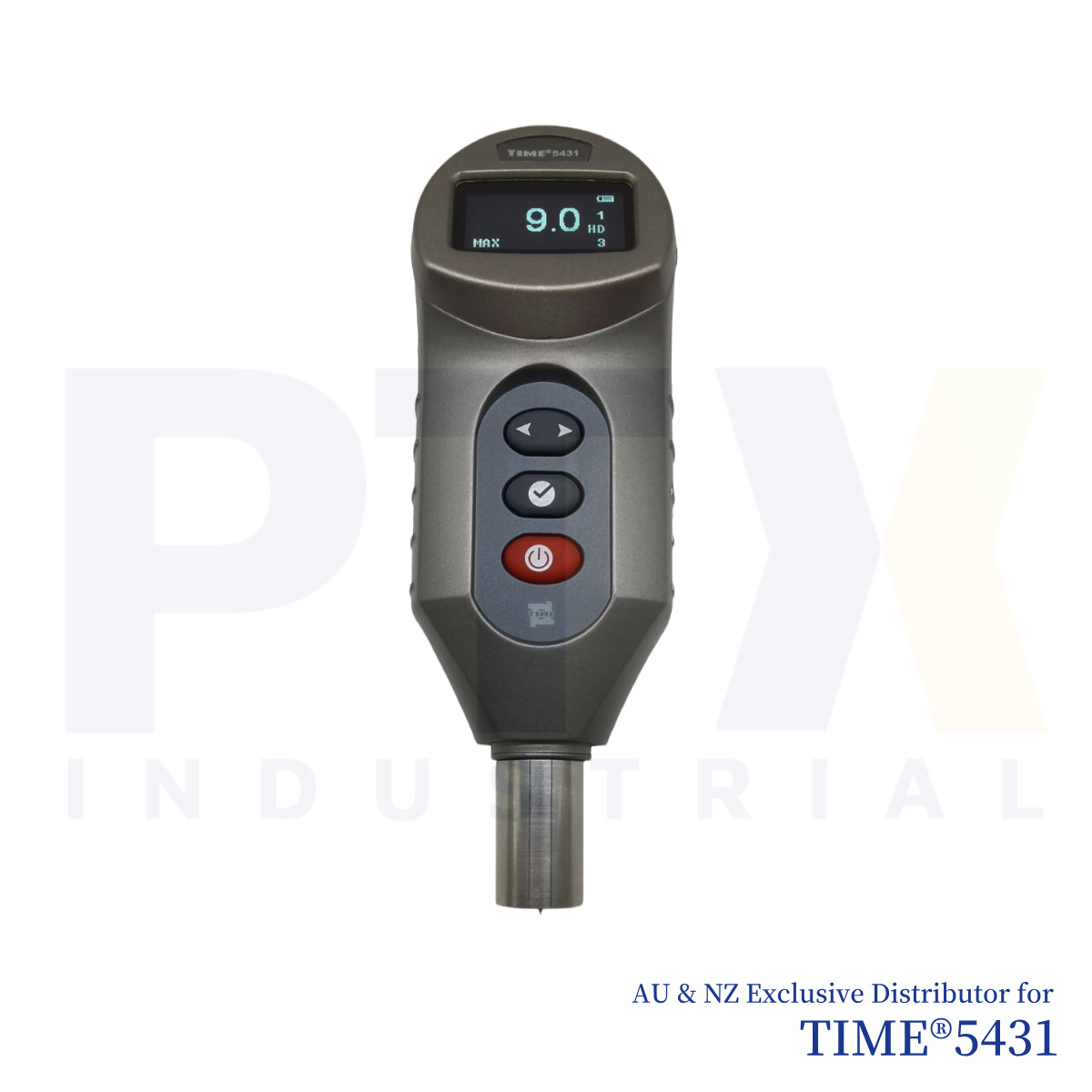

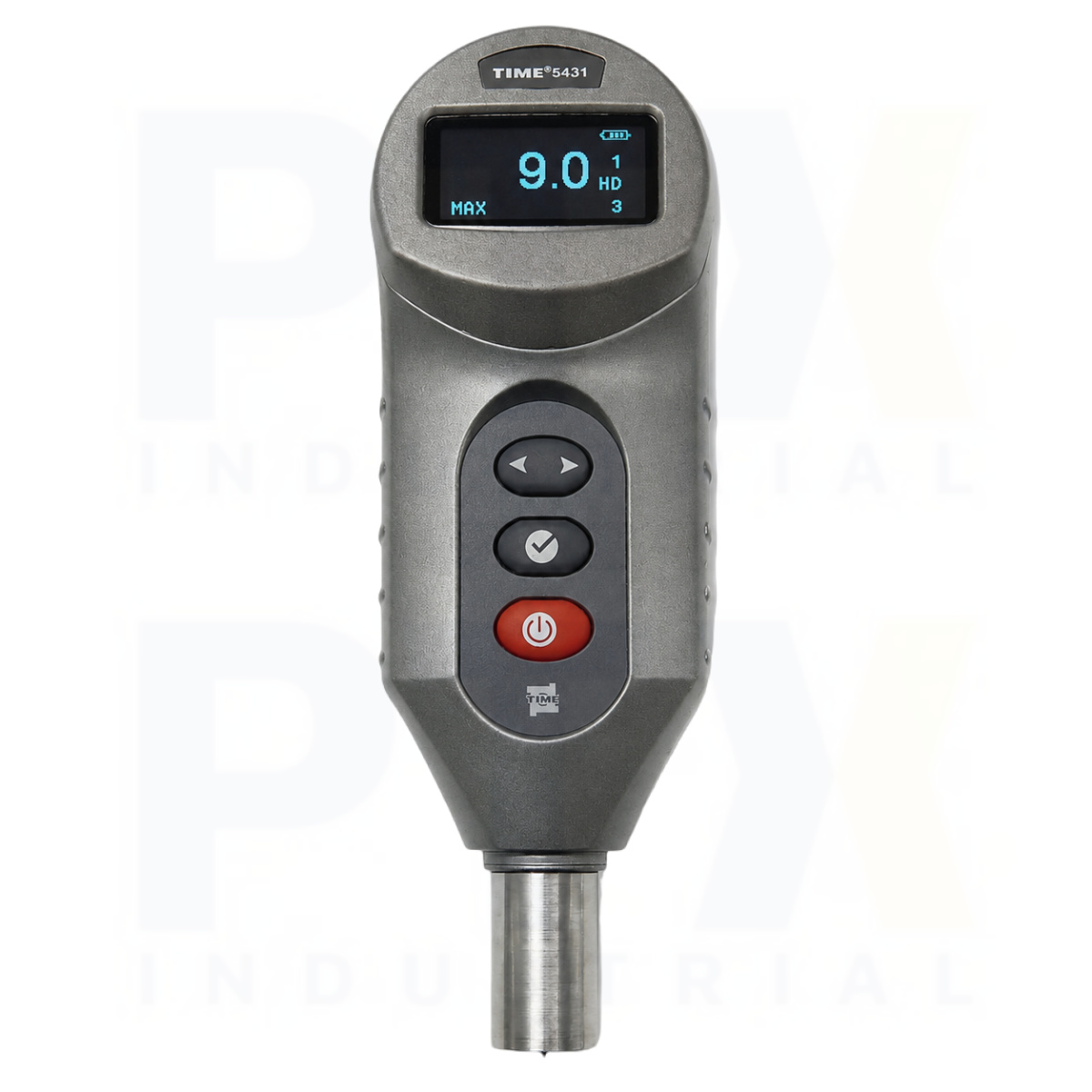

| Category | Portable Shore Hardness Tester |
| Model | TIME®5431 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features |
▪ TIME®5431 Shore D hardness tester for measuring the hardness of hard plastics and rubber materials ▪ Equipped with LVDT displacement sensor for high accuracy and reliable performance in harsh environments ▪ OLED display provides clear hardness value readout with menu-based operation ▪ Automatic zero-point calibration ▪ Three operating modes: real-time, peak value hold, and timed hold ▪ Peak value hold mode automatically locks the maximum hardness value ▪ Timed hold mode allows setting from 1 to 60 seconds, with automatic timing and value locking ▪ In lock modes, upper and lower limits can be preset with alarm indication when exceeded; supports average calculation and automatic removal of outliers ▪ Stores up to 200 averaged lock values ▪ Optional software enables data transfer to PC via USB in Microsoft Word or Excel format |
| Technical Specification | |
| Application | Hardness > 90 HA |
| Hardness Scale | Shore D |
| Measuring Range | 0–100 HD |
| Tolerance | ≤ ±1 HD (20–90) |
| Display Resolution | 0.1 HD |
| Data Output | USB |
| Power Supply | Built-in rechargeable battery |
| Operating Temperature (°C) | 0–40 |
| Continuous Operating Time (h) | 24 |
| Dimensions (mm) | 173 × 56 × 42 |
| Weight (g) | 200 |
| Standard Delivery | |
| Main Unit | 1 |
| Test Block | 1 |
| Power Adapter | 1 |
| Operation Stand (for TIME5433) | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
