▸Description

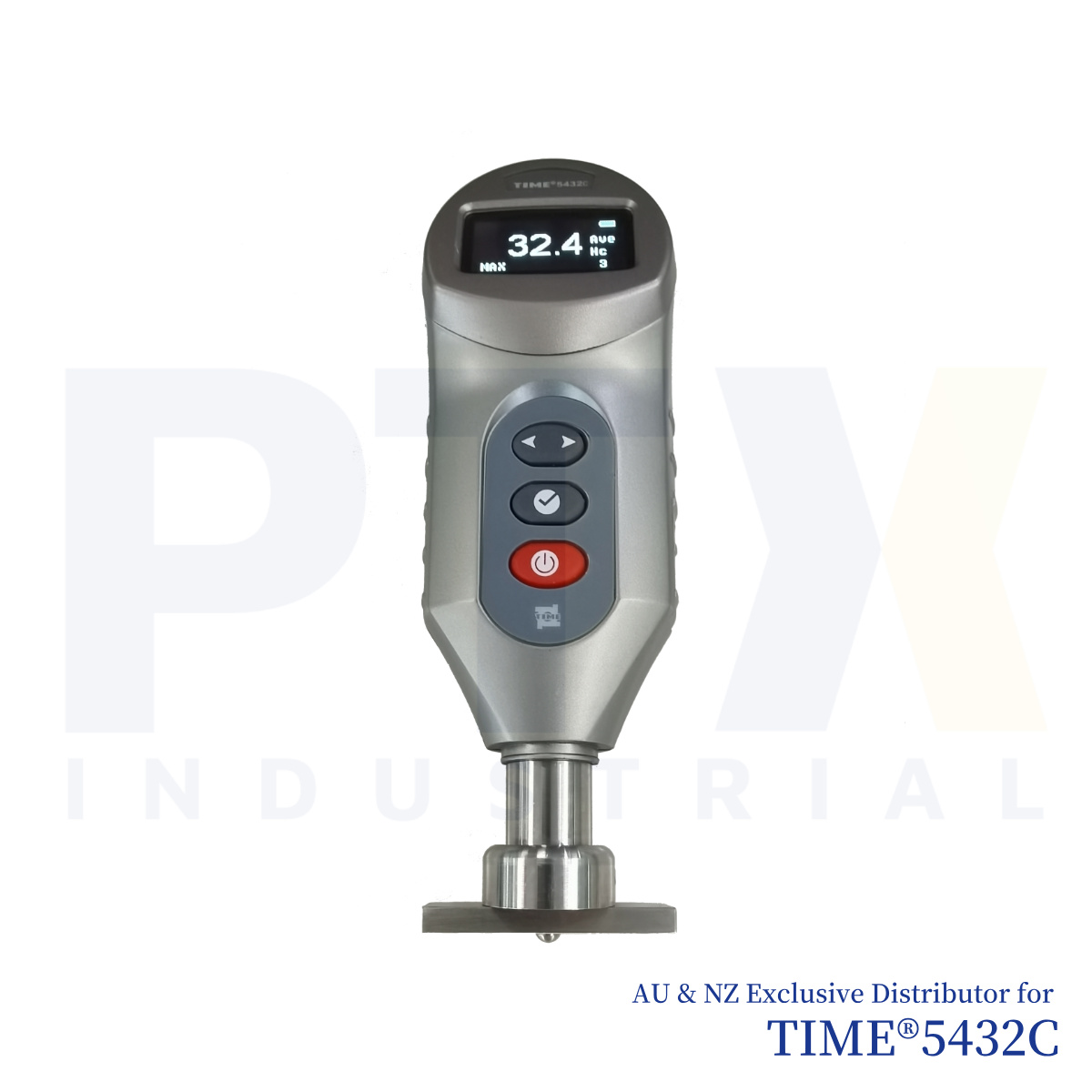

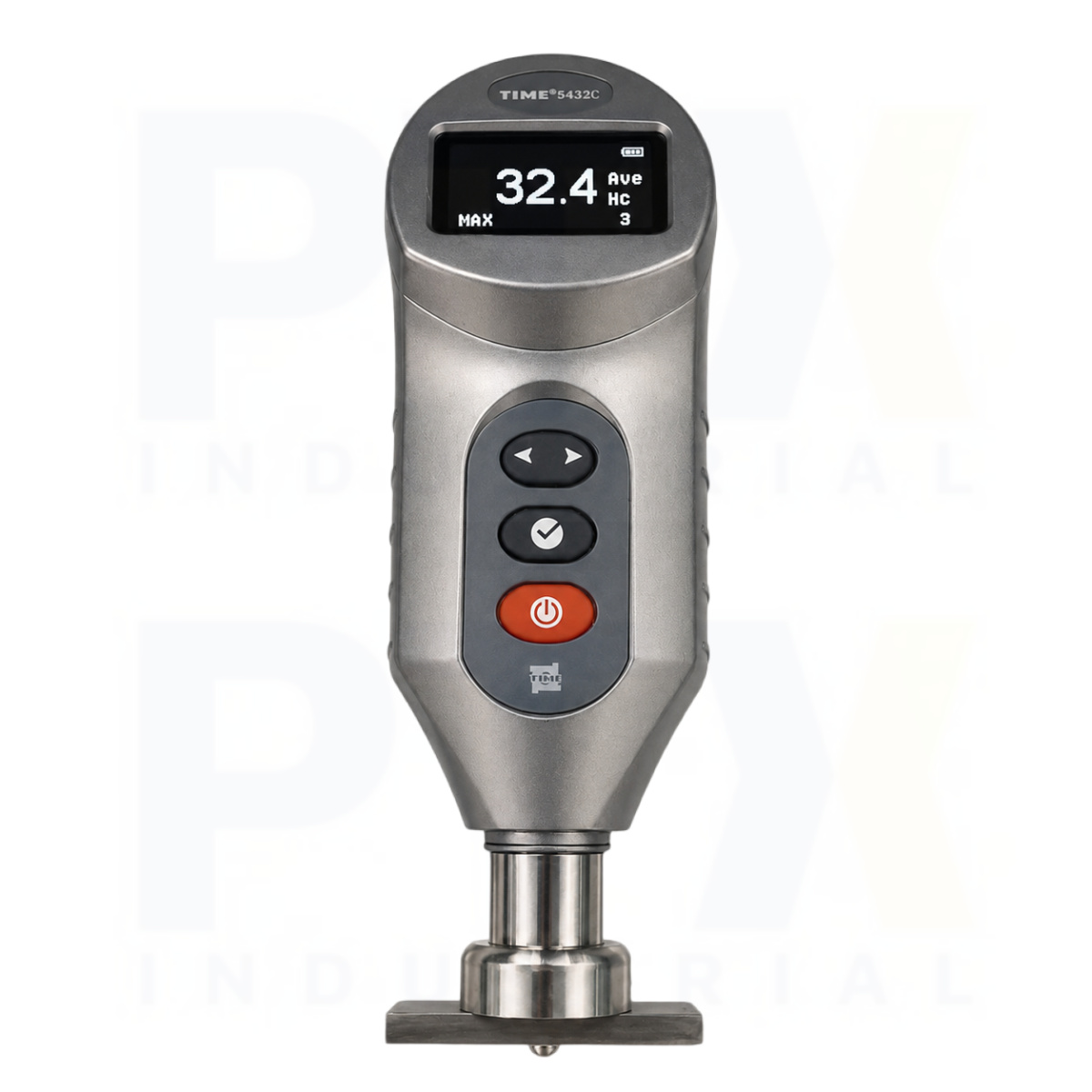

Professional Portable Asker C Hardness Tester
The TIME5432C Asker C Hardness Tester is a professional portable hardness tester designed for accurate hardness measurement of microporous materials commonly used in the rubber and plastics industry. Ideal for footwear manufacturing, EVA foam production, sponge materials, cellular rubber, and other microporous materials, the TIME5432C delivers reliable Asker C hardness measurements with excellent repeatability. Equipped with a high-precision LVDT displacement sensor, the instrument provides stable measurement performance and dependable accuracy, making it suitable for quality control, production, laboratories, and incoming material inspection.
The TIME5432C Portable Asker C Hardness Tester measures across the full Asker C hardness range from 0 to 100 Hc with a resolution of 0.1 Hc. Furthermore, the instrument offers three measurement modes, including real-time measurement, peak value hold, and timed hold, allowing operators to optimise testing procedures for different materials and production requirements. Automatic zero-point calibration helps maintain measurement accuracy while reducing setup time before inspection.
Designed for Industrial Inspection
The bright OLED display provides clear hardness readings together with an intuitive menu interface for simple and efficient operation. In addition, programmable upper and lower hardness limits with audible alarm notifications simplify PASS/FAIL inspections during production and batch testing. The instrument automatically calculates average values while removing abnormal readings, helping improve measurement consistency and minimise operator influence.
The TIME5432C Portable Asker C Hardness Tester stores up to 200 averaged measurement records for efficient quality documentation and inspection management. Moreover, optional PC software enables measurement data to be transferred via USB to Microsoft Word or Excel for reporting, analysis, and long-term record keeping. The built-in rechargeable battery provides up to 24 hours of continuous operation, making the TIME5432C an ideal solution for routine hardness testing in footwear manufacturing, foam production, and rubber processing industries.
Key Features
- Professional portable Asker C hardness tester for microporous materials
- Designed for footwear materials, EVA foam, sponge, and cellular rubber
- High-precision LVDT displacement sensor for excellent accuracy and repeatability
- Measures Asker C hardness from 0 to 100 Hc
- Three operating modes including real-time, peak hold, and timed hold
- Automatic zero-point calibration
- OLED display with intuitive menu operation
- Programmable upper and lower hardness limits with audible alarm
- Automatic average calculation and outlier removal
- Stores up to 200 averaged measurement records
- USB data transfer with optional PC software for Word and Excel reporting
- Built-in rechargeable battery with up to 24 hours of continuous operation
| General Information | |
| Category | Portable Shore Hardness Tester |
| Model | TIME5432C |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ TIME5432C hardness tester for measuring microporous materials used in rubber and plastic footwear ▪ Equipped with LVDT displacement sensor for high accuracy and reliable performance in harsh environments ▪ OLED display provides clear hardness value readout with menu-based operation ▪ Automatic zero-point calibration ▪ Three operating modes: real-time, peak value hold, and timed hold ▪ Peak value hold mode automatically locks the maximum hardness value ▪ Timed hold mode allows setting from 1 to 60 seconds, with automatic timing and value locking ▪ In lock modes, upper and lower limits can be preset with alarm indication when exceeded; supports average calculation and automatic removal of outliers ▪ Stores up to 200 averaged lock values ▪ Optional software enables data transfer to PC via USB in Microsoft Word or Excel format |
| Technical Specification | |
| Application | Microporous materials |
| Hardness Scale | Asker C |
| Measuring Range | 0–100 Hc |
| Tolerance | ≤ ±1 Hc (20–90) |
| Display Resolution | 0.1 Hc |
| Data Output | USB |
| Power Supply | Built-in rechargeable battery |
| Operating Temperature (°C) | 0–40 |
| Continuous Operating Time (h) | 24 |
| Dimensions (mm) | 168 × 56 × 42 |
| Weight (g) | 249 |
| Standard Delivery | |
| Main Unit | 1 |
| Test Block | 1 |
| Power Adapter | 1 |
| Operation Stand (for TIME5433) | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
