| General Information | |

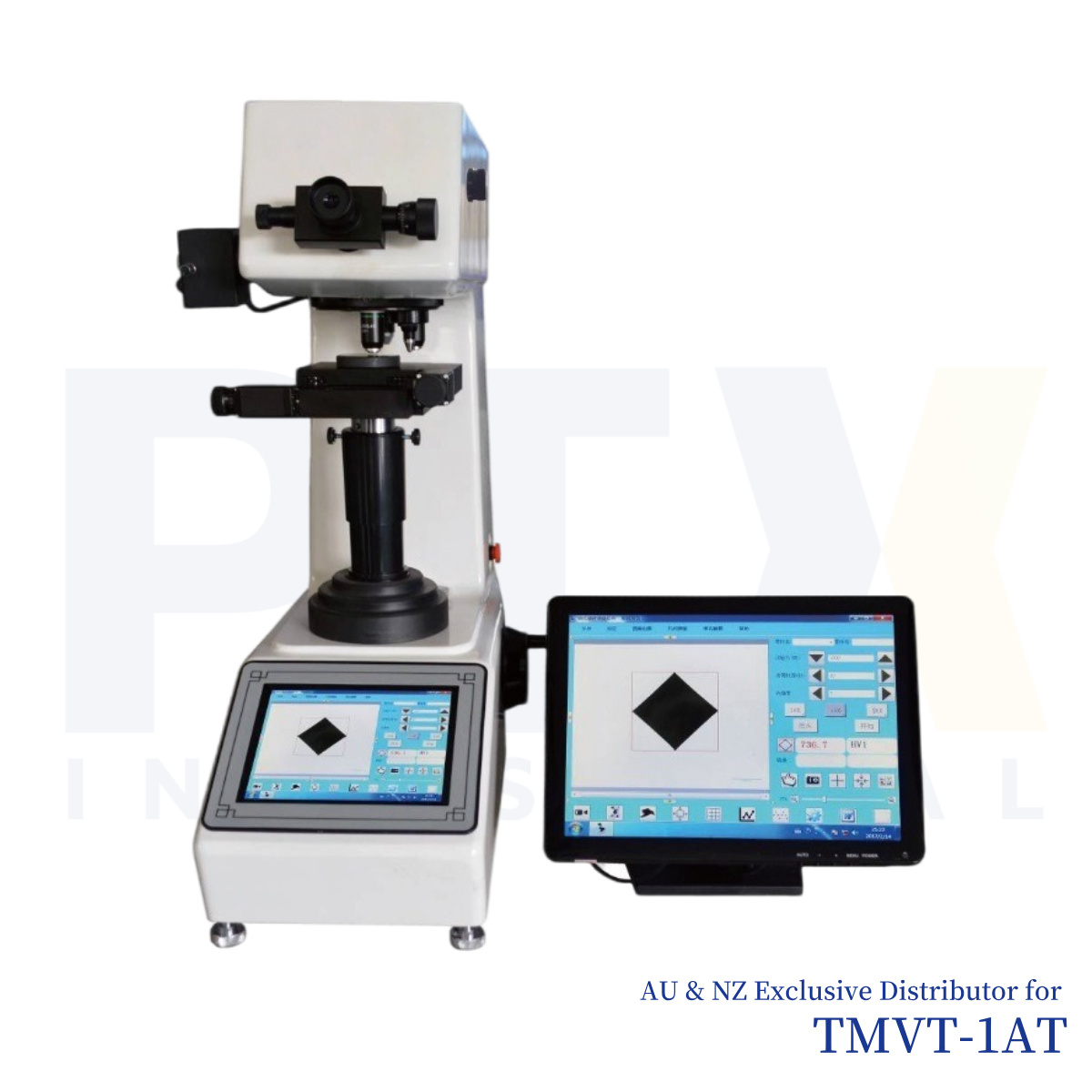

| Category | Intelligent Fully Automatic Micro Vickers Hardness Tester |
| Model | TMVT-1AT |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | This instrument is a new-generation automatic Micro Vickers hardness tester, featuring an integrated design combining the hardness tester and a panel computer. Equipped with a Windows operating system, it provides full computer functionality.
With a CCD image acquisition system, indentation images are displayed directly on the touch screen, and Vickers hardness values are calculated automatically. This eliminates the need for traditional eyepiece-based diagonal measurement, reducing operator eye strain and fatigue while improving measurement efficiency and accuracy. This represents a significant advancement in Micro Vickers hardness testing technology. ▪ User-friendly operation: All testing parameters can be set via the panel computer. The touch screen interface ensures fast, intuitive, and convenient operation with clear display. |
| Application | Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers. |
| Technical Specification | |
| Test Force | 0.098N(10gf), 0.246N(25gf), 0.49N(50gf), 0.98N(100gf), 1.96N(200gf),2.94N(300gf), 4.90N(500kgf), 9.80N(1000gf), |
| Test Range | 1HV~2967HV |
| Test Mode | HV/HK |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Shifting between Objective and Indenter | Automatic Shifting |
| Computer | CPU: Intel I5, Memory: 8G, SSD: 240G |
| Conversion Scale | 1.30 Million |
| CCD Pixel | HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW |
| Data Output | WORD or EXCEL Report with Curve Chart |
| Hardness Reading | Indentation Displaying and Automatic Measuring on Touch Screen |
| Objective | 10× (Observe), 40× (Measure) |
| Resolution | 10×: 0.1μm, 40×: 0.025μm |
| Dwell Time | 0~60s |
| Light Source | Halogen Lamp |
| X-Y Test Table | Size: 110×110mm; Travel: 50×50mm; Resolution: 0.002mm |
| Max. Height of Specimen | 170mm |
| Throat | 130mm |
| Power Supply | 220-240 V~, 50 Hz |
| Execute Standard | ISO 6507, ASTM E384, JIS Z2244 |
| Dimension | 560×335×675mm, Packing Dimension: 650×380×960mm |
| Weight | Net Weight: 52kg Gross Weight: 67kg |
| Standard Delivery | |
| Main unit | 1 |
| Diamond Micro Vickers Indenter | 1 |
| External Touch Screen | 1 |
| Weights | 6 |
| Motorized Cross Test Table | 1 |
| Horizontal Regulating Screw | 4 |
| Fuse 1A | 2 |
| Power Cable | 2 |
| Hardness Block 400~500 HV0.2 | 1 |
| Anti-dust Cover | 1 |
| Mouse | 1 |
| Usage Instruction Manual | 1 |
| 10× Eyepiece | 1 |
| 10×, 40× Objective | 1 |
| Weight Axis | 1 |
| Thin Specimen Test Table | 1 |
| Flat Clamping Test Table | 1 |
| Filament Clamping Test Table | 1 |
| Level | 1 |
| Halogen Lamp 12V, 15~20W | 1 |
| Screw Driver | 2 |
| Hardness Block 700~800 HV1 | 1 |
| U disk | 1 |
