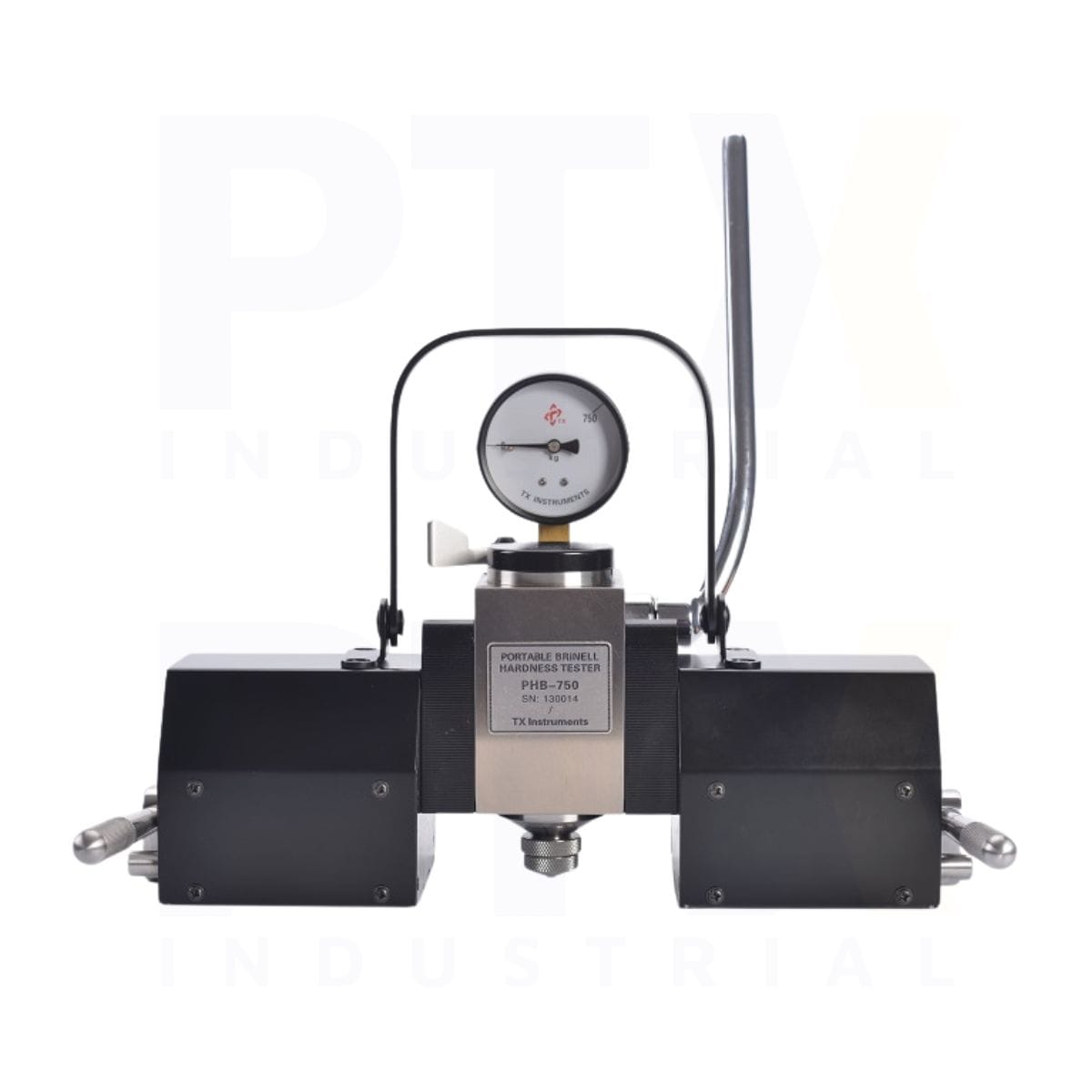

The PHB-750 Magnetic Hydraulic Brinell Hardness Tester is a portable Brinell hardness tester designed for fast and accurate hardness testing of large ferromagnetic steel components without the need for clamping. Its powerful magnetic base securely attaches to flat steel surfaces, allowing hardness testing on heavy, assembled, or fixed structures that cannot be moved to a laboratory.
Using a 750 kgf hydraulic test force and a 5 mm carbide ball indenter, the PHB-750 produces larger, more representative Brinell indentations than conventional 2.5 mm portable testers, making measurements easier to read and improving testing reliability. The tester delivers measurement accuracy fully compliant with ISO 6506, ASTM E10, and ASTM E110, providing performance comparable to stationary Brinell hardness testers.
Ideal for field inspection, manufacturing, maintenance, and quality control, the PHB-750 is widely used for steel plates, structural steel, large forgings, castings, pressure vessels, pipelines, and heavy welded structures where conventional Brinell testers cannot be used.
Key Features
- Powerful magnetic base for one-sided testing without clamping
- 750 kgf manual hydraulic loading
- Standard 5 mm carbide ball indenter
- Fully compliant with ISO 6506, ASTM E10, and ASTM E110
- Larger indentation provides improved readability and representativeness
- Suitable for large, assembled, or fixed steel structures
- Laboratory-grade accuracy comparable to benchtop Brinell testers
- Portable design for workshop and on-site inspection
- Ideal for ferromagnetic steel materials
Applications
- Structural steel and steel fabrication
- Large castings and forgings
- Heat-treated steel components
- Pressure vessels and storage tanks
- Pipelines and welded structures
- Heavy machinery, mining and construction equipment
- Maintenance inspection and field quality control
