▸Description

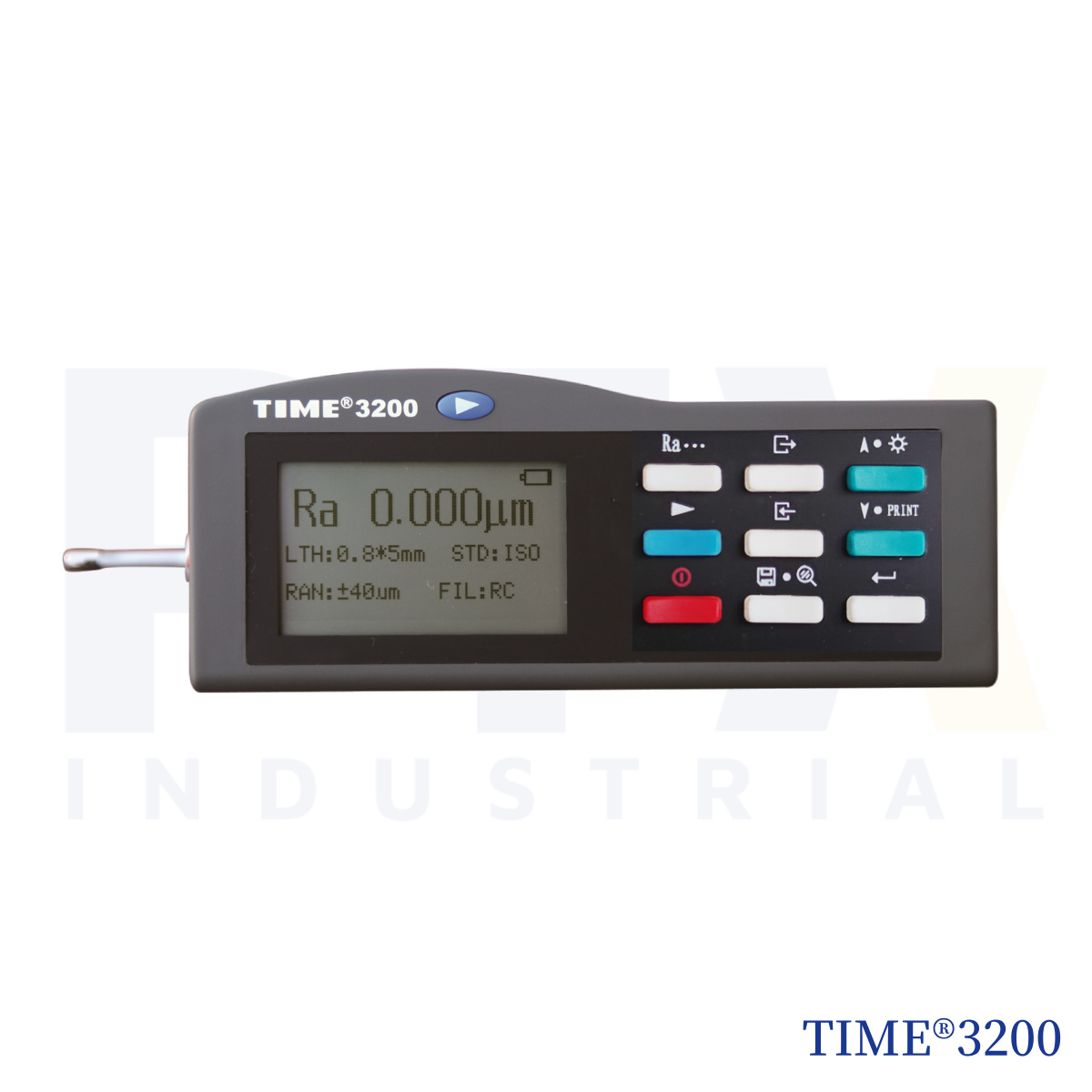

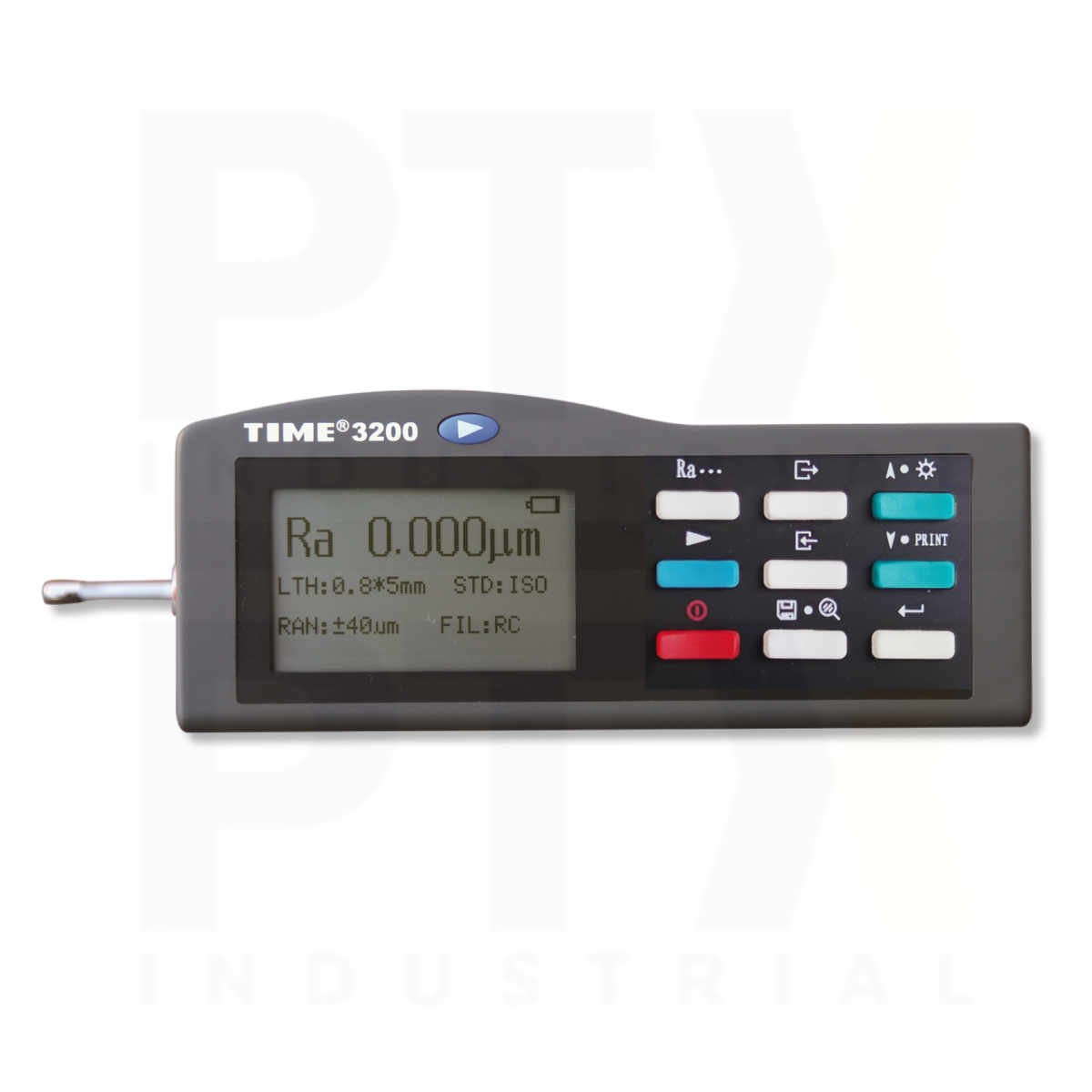

Professional Surface Roughness Tester
The TIME3200 Surface Roughness Tester is a professional surface roughness tester designed for high-precision surface finish measurement across manufacturing, machining, quality control, and laboratory applications. Featuring over a dozen internationally recognised roughness parameters, advanced digital filtering, graphical profile analysis, and PC connectivity, the TIME3200 provides comprehensive surface texture evaluation for precision engineering industries. Complying with ISO standards and compatible with DIN, ANSI, and JIS standards, the TIME3200 is an ideal solution for inspecting machined components, moulds, bearings, shafts, automotive parts, aerospace components, and precision manufactured products.
The TIME3200 Surface Roughness Tester measures a comprehensive range of roughness parameters, including Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, and Rmr. Furthermore, the high-accuracy TIMES100 inductive pickup with a precision diamond stylus delivers excellent repeatability and measurement accuracy for both roughness profiles (R) and primary profiles (P). Selectable cut-off lengths, evaluation lengths, tracing lengths, and multiple digital filters allow the instrument to meet a wide variety of international surface roughness measurement standards.
Designed for Professional Surface Finish Analysis
The large backlit LCD provides clear display of measurement results, while the pickup stylus position indicator simplifies accurate probe positioning during inspection. In addition, the TIME3200 stores up to 15 groups of measurement data together with graphical profiles, allowing users to review previous inspections directly on the instrument.
The TIME3200 Surface Roughness Tester connects to a PC via RS232 or USB using the powerful TIMESurf software for advanced data analysis, report generation, and long-term inspection management. Moreover, the instrument supports optional printer connection for on-site printing of measurement results and profile graphs. Powered by a rechargeable lithium-ion battery and compatible with optional measuring platforms and support accessories, the TIME3200 delivers professional surface roughness measurement for demanding industrial environments.
Key Features
- Professional surface roughness tester for advanced surface finish analysis
- Measures Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, and Rmr parameters
- High-accuracy TIMES100 inductive pickup with precision diamond stylus
- Supports roughness (R) and primary (P) profile evaluation
- Selectable cut-off, evaluation, and tracing lengths
- Digital filters including RC, PC-RC, Gauss, and D-P
- Large backlit LCD with pickup position indicator
- Stores up to 15 groups of measurement data and profile graphs
- RS232 and USB communication with TIMESurf analysis software
- Supports printer connection for on-site report printing
- Rechargeable lithium-ion battery with optional measuring accessories
- Complies with ISO standards and compatible with DIN, ANSI, and JIS standards
| General Information | |
| Category | Surface Roughness Tester |
| Model | TIME3200 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ Over a dozen measurement parameters suitable for surface roughness testing across various mechanical manufacturing processes in production lines, workshops, and laboratories ▪ High-accuracy inductive pickup ▪ User-friendly operation with manual controls and large backlit LCD display ▪ Pickup stylus position indicator ▪ Data transfer to PC via RS232 with advanced TIMESurf software for analysis and data management ▪ Supports connection to printer for on-site printing of data and graphs ▪ Storage and recall of up to 15 groups of data and graphs ▪ Supports Rk parameters and graphical analysis ▪ Digital filters available: RC, PC-RC, Gauss, D-P ▪ Optional accessories (e.g., measuring platform, steel support) for improved accuracy and ease of operation ▪ Conforms to ISO standards; compatible with DIN, ANSI, and JIS standards ▪ High-quality Li-ion rechargeable battery |
| Technical Specification | |
| Roughness Parameters | Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr |
| Assessed Profiles | Roughness profile (R); Primary profile (P) |
| Measuring System | Metric, Imperial |
| Display Resolution | 0.001 µm |
| Data Output | RS232 / USB |
| Pickup Measuring Range | ±20 µm; ±40 µm; ±80 µm |
| Cut-off Length (mm) | 0.25 / 0.8 / 2.5 / Auto |
| Evaluation Length | 1–5 L (selectable) |
| Tracing Length | 3–7 L (selectable) |
| Digital Filter | RC, PC-RC, Gauss, D-P |
| Max. Tracing Length | 17.5 mm / 0.71 inch |
| Min. Tracing Length | 1.3 mm / 0.052 inch |
| Pick-up | TIMES100 inductive pickup; diamond stylus radius 5 µm; angle 90° |
| Tolerance | ≤ ±10% |
| Repeatability | ≤ 6% |
| Power Supply | Rechargeable Li-ion battery |
| Dimensions (mm) | 140 × 52 × 48 |
| Weight (g) | 440 |
| Standard Delivery | |
| Main Unit | 1 |
| Standard Pickup (TIMES100) | 1 |
| Roughness Specimen (Ra) | 1 |
| Charger | 1 |
| Protection Nose | 1 |
| Steel Support | 1 |
| Dataview Software | 1 |
| Communication Cable | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
