▸Description

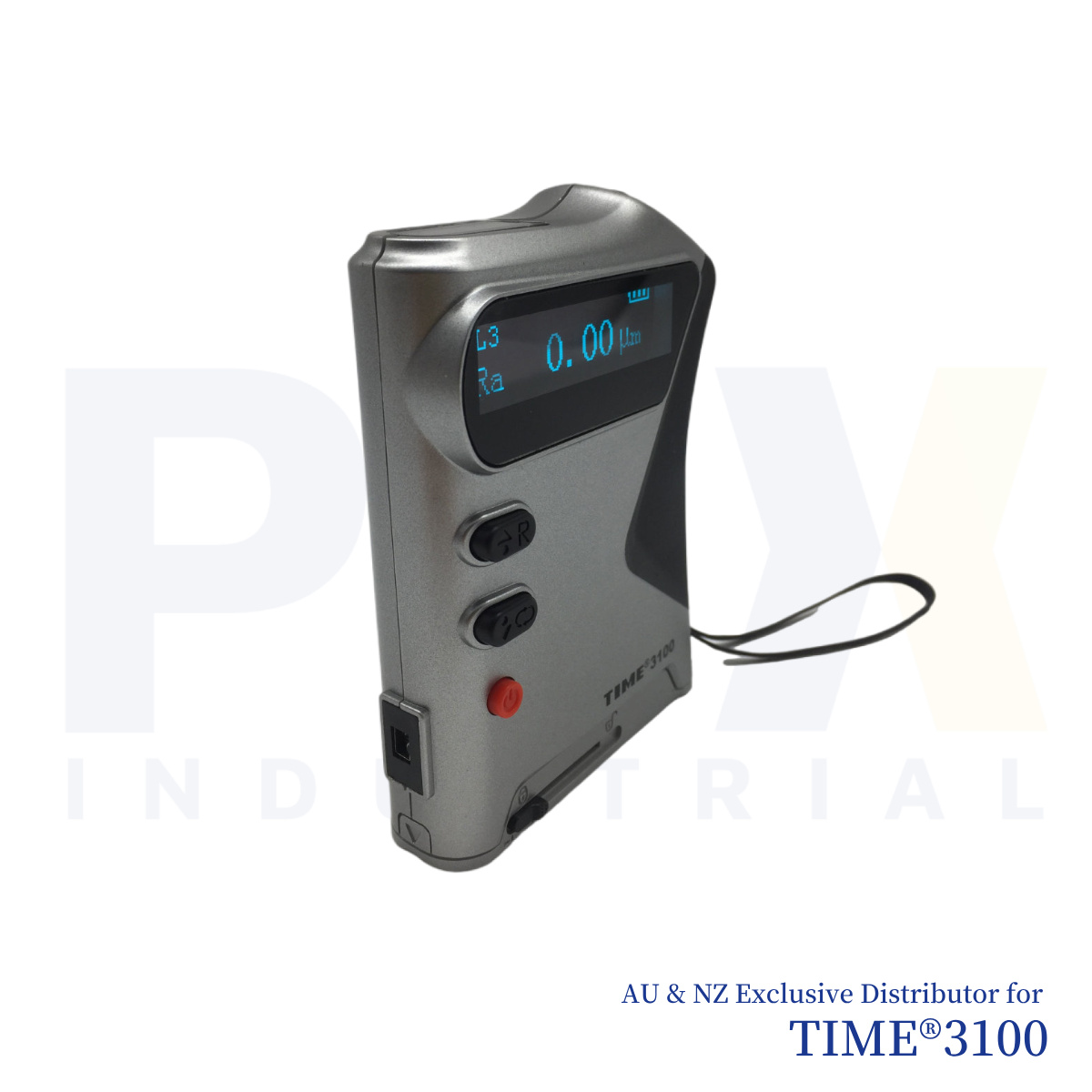

Professional Surface Roughness Tester
The TIME3100 Surface Roughness Tester is a professional surface roughness tester designed for fast, accurate, and portable measurement of surface finish in manufacturing, machining, quality control, and laboratory applications. Compact enough to fit in a pocket while delivering reliable measurement performance, the TIME3100 is an ideal solution for evaluating the surface roughness of machined parts, precision components, shafts, bearings, moulds, and fabricated metal surfaces. Complying with ISO and DIN standards, the instrument provides dependable roughness measurements for production inspection and quality assurance.
The TIME3100 Surface Roughness Tester measures the two most widely used surface roughness parameters, Ra and Rz, across a measuring range of Ra 0.05–6.5 μm and Rz 0.1–50 μm. Furthermore, the instrument is suitable for measuring flat surfaces, external cylindrical surfaces, and inclined workpieces, providing excellent flexibility across a wide range of industrial applications. The precision piezoelectric pickup and diamond stylus ensure stable measurement performance and repeatable results throughout daily operation.
Designed for Industrial Surface Finish Inspection

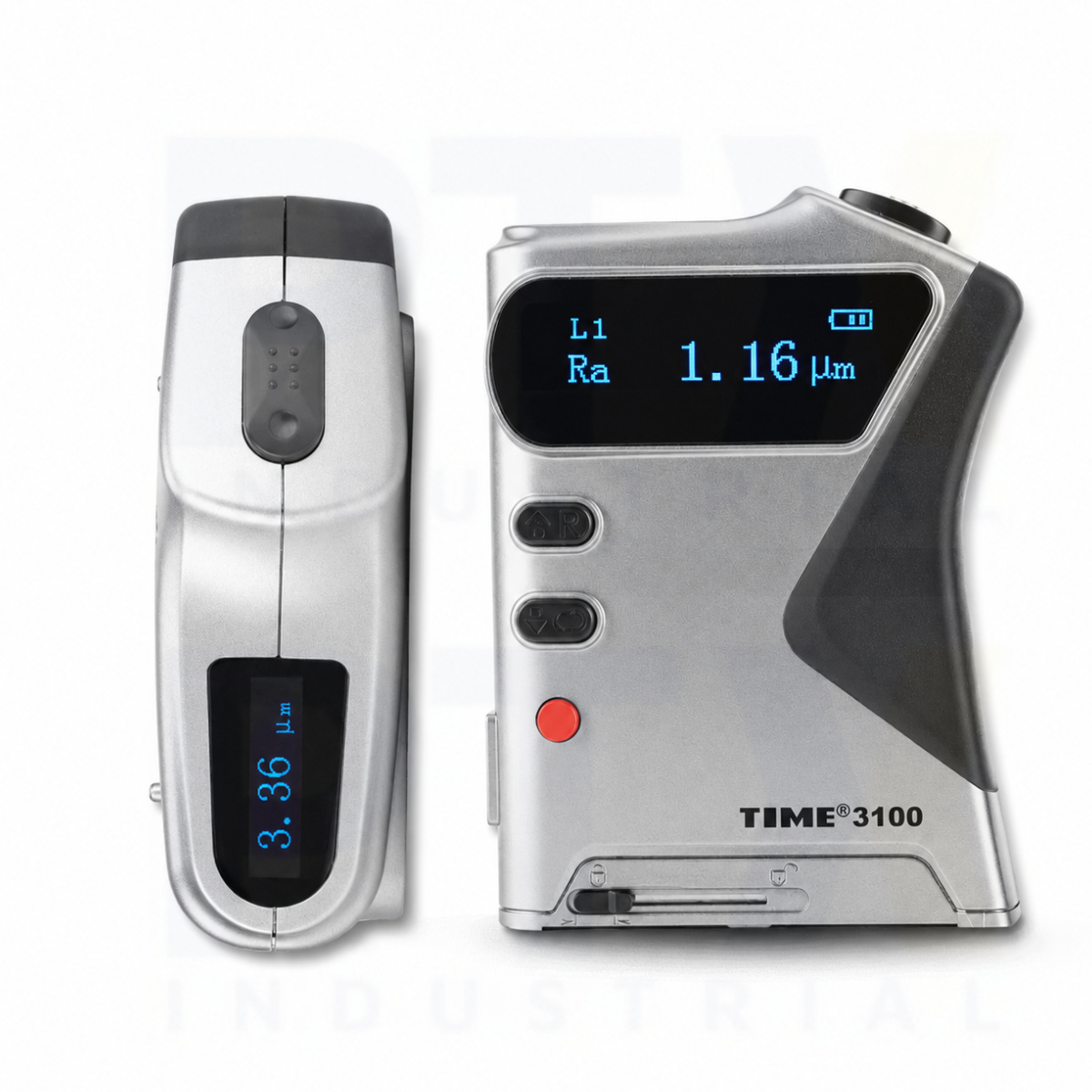

The TIME3100 features dual OLED dot matrix displays positioned on both the front panel and the top cover, allowing operators to conveniently view measurement results from different working positions. In addition, all calculated roughness values are displayed immediately after each measurement, improving inspection efficiency on production lines and in workshop environments.
The TIME3100 Surface Roughness Tester incorporates enhanced sensor protection for improved long-term reliability while maintaining high measurement accuracy. Moreover, low battery indication, over-limit alarms, and system fault warnings provide dependable operation during daily inspections. Powered by a rechargeable lithium-ion battery with approximately three hours of charging time, the TIME3100 offers a practical and portable solution for professional surface roughness measurement.
Key Features
- Professional surface roughness tester for portable surface finish measurement
- Measures Ra and Rz roughness parameters
- Measuring range: Ra 0.05–6.5 μm; Rz 0.1–50 μm
- Dual OLED dot matrix displays for improved visibility
- Suitable for flat, cylindrical, and inclined surfaces
- Precision piezoelectric pickup with diamond stylus
- Immediate display of calculated roughness results
- Enhanced sensor protection for long-term stability
- Low battery, over-limit, and system fault alarms
- Rechargeable lithium-ion battery
- Compact pocket-sized design for workshop and field inspection
- Complies with ISO and DIN surface roughness measurement standards
| General Information | |
| Category | Surface Roughness Tester |
| Model | TIME3100 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ TIME3100: Dual OLED dot matrix displays—one on the front panel and one on the top cover ▪ Pocket-size design with economical pricing, suitable for production lines, workshops, and laboratories ▪ Wide measuring range applicable to most materials, including flat surfaces, external cylinders, and inclined surfaces ▪ Robust and durable design ensuring long service life with accurate and reliable results ▪ Supports both Ra and Rz roughness measurements ▪ All calculated results are displayed clearly on the backlit LCD immediately after measurement ▪ Indicators and alarms for low battery, out-of-limit values, and system faults ▪ Rechargeable lithium battery with improved circuit performance ▪ Enhanced sensor protection for high accuracy and stable performance ▪ Compliant with ISO and DIN standards |
| Technical Specification | |
| Roughness Parameters | Ra, Rz |
| Display | Dual OLED dot matrix screens |
| Tracing Length (mm) | 6 |
| Tracing Speed (mm/s) | 1 |
| Cut-off Lengths (mm) | 0.25 / 0.8 / 2.5 |
| Evaluation Lengths (mm) | 1.25 / 4.0 / 5.0 |
| Measuring Range | Ra: 0.05–6.5 µm; Rz: 0.1–50 µm |
| Tolerance | ±15% |
| Repeatability | <12% |
| Filter | RC analogue |
| Pick-up | Piezoelectric |
| Stylus | Diamond; radius 10 ± 2.5 µm; angle 90° (+5° / −10°) |
| Operating Temperature (°C) | 0–40 |
| Humidity | <90% |
| Storage Temperature (°C) | −25–60 |
| Power Supply | 3.7 V Li-ion battery |
| Charger | DC 6 V; charging time approx. 3 h |
| Dimensions (mm) | 116 × 86 × 30 |
| Weight (g) | 200 |
| Standard Delivery | |
| Main Unit | 1 |
| Roughness Specimen (Ra) | 1 |
| Charger | 1 |
| TIME Certificate | 1 |
| Warranty Card | 1 |
| Instruction Manual | 1 |
