Professional Smart Surface Roughness Tester
The TIME3226 Surface Roughness Tester is a professional smart surface roughness tester designed for advanced surface finish measurement, digital inspection, and intelligent quality control. Combining a high-precision TIMES201 inductive pickup with wireless Bluetooth communication and a dedicated smartphone application, the TIME3226 delivers laboratory-grade surface roughness analysis together with powerful mobile data management. Complying with ISO 1997, JIS 2001, and ANSI standards, the TIME3226 is an ideal solution for manufacturing, machining, aerospace, automotive, precision engineering, and laboratory applications requiring efficient surface finish inspection and digital reporting.

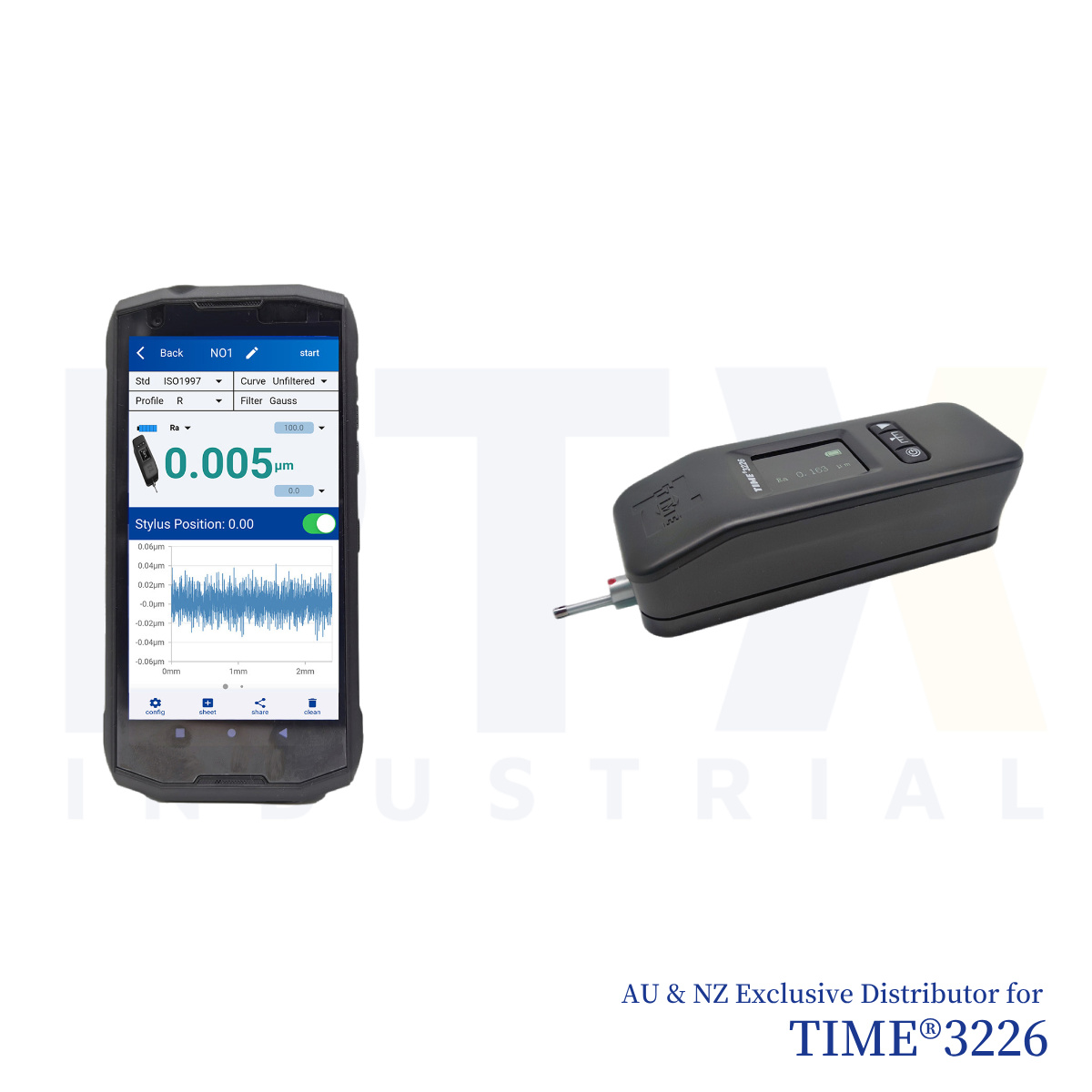

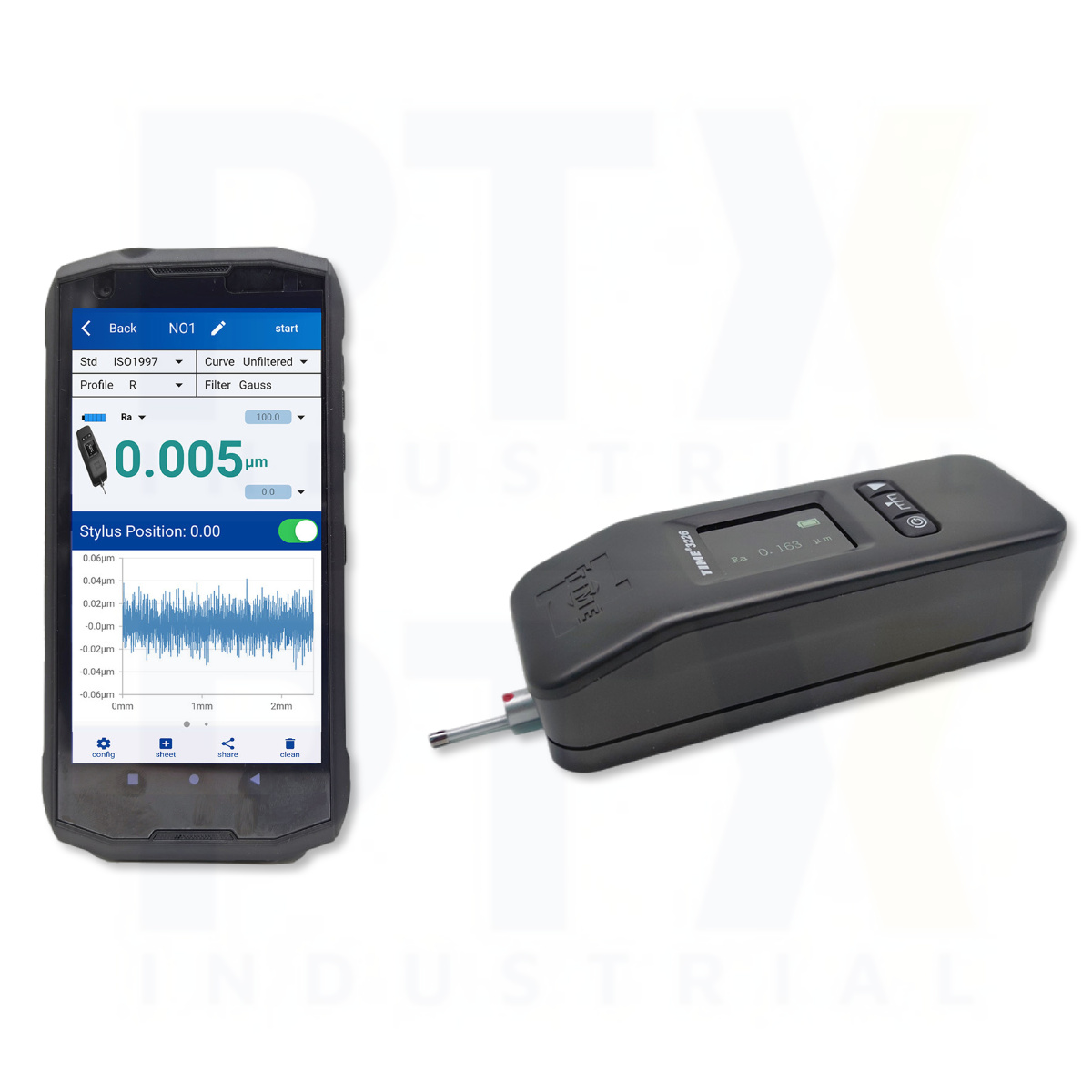

The TIME3226 Surface Roughness Tester consists of a compact measuring unit, a high-accuracy TIMES201 pickup, and an industrial smartphone communicating in real time via Bluetooth. Furthermore, the mobile application displays measurement parameters and graphical profiles while providing comprehensive inspection functions, including cloud data storage, customised work orders, report generation, and real-time data sharing. Advanced digital processing enables operators to manage inspection records more efficiently than traditional standalone roughness testers.
Designed for Smart Digital Surface Finish Inspection
The TIME3226 supports both roughness profile (R) and primary profile (P) evaluation with selectable cut-off lengths, evaluation lengths, and Gauss or 2RC digital filtering to satisfy international surface roughness measurement standards. In addition, programmable upper and lower tolerance limits provide automatic over-limit alarms for rapid PASS/FAIL inspection during production and quality assurance.
The TIME3226 Surface Roughness Tester stores measurement records directly within the smartphone application, allowing virtually unlimited storage together with additional inspection information such as photographs, videos, GPS location data, and voice records. Moreover, cloud synchronisation, remote software upgrades, multilingual operation, and voice broadcast functions further improve inspection efficiency. Powered by a rechargeable lithium-ion battery, the TIME3226 provides an intelligent surface roughness measurement solution for modern digital manufacturing environments.
Key Features
- Professional smart surface roughness tester with Bluetooth connectivity
- Wireless communication between measuring unit and smartphone
- High-accuracy TIMES201 inductive pickup with precision diamond stylus
- Mobile app with real-time graphical profile display
- Supports roughness (R) and primary (P) profile evaluation
- Gauss and 2RC digital filtering
- Cloud storage, customised work orders, and report generation
- Stores inspection records with photos, videos, and location information
- Programmable over-limit alarms for PASS/FAIL inspection
- Remote software upgrades and multilingual operation
- Voice broadcast function for improved inspection efficiency
- Complies with ISO 1997, JIS 2001, and ANSI surface roughness measurement standards
| General Information | |
| Category | Surface Roughness Tester |
| Model | TIME3226 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | ▪ TIME®3226 surface roughness tester consists of a smartphone, TIME3226 main unit, and TIMES201 pickup, communicating via Bluetooth ▪ TIME3226 main unit measures surface roughness and transmits data to the smartphone in real time ▪ Dedicated mobile app enables data reception and full functionality ▪ Supports remote software upgrade ▪ Over-limit alarm with preset upper and lower limits ▪ Language options: Chinese and English ▪ Filtering modes: Gauss, 2RC ▪ Compliant with ISO 1997, JIS 2001, and ANSI standards ▪ Mobile app interface displays all parameters and graphs ▪ Data storage via smartphone with large capacity ▪ Measurement records support additional information such as images, videos, and location data ▪ Advanced data processing including cloud storage, customized work orders, real-time data sharing, and report generation ▪ App supports voice broadcast function ▪ Automatic power-off function |
| Technical Specification | |
| Standards | ISO 1997, JIS 2001, ANSI |
| Measuring Range | 400 µm (±200 µm) |
| Assessed Profiles | Roughness profile (R); Primary profile (P) |
| Measuring System | Metric, Imperial |
| Display Resolution | 0.001 µm |
| Pickup Measuring Range | ±20 µm; ±40 µm; ±80 µm |
| Cut-off Length (mm) | 0.08 / 0.25 / 0.8 / 2.5 |
| Evaluation Length | 1–5 L (selectable) |
| Tracing Length | 3–7 L (selectable) |
| Digital Filter | Gauss, 2RC |
| Max. Tracing Length | 17.5 mm / 0.71 inch |
| Pick-up | TIMES201 inductive pickup; diamond stylus radius 5 µm; angle 90° |
| Tolerance | ≤ ±10% |
| Repeatability | ≤ 6% |
| Power Supply | Rechargeable Li-ion battery |
| Standard Delivery | |
| Industrial Smartphone | 1 |
| TIME3226 Main Unit | 1 |
| Roughness Pickup (TIMES201) | 1 |
| Roughness Specimen (Ra) | 1 |
| Power Adapter | 1 |
| SIM Card | 1 |
| Instruction Manual | 1 |
| Warranty Card | 1 |
| TIME Certificate | 1 |
