▸Description

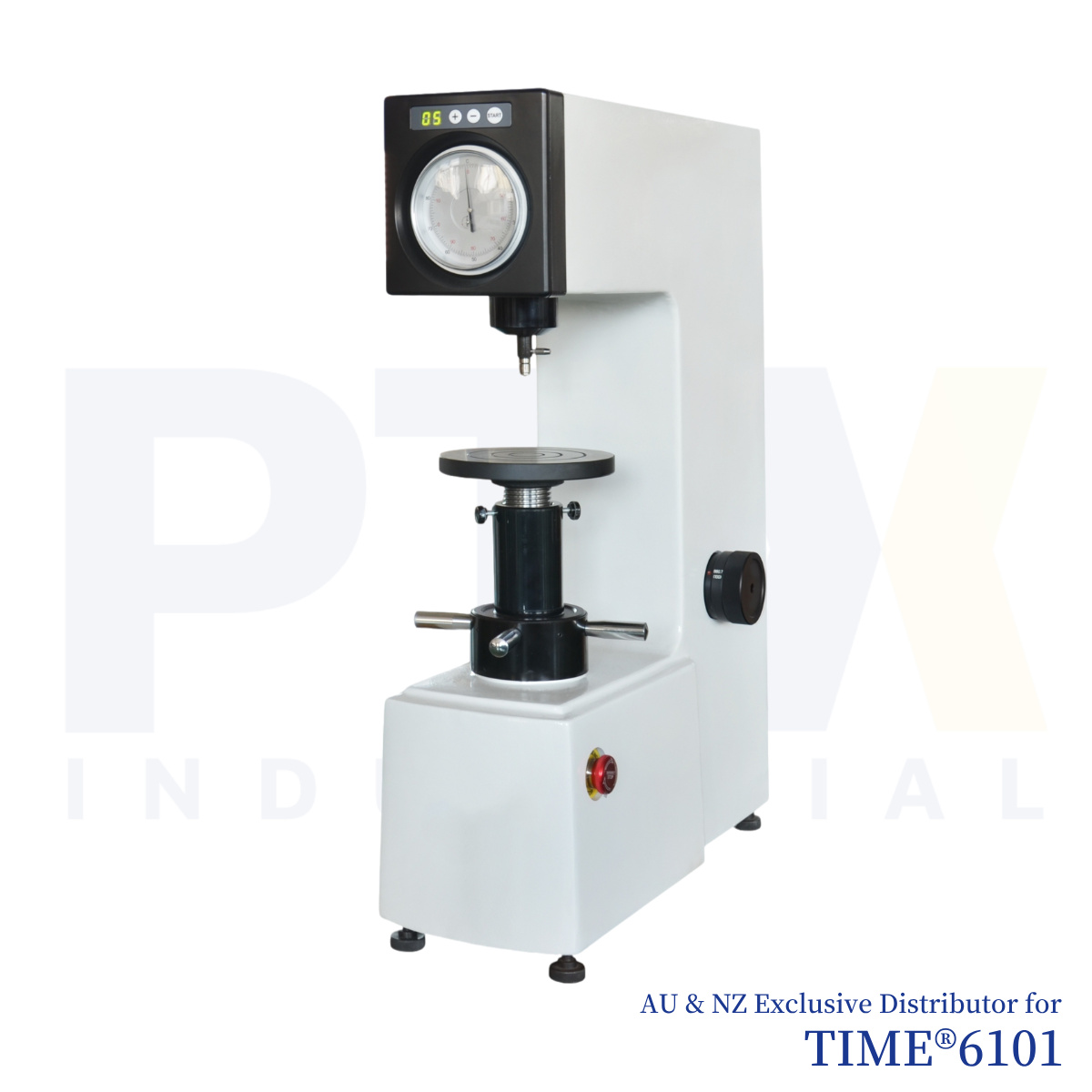

Professional Motorized Rockwell Hardness Tester
The TIME6101 Motorized Rockwell Hardness Tester is a professional Rockwell hardness tester designed for accurate, efficient, and repeatable hardness testing in manufacturing, quality control, laboratories, and research facilities. Featuring automatic loading, dwell, and unloading of the test force, the TIME6101 eliminates operator influence during the testing cycle, delivering highly consistent Rockwell hardness measurements. Combining motorized operation with simple controls and excellent stability, it is an ideal solution for routine production inspection and laboratory material testing.
The TIME6101 Motorized Rockwell Hardness Tester performs Rockwell hardness testing using standard preliminary and major test forces of 60 kgf, 100 kgf, and 150 kgf. Furthermore, the automatic loading mechanism precisely controls the complete testing sequence, while the load-change handwheel enables quick selection of the required test force. Adjustable dwell times from 2 to 60 seconds allow the tester to meet different testing standards and material requirements. With a maximum specimen height of 185 mm and a throat depth of 165 mm, the instrument accommodates a wide variety of workpieces and test specimens.
Designed for Accurate Rockwell Hardness Testing
The automatic loading, dwell, and unloading system significantly reduces operator error compared with manual Rockwell hardness testers. In addition, the easy-to-read dial indicator with 0.5 HR resolution provides stable, repeatable, and highly accurate hardness measurements for routine production testing and laboratory inspection.
The TIME6101 Motorized Rockwell Hardness Tester is suitable for testing quenched steel, tempered steel, annealed steel, chilled cast iron, malleable cast iron, alloy steel, bearing steel, aluminium alloys, copper alloys, and many other metallic materials. Moreover, the instrument complies with ISO 6508, ASTM E18, and JIS Z2245 standards, ensuring internationally recognised Rockwell hardness testing performance. Supplied with diamond and ball indenters, certified Rockwell hardness blocks, multiple test tables, and complete accessories, the TIME6101 is ready for immediate installation and operation.
Key Features
- Professional motorized Rockwell hardness tester
- Automatic loading, dwell, and unloading of test force
- Standard Rockwell test forces: 60 kgf, 100 kgf, and 150 kgf
- Adjustable dwell time from 2 to 60 seconds
- Easy-to-read dial indicator with 0.5 HR resolution
- Maximum specimen height: 185 mm
- Throat depth: 165 mm
- Suitable for steel, cast iron, aluminium alloys, copper alloys, bearing steel, and other metals
- Supplied with diamond and ball indenters
- Includes certified Rockwell hardness test blocks and complete accessories
- Complies with ISO 6508, ASTM E18, and JIS Z2245
- Ideal for manufacturing, laboratories, quality control, and material testing
| General Information | |
| Category | Motorized Rockwell Hardness Tester |
| Model | TIME6101 |
| Manufacturer (OEM) | Beijing High Time Technology Co., Ltd. |
| Features | TIME®6101 Motorized Rockwell hardness tester adopts the mechanism of automatic loading and unloading of the test force, the test force is regulated by the load-change hand wheel. It can select the dwell time and is very easy to use. Besides setting zero to dial, there is no man-made error. The instrument has high sensitivity and stability. |
| Application | Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. |
| Technical Specification | |
| Initial test force | 98.07N (10kgf) |
| Total test force | 588.4N(60kgf), 980.7N(100kgf), 1471N(150kgf) |
| Loading method | Automatic (Loading/ Dwell/ Unloading) |
| Resolution | 0.5HR |
| Dwell time | 2-60 seconds |
| Max. height of specimen | 185 mm |
| Throat | 165mm |
| Power supply | 220-240 V~, 50Hz |
| Execute standard | ISO 6508, ASTM E-18, JIS Z2245 |
| Dimension (mm) | 525×210×700mm, Packing Dimension: 650×370×950mm |
| Weight (kg) | Net Weight: 78kg, Gross Weight: 100kg |
| Standard Delivery | |
| Main unit | 1 |
| Diamond rockwell indenter | 1 |
| ф1.588mm ball indenter | 1 |
| Test table (large, middle, V-shaped) | 1 |
| Standard rockwell hardness block | 3 |
| Fuse 2A | 2 |
| Power cable | 1 |
| Weight A, B, C | 1 |
| Level | 1 |
| Horizontal regulating screw | 4 |
| Inner hexagon spanner | 1 |
| Spanner | 1 |
| Anti-dust cover | 1 |
| Usage instruction manual | 1 |
